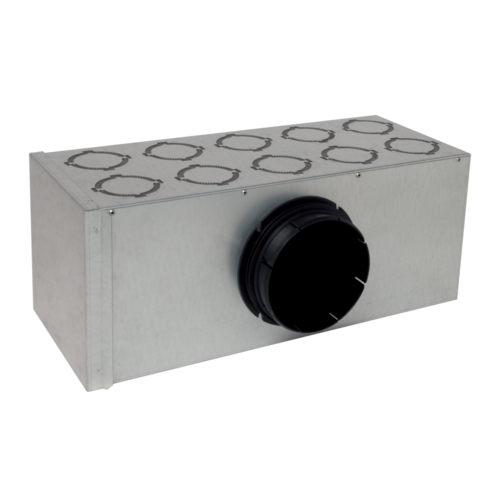

OPTIFLEX metal distribution units with circular connections can be used for both supply and exhaust air.
OPTIFLEX distribution unit
The OPTIFLEX metal distribution unit range comprises four units:
- for wall and ceiling installations: 1 unit with 16 connections and 1 unit with 20 connections depending on the size of the dwelling.
- for slab installations: 1 unit with 11 connections and 1 unit with 20 connections depending on the size of the dwelling.
All units have a removable hatch for unit maintenance and duct cleaning.
OPTIFLEX distribution units are made of sheet metal with no sharp edges and are soundproofed to class B.
- for wall and ceiling installations: 1 unit with 16 connections and 1 unit with 20 connections depending on the size of the dwelling.
- for slab installations: 1 unit with 11 connections and 1 unit with 20 connections depending on the size of the dwelling.
All units have a removable hatch for unit maintenance and duct cleaning.
OPTIFLEX distribution units are made of sheet metal with no sharp edges and are soundproofed to class B.
-
- Attachment brackets are supplied with each unit (2 brackets + screws for the 16-connection model and 4 brackets for the 20-connection model).
- Unused connections do not need to be plugged.
- The choice of D75 or D90 unit connections depends on the diameter of the duct to be connected.
- Easy maintenance with a maintenance hatch accessible without tools or adhesives.
| References | Insulation material |
|---|---|
| 11027170 - Metal unit OPTIFLEX® 10 circular branch connections with Ø 160-B inlet | |
| 11091986 - Metal unit 13P ∅160 | |
| 11091987 - Metal unit 20P ∅160 | |
| 11091881 - Distribution unit 5 branch connections | |
| 11027171 - Metal unit OPTIFLEX® 20 circular branch connections with Ø 160-B inlet | |
| 11027172 - OPTIFLEX® metal unit 10 connections for circular ducts with D160 inlet Floor | |
| 11027173 - OPTIFLEX® metal unit 20 connections for circular ducts with D160 inlet Floor | |
| 11027175 - OPTIFLEX® metal unit 16 connections for circular ducts with Ø160 160-B |
