The Sens CO2 sensor measures the level of CO2 precisely, to adapt the airflow to optimise indoor air quality and energy consumption
Sens CO2 sensor
Sens CO2 sensor

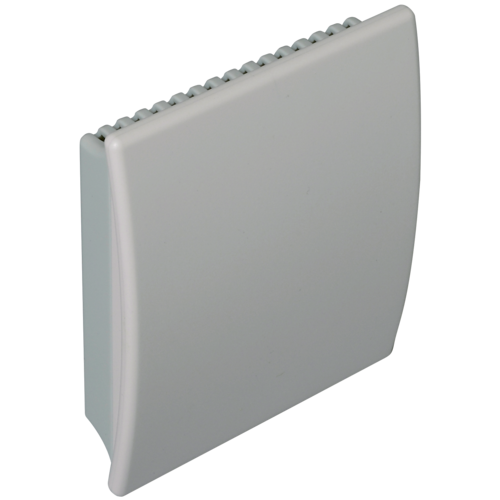

The Sens CO2 sensor measures CO2 levels and ambient temperature in a room. The concentration of CO2 is measured by absorption of infra red light. This CO2 measurement is not affected by dust or water vapour.
Sens CO2 sensor

The + products

  • especially suited to large-volume rooms,
  • compatible with all products with 0-10V input (VAV damper, fans, etc.).

The Sens CO2 sensor sends a 0-10V signal proportional to the CO2 level to directly control the fan speed controller (AHU or box fan) or to adapt the opening of a VAV type motorised damper.

  • CO2 sensor measurement range: 0 to 2000 ppm,
  • temperature measurement range: 0 to 50°C,
  • output signal: 0-10V,
  • power supply: 24 V.
  • installed on wall in room covered,

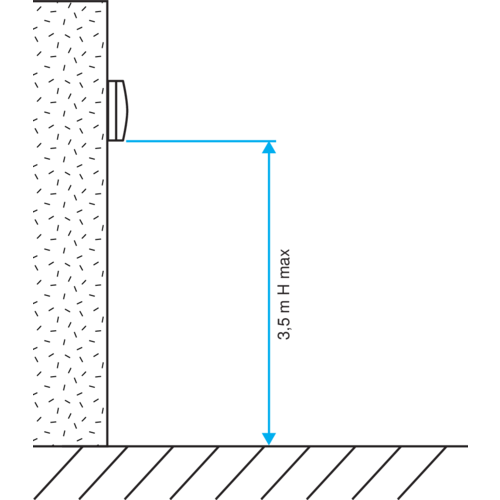

  • installation height on wall: from 1.5 to 3.5 m,

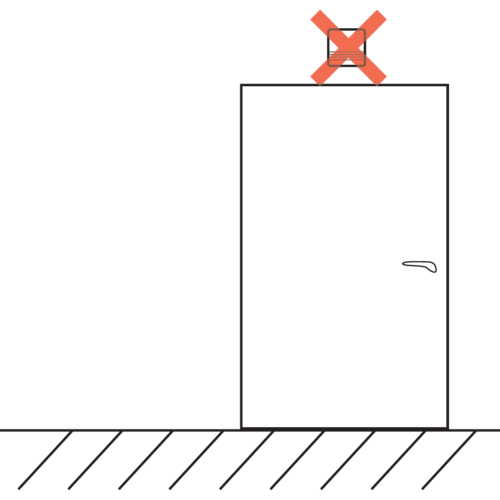

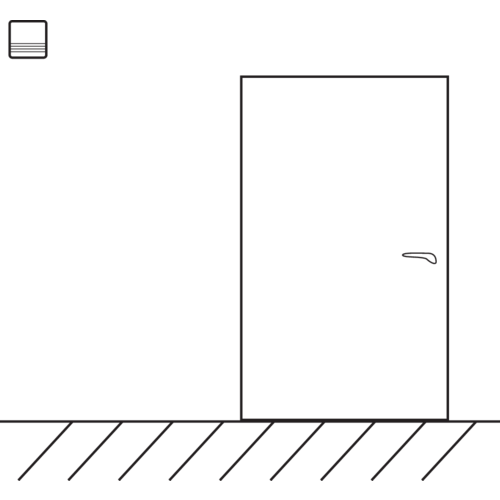

  • avoid air currents (doors, air supply, etc.) and dead zones (shelves, curtains, etc.),
  • avoid proximity of heat sources and occupants (radius of 1 to 2 m from a workstation).
References Sensor consumption (W) Measuring range (ppm) Response time (min) Self-calibration Insulation material
11017090 - Sens CO2 sensor

< 2.5

0-2000

< 9

Yes

11017180 - 230 V/24 V power supply for Sens CO2 sensor
Sens CO2 sensor
References Height (mm) Width (mm) Weight (kg) Depth (mm)
11017090 - Sens CO2 sensor

100

85

0,147

26

11017180 - 230 V/24 V power supply for Sens CO2 sensor

93

52,5

0,38

66

References Output signal Voltage (V)
11017090 - Sens CO2 sensor

0-10V

24

11017180 - 230 V/24 V power supply for Sens CO2 sensor

24

230

  • Technical Opinion no.  :  14.5/16-2185_V1
  • Eligibility for EEC  :  Yes
  • ESC data sheet no. 1  :  BAR-TH-125
  • ESC data sheet no. 2  :  BAT-TH-126

Products and accessories references

  • Sens CO2 sensor
    Sens CO2 sensor
    11017090
    605,00 (without VAT)
  • 230 V/24 V power supply for Sens CO2 sensor
    230 V/24 V power supply for Sens CO2 sensor
    11017180
    68,50 (without VAT)
