PressureWatch�
Measurement and connectivity
PressureWatch�
Measurement and connectivity
The universal solution for remote supervision of box fans. In case of malfunction, it emits automated and custom alerts (with configurable criteria and thresholds) to facilitate decisions on actions and to improve incident monitoring.
PressureWatch�

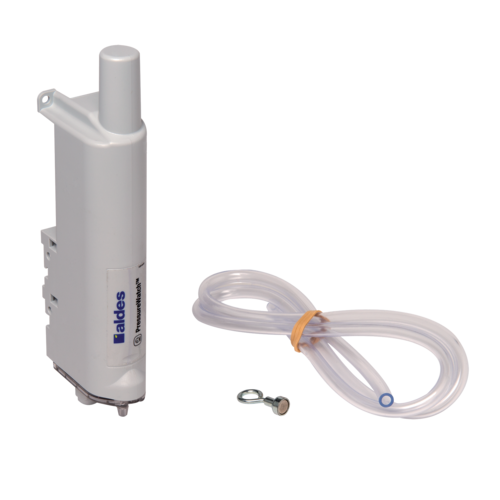

> The product is supplied with the following elements:
- Housing, fitted sole and PCB, FANSO ER18505 battery pack.
- 2 x CBLZ screws 3.5x19 mm, 2x Fischer SX5 plugs,
- 1 pressure tap silicon tube (1 m long),
- 1 activation magnet,
- 1 instruction guide,
> Measurement range: -500 / +500 Pa
> Measurement precision: +/- 30 Pa
> Measurement resolution: 1 Pa
- Housing, fitted sole and PCB, FANSO ER18505 battery pack.
- 2 x CBLZ screws 3.5x19 mm, 2x Fischer SX5 plugs,
- 1 pressure tap silicon tube (1 m long),
- 1 activation magnet,
- 1 instruction guide,
> Measurement range: -500 / +500 Pa
> Measurement precision: +/- 30 Pa
> Measurement resolution: 1 Pa

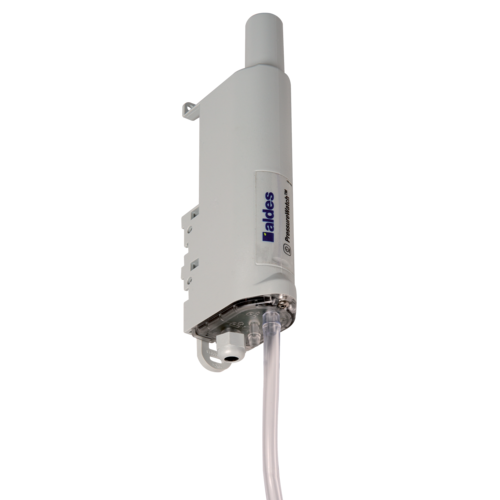

- The PressureWatch™ is a connected pressure sensor, ready to use, can be installed on any type of box fan or ventilation ducting to monitor and manage its operation. Automatic alerts are sent to identified users.
PressureWatch™ is battery-powered and measures either a pressure difference between inside a fan unit and the atmospheric pressure, or a pressure difference either side of a component (e.g. filter),
- This product meets user needs for remote monitoring of any ventilation system (especially EasyVEC® C4 Standard fan units),
- The product transmits data once per hour (24 frames every day), for storage in the Cloud and availability on the AldesConnect® Pro platform,
- The product must be registered on the AldesConnect® Pro platform,
- High and low level alert thresholds can be configured in the AldesConnect® Pro platform to ensure you are alerted if these levels are exceeded.
- The alerts log and all measurement data can be downloaded from the platform.
- The product is powered by an internal, changeable, connectorised battery pack.
- Compatible with all fan units and ventilation ducting,
- Customised automated alerts,
- Real-time display of status of equipment on the AldesConnect® Pro platform.
- Airtight,
- Complies with class C4 (independent power supply),
- Compatible with AldesConnect® Pro platform,
- Data export
- Install the sensor on the unit or duct using the fasteners supplied,
- Register the sensor on myAldes,
- Customise the alert thresholds for operation,
- Receive alerts immediately,
- Consult the operation of your systems.
- Subscription to the AldesConnect® Pro service is required.
| Insulation material |
|---|
| H (mm) | L (mm) | P (mm) |
|---|---|---|
| 200 |
63,5 |
34 |
