AldesConnect� Box Pro - EasyVEC modem Measurement and connectivity

AldesConnect� Box Pro - EasyVEC modem

Measurement and connectivity

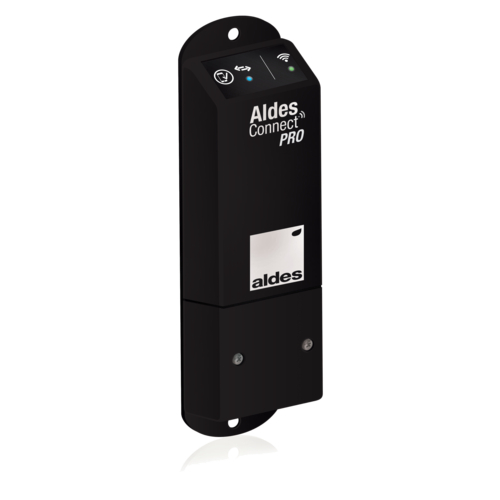

The AldesConnect® Box Pro is a long-distance modem that allows you to supervise EasyVEC® ventilation solutions remotely. In case of malfunction, it emits automated and custom alerts (with configurable criteria and thresholds) to facilitate decisions on actions and to improve incident monitoring.
AldesConnect� Box Pro - EasyVEC modem
The AldesConnect® Box Pro is an optional extra or accessory for EasyVEC®, a rapid and economical solution to remotely ensure that a CMEV system is operating correctly. The data for all connected equipment paired using AldesConnect® Box Pro or PressureWatch™ are available on the myaldes platform, to provide an overview and optimise maintenance tasks and operations.
It is designed for both indoor or outdoor use, with a direct installation on an EasyVEC® unit in the attic or on the roof.

The AldesConnect® Box Pro comes with a cable for connection to the PCB of the EasyVEC® Micro-watt unit to send measurement and operating data to the myaldes platform - AldesConnect® Pro. This platform provides an overview of the equipment fleet to aid in decision making and operational planning. Current data events are displayed and you can access the log for in-depth analysis if necessary.

The modem uses a secure long-distance communication protocol, no wireless internet or additional cables are required. It is powered by the EasyVEC® unit and no servicing is necessary.

  • Wireless modem for EasyVEC® Micro-watt (since April 2016),
  • Complies with C4 criterion on fire resistance,
  • Swift assembly on unit in less than 5 minutes,
  • Electrical power supply delivered by PCB on EasyVEC® unit,
  • IP44 protection rating.
  • Connection using quick connectors on the PCB of the EasyVEC® unit
  • Cable passed through cable gland
  • Modem screwed on to unit to hold in position.
Insulation material
H (mm) L (mm) P (mm)

160

50

30

Products and accessories references

  • Aldes ConnectPro® Box Pro
    Aldes ConnectPro® Box Pro
    11034920
    915,00 (without VAT)

Documents

Showing 1 - y of document
  • Installation instructions AldesConnect® Box Pro
    Manuals
    2 MB
