RPM shut-off damper

RPM shut-off damper

The RPM will shut off a system branch as soon as it receives a command signal to do to.
RPM shut-off damper
Download CAD Library file
RPM shut-off damper

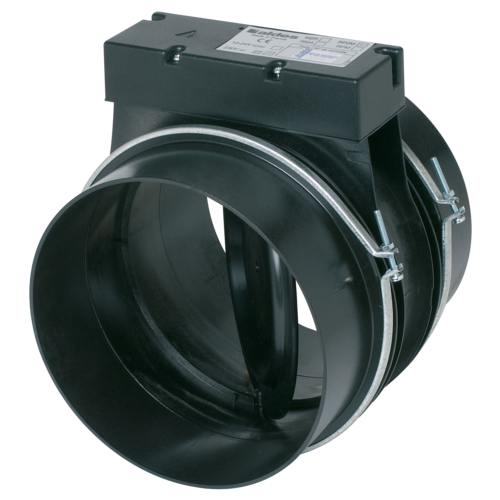

The RPM is a motorised plastic damper. If triggered by a timer switch, a clock or a BMS signal, a thermal actuator will close the flap to isolate a system branch.
RPM shut-off damper

The + products

  • Motorised ducting isolation solution, very easy to install.

The RPM damper will use a thermal actuator to close its flap, to isolate the circuit. Caution, this damper must not be activated for more than 24 h continuously.

  • Plastic body material, M1 fire certification,
  • Operating pressure P < 200 Pa.
  • installed directly between two circular ducts,
  • installation direction indicated on the RPM,
  • the RPM must not be activated for more than 24 hours continuously,
  • for connection with e.g. time delay switch ref. 11022008.
Insulation material
RPM shut-off damper RPM shut-off damper
References L (mm) Ø (mm) Weight (kg)
11093017 - RPM Ø 125 - 230V

145

125

0,628

11093018 - RPM Ø 125 - 12-24 V

145

125

0,628

11016061 - RPM Ø 200 - 230 V

210

200

1,2

11016062 - RPM Ø 200 12-24V

210

200

1,2

Pressure range (Pa)

< 200

References Frequency (Hz) Protection current (A) Power consumption Power supply Voltage (V)
11093017 - RPM Ø 125 - 230V

50/60

2

6

Single-phase

230

11093018 - RPM Ø 125 - 12-24 V

50/60

2

3

Single-phase

12/24

11016061 - RPM Ø 200 - 230 V

50/60

2

6

Single-phase

230

11016062 - RPM Ø 200 12-24V

50/60

2

3

Single-phase

12/24

Fire protection rating

M1

Products and accessories references

  • RPM Ø 125 - 230V
    RPM Ø 125 - 230V
    11093017
    165,00 (without VAT)
  • RPM Ø 125 - 12-24 V
    RPM Ø 125 - 12-24 V
    11093018
    161,16 (without VAT)
  • RPM Ø 200 - 230 V
    RPM Ø 200 - 230 V
    11016061
    193,00 (without VAT)
  • RPM Ø 200 12-24V
    RPM Ø 200 12-24V
    11016062
    188,70 (without VAT)
