RGE circular insulating damper

RGE circular insulating damper

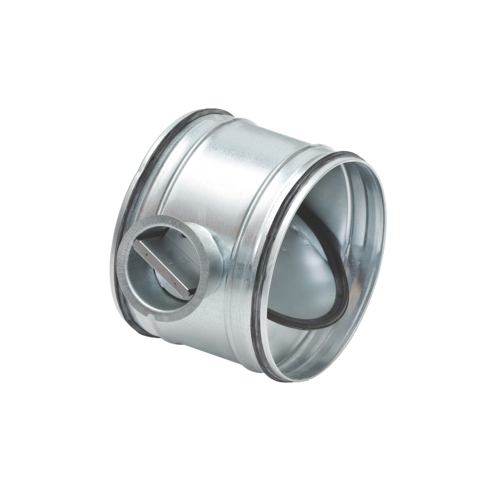

The RGE damper is used to manually balance and isolate a circular ducting system, while ensuring a very low leak rate.
RGE circular insulating damper
RGE circular insulating damper

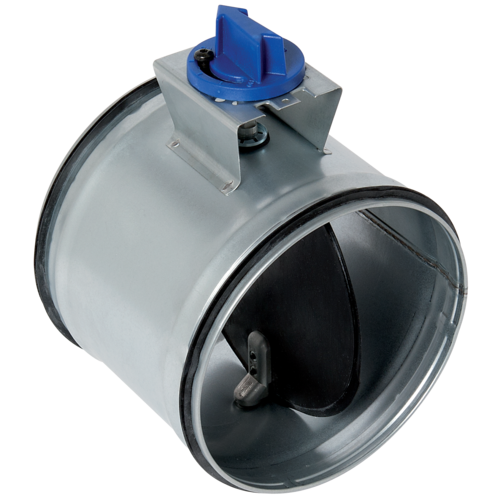

The sealed RGE manual damper balances airflow and isolates a circular ducting system. The manual RGE features a sealed disc to minimise air leaks between upstream and downstream of the damper in the closed position and double-lip airtight seals on each junction to minimise leaks with the rest of the system. Its top jumper enables overlaid insulation without covering the handle.
RGE circular insulating damper

The + products

  • class D airtight performance as per EN 1751.

The flap of the RGE manual damper is opened and closed by rotating a handle located on a jumper. If it is closed, the airtight seal is formed by the moulded seal on the disc.

  • galvanised steel,
  • airtight performance upstream/downstream of disc: class 3 (160 mm and below) and 4 (200 mm and above), as per EN 1751,
  • class D product airtight performance as per EN 12237,
  • temperature range up to 120 °C.
  • installed in circular ducts.
Insulation material
RGE circular insulating damper
References H (mm) L (mm) Ø (mm) Weight (kg)
11055210 - RGE Ø100 Manual

45

158

100

0,45

11055211 - RGE Ø125 Manual

45

158

125

0,56

11055212 - RGE Ø160 Manual

45

158

160

0,7

11055213 - RGE Ø200 Manual

45

158

200

0,9

11055214 - RGE Ø250 Manual

45

178

250

1,05

11055215 - RGE Ø315 Manual

45

178

315

1,7

References Airtightness class Upstream/downstream airtightness class
11055210 - RGE Ø100 Manual

D

3

11055211 - RGE Ø125 Manual

D

3

11055212 - RGE Ø160 Manual

D

3

11055213 - RGE Ø200 Manual

D

4

11055214 - RGE Ø250 Manual

D

4

11055215 - RGE Ø315 Manual

D

4

Products and accessories references

  • RGE Ø100 Manual
    RGE Ø100 Manual
    11055210
    48,10 (without VAT)
  • RGE Ø125 Manual
    RGE Ø125 Manual
    11055211
    53,40 (without VAT)
  • RGE Ø160 Manual
    RGE Ø160 Manual
    11055212
    60,40 (without VAT)
  • RGE Ø200 Manual
    RGE Ø200 Manual
    11055213
    64,40 (without VAT)
  • RGE Ø250 Manual
    RGE Ø250 Manual
    11055214
    76,90 (without VAT)
  • RGE Ø315 Manual
    RGE Ø315 Manual
    11055215
    84,90 (without VAT)

Documents

Showing 1 - y of document
  • Installation instructions Kit Platine de Motorisation Registre d'Equilibrage et d'Isolement RG/RGP/RGE
