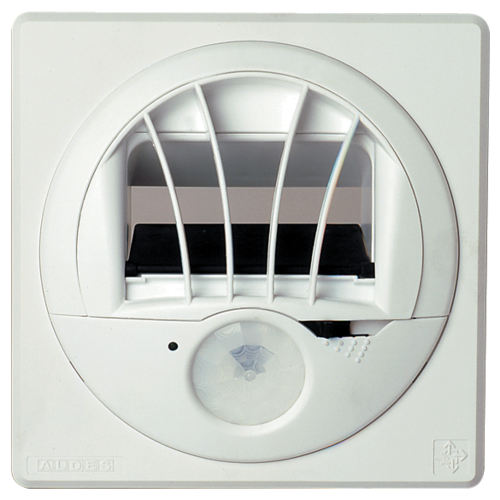

The TDA terminal is a small extract terminal with built-in presence sensor. The terminal operates at a minimum extract airflow or peak airflow depending on the signal received from the sensor. The terminal is white and blends seamlessly into the wall or ceiling.
TDA terminal

The + products

  • comfort, IAQ and energy savings due to automatic operation based on presence detection,
  • easy to install,
  • possible to control lighting.
  • made in France.

The TDA terminal features a built-in optical sensor. It can therefore switch automatically from minimum extract airflow to boost airflow if occupancy is detected, for better IAQ, increased comfort, and higher energy savings.

  • automatic regulation of airflow according to presence in the room,
  • slaved to presence: air renewed when room is occupied,
  • unslaved version for aesthetic homogeneity,
  • standard airflow: 7.5 m3/h at 100 Pa,
  • peak airflow adjustable by cursor: 25, 50, 75 or 90 m3/h at 100 Pa,

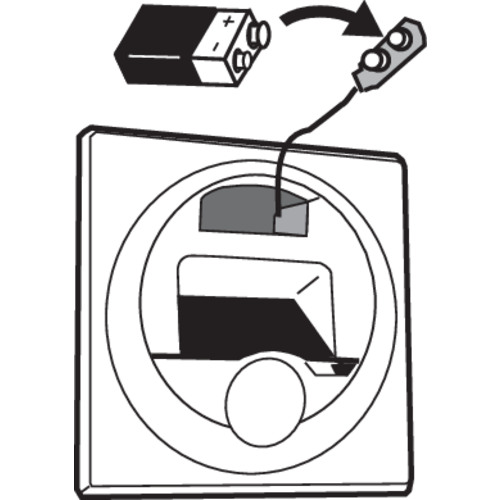

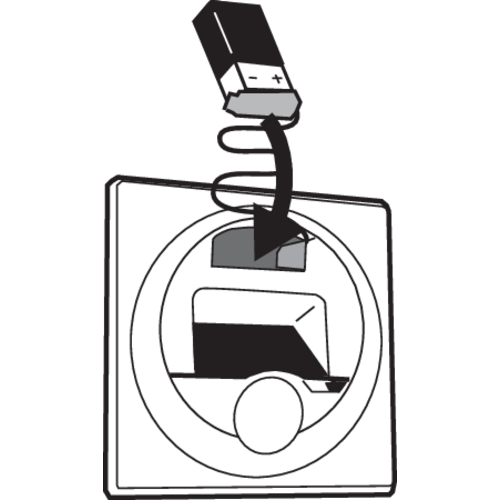

  • 6LR61 battery supplied.

The TDA remains at peak airflow for 20 min after the last detection of presence.

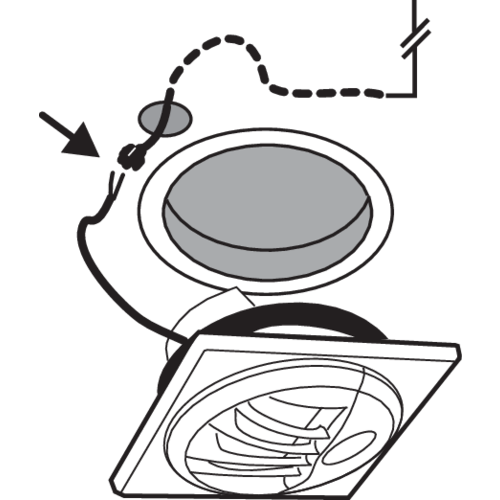

  • wall or ceiling attachment,
  • 1 TDA per ducting system branch,

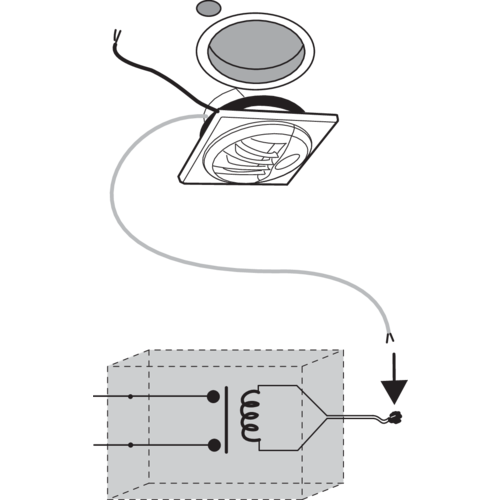

  • Specific version with reporting of occupancy data via a relay, for example to activate room lighting at the same time as the ventilation,
  • depending on versions:
    • mains power supply 12 V AC DC (accepts up to 5 TDA terminals),
    • 9V battery type 6LR61 supplied.
Insulation material Colour

Lagoon blue

TDA terminal

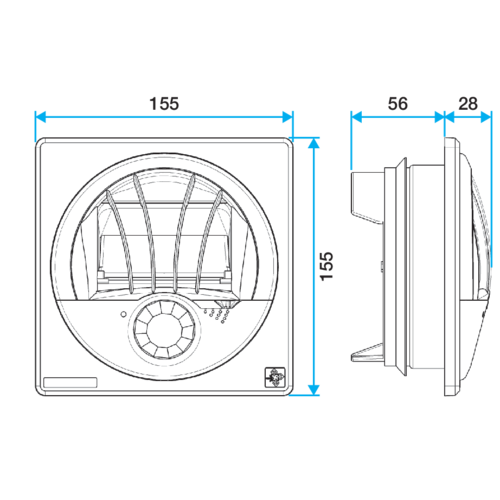

H (mm) L (mm) Ø connection (mm) Weight (kg)

155

155

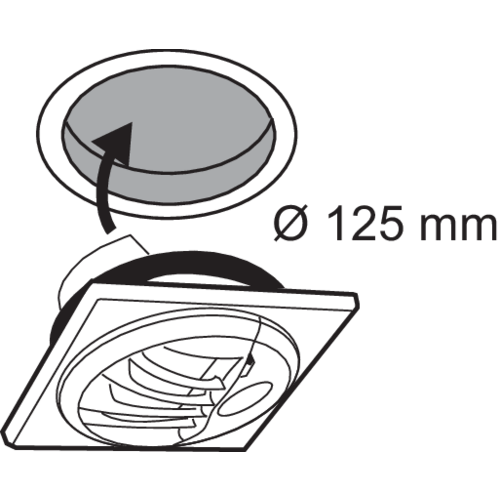

125

0,27

Other adjustable airflows (m³/h) Basic airflow (m³/h) Pressure range (Pa) Tolerance on airflow

25, 50, 75 or 90

7,5

100-160

15%

References Lw at Pa (dB(A))
11017105 - TDA battery

30-100 Pa - 25 m3/h

11017106 - TDA 12 VACDC

30-100 Pa -25 m3/h

11017107 - TDA fixed

30-100 Pa -25 m3/h

11017126 - TDA 12 VAC + connection to relay

30-100 Pa -25 m3/h

References Voltage (V)
11017105 - TDA battery
11017106 - TDA 12 VACDC

12

11017107 - TDA fixed
11017126 - TDA 12 VAC + connection to relay

12

  • Technical Opinion no.  :  14.5/16-2185
  • Eligibility for EEC  :  Yes
  • ESC data sheet no. 1  :  BAT-TH-125

Products and accessories references

  • TDA battery
    TDA battery
    11017105
    184,00 (without VAT)
  • TDA 12 VACDC
    TDA 12 VACDC
    11017106
    175,00 (without VAT)
  • TDA fixed
    TDA fixed
    11017107
    65,38 (without VAT)
  • TDA 12 VAC + connection to relay
    TDA 12 VAC + connection to relay
    11017126
    186,00 (without VAT)
