Standard VAV XVA Axial heat and smoke exhaust fan

Standard VAV XVA

Axial heat and smoke exhaust fan

The VAV enables precise airflow adjustment based on a signal whatever the pressure variation, to adapt the quantity of air to actual needs.
Standard VAV XVA
See references
Standard VAV XVA

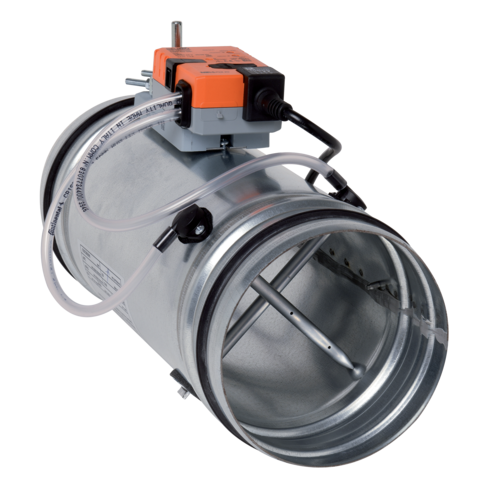

The VAV is an airflow controller which will adjust the airflow according to an external signal from a sensor, BMS, etc. Its integrated pressure sensors maintain the airflow specified by the signal whatever the pressure variations. The airflow is kept at the exact level required for greater comfort, IAQ and energy savings.

Based on a 0-10V or 2-10V signal, the VAV will adjust the airflow precisely over a wide airflow range, thanks to its built-in pressure taps. The minimum and maximum airflow settings can be adjusted on site using the Belimo app or the associated configuration tool.

  • directly installed between two circular ducts,
  • installed horizontally or vertically,
  • airflow direction indicated on component,
  • adjustment of min./max. airflow on site,
  • 24V AC power supply.
References Airflow accuracy
11017050 - VAV CIRCULAR XVA D125

5% (> 2m/s )
11017051 - VAV CIRCULAR XVA D160

5% (> 2m/s)
11017052 - VAV CIRCULAR XVA D200

5% ( > 2m/s )
11017053 - VAV CIRCULAR XVA D250

5% (> 2m/s )
11017054 - VAV CIRCULAR XVA D315

5% ( > 2 m/s )
11017055 - VAV CIRCULAR XVA D400

5% ( > 2 m/s)
11017056 - VAV CIRCULAR XVA D500

5% ( > 2m/s )
11017183 - VAV CIRCULAR XVA D125
11017184 - VAV CIRCULAR XVA D160
11017185 - VAV CIRCULAR XVA D200
11017186 - VAV CIRCULAR XVA D250
11017187 - VAV CIRCULAR XVA D315
11017189 - VAV CIRCULAR XVA D400
11017190 - VAV CIRCULAR XVA D500
11017211
References L (mm) Ø (mm) Ø external (mm) Weight (kg)
11017050 - VAV CIRCULAR XVA D125

400

125

122

2.5
11017051 - VAV CIRCULAR XVA D160

400

160

157

3
11017052 - VAV CIRCULAR XVA D200

400

200

197

3.5
11017053 - VAV CIRCULAR XVA D250

580

250

247

5
11017054 - VAV CIRCULAR XVA D315

580

315

312

6
11017055 - VAV CIRCULAR XVA D400

650

400

397

8
11017056 - VAV CIRCULAR XVA D500

850

500

497

12.5
11017183 - VAV CIRCULAR XVA D125

310

125

124

1.5
11017184 - VAV CIRCULAR XVA D160

400

160

159

2
11017185 - VAV CIRCULAR XVA D200

400

200

199

2,5
11017186 - VAV CIRCULAR XVA D250

400

250

249

3
11017187 - VAV CIRCULAR XVA D315

500

315

314

5
11017189 - VAV CIRCULAR XVA D400

630

400

399

6.5
11017190 - VAV CIRCULAR XVA D500

630

500

499

10
11017211

310

100



1,5
References Airflow (m³/h) Airflow range (m³/h) Pressure range (Pa)
11017050 - VAV CIRCULAR XVA D125

90-530

50-1000
11017051 - VAV CIRCULAR XVA D160

150-870

50-1000
11017052 - VAV CIRCULAR XVA D200

230-1360

50-1000
11017053 - VAV CIRCULAR XVA D250

350-2120

50-1000
11017054 - VAV CIRCULAR XVA D315

560-3365

50-1000
11017055 - VAV CIRCULAR XVA D400

900-5425

50-1000
11017056 - VAV CIRCULAR XVA D500

1400-8480

50-1000
11017183 - VAV CIRCULAR XVA D125

53-530


11017184 - VAV CIRCULAR XVA D160

87-870


11017185 - VAV CIRCULAR XVA D200

138-1380


11017186 - VAV CIRCULAR XVA D250

212-2120


11017187 - VAV CIRCULAR XVA D315

337-3370


11017189 - VAV CIRCULAR XVA D400

543-5430


11017190 - VAV CIRCULAR XVA D500

848-8480


11017211

34-340


References Frequency (Hz) Protection current (A) Power consumption Power supply Voltage (V)
11017050 - VAV CIRCULAR XVA D125

50/60

6

2.5

Single-phase

24
11017051 - VAV CIRCULAR XVA D160

50/60

6

4.5

Single-phase

24
11017052 - VAV CIRCULAR XVA D200

50/60

6

4.5

Single-phase

24
11017053 - VAV CIRCULAR XVA D250

50/60

6

4.5

Single-phase

24
11017054 - VAV CIRCULAR XVA D315

50/60

6

4.5

Single-phase

24
11017055 - VAV CIRCULAR XVA D400

50/60

6

4.5

Single-phase

24
11017056 - VAV CIRCULAR XVA D500

50/60

6

4.5

Single-phase

24
11017183 - VAV CIRCULAR XVA D125

IP54



Single-phase

24
11017184 - VAV CIRCULAR XVA D160

IP54



Single-phase

24
11017185 - VAV CIRCULAR XVA D200

IP54



Single-phase

24
11017186 - VAV CIRCULAR XVA D250

IP54



24
11017187 - VAV CIRCULAR XVA D315

IP54



Single-phase

24
11017189 - VAV CIRCULAR XVA D400

IP54



Single-phase

24
11017190 - VAV CIRCULAR XVA D500

IP54



Single-phase

24
11017211

IP54



24
References Fire protection rating
11017050 - VAV CIRCULAR XVA D125

A1
11017051 - VAV CIRCULAR XVA D160

A1
11017052 - VAV CIRCULAR XVA D200

A1
11017053 - VAV CIRCULAR XVA D250

A1
11017054 - VAV CIRCULAR XVA D315

A1
11017055 - VAV CIRCULAR XVA D400

A1
11017056 - VAV CIRCULAR XVA D500

A1
11017183 - VAV CIRCULAR XVA D125

A1
11017184 - VAV CIRCULAR XVA D160

A1
11017185 - VAV CIRCULAR XVA D200

A1
11017186 - VAV CIRCULAR XVA D250

A1
11017187 - VAV CIRCULAR XVA D315

A1
11017189 - VAV CIRCULAR XVA D400

A1
11017190 - VAV CIRCULAR XVA D500

A1
11017211

Products and accessories references

  • VAV CIRCULAR XVA D125
    VAV CIRCULAR XVA D125
    11017050
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
    • RM SMART access branch piece - Ø 125 mm
      RM SMART access branch piece - Ø 125 mm
      11093056
      111,00 € (without VAT)
  • VAV CIRCULAR XVA D160
    VAV CIRCULAR XVA D160
    11017051
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
    • RM SMART access branch piece - Ø 160 mm
      RM SMART access branch piece - Ø 160 mm
      11093057
      122,00 € (without VAT)
  • VAV CIRCULAR XVA D200
    VAV CIRCULAR XVA D200
    11017052
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
    • RM SMART access branch piece - Ø 200 mm
      RM SMART access branch piece - Ø 200 mm
      11093058
      142,00 € (without VAT)
  • VAV CIRCULAR XVA D250
    VAV CIRCULAR XVA D250
    11017053
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
    • RM SMART access branch piece - Ø 250 mm
      RM SMART access branch piece - Ø 250 mm
      11093059
      160,00 € (without VAT)
  • VAV CIRCULAR XVA D315
    VAV CIRCULAR XVA D315
    11017054
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
    • RM SMART access branch piece - Ø 315 mm
      RM SMART access branch piece - Ø 315 mm
      11093060
      193,00 € (without VAT)
  • VAV CIRCULAR XVA D400
    VAV CIRCULAR XVA D400
    11017055
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
  • VAV CIRCULAR XVA D500
    VAV CIRCULAR XVA D500
    11017056
    • Sens CO2 sensor
      Sens CO2 sensor
      11017090
      605,00 € (without VAT)
  • VAV CIRCULAR XVA D125
    VAV CIRCULAR XVA D125
    11017183
    774,00 € (without VAT)
  • VAV CIRCULAR XVA D160
    VAV CIRCULAR XVA D160
    11017184
    795,00 € (without VAT)
  • VAV CIRCULAR XVA D200
    VAV CIRCULAR XVA D200
    11017185
    836,00 € (without VAT)
  • VAV CIRCULAR XVA D250
    VAV CIRCULAR XVA D250
    11017186
    857,00 € (without VAT)
  • VAV CIRCULAR XVA D315
    VAV CIRCULAR XVA D315
    11017187
    899,00 € (without VAT)
  • VAV CIRCULAR XVA D400
    VAV CIRCULAR XVA D400
    11017189
    941,00 € (without VAT)
  • VAV CIRCULAR XVA D500
    VAV CIRCULAR XVA D500
    11017190
    1046,00 € (without VAT)
  • Aldes
    11017211
    686,00 € (without VAT)
