RMA Airflow control

RMA

Airflow control

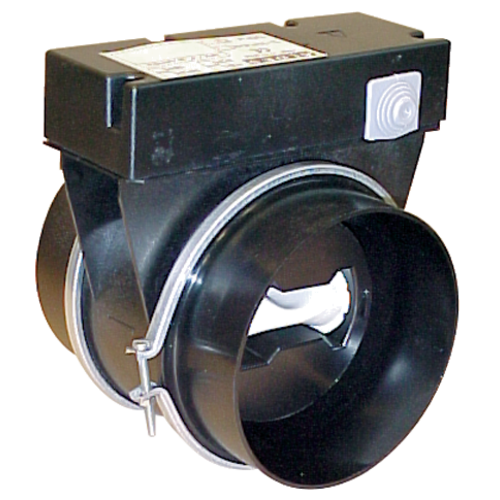

The RMA associated to an MR covers a peak air needs by switching from a minimum airflow to a maximum airflow and adapting to the conditions of the room.
RMA
Download CAD Library file
RMA
The RMA is associated with an MR to act as a dual-airflow controller to ensure stable airflow levels. When triggered by a switch, a clock or BMS signal, a thermal actuator will close the damper to pass from minimum airflow to maximum airflow and adapt to room occupancy to ensure good IAQ, high comfort and optimised energy consumption.
RMA

The + products

  • energy savings: dual-airflow solution to adapt to presence in room,
  • ready to install: no adjustments required,
  • low noise level.

The RMA damper contains an MR which enables stable control of the airflow. If the RMA is triggered, the damper opens to enable another MR located further away in the circuit to adapt in turn. In this way, the airflow is switched from low to high.

  • plastic body M1 fire protection rating,
  • silicone control membrane,
  • boost airflow activated by thermal piston,
  • airflow tolerance:
    • Q average = Q nominal +/- 5 m3/h for MR ≤ 50 m3/h,
    • Q average = Q nominal +/- 10% for MR > 50 m3/h,
  • possible to control boost airflow by adding an MR upstream,
  • base airflow set according to a pressure range between 50 and 250 Pa
  • operating temperatures: 0 / +50°C
  • Caution, must not be powered for more than 24 hours continuously.
  • directly installed between two circular ducts,
  • installation direction indicated on component,
  • 230 V power supply required,
  • the RMA must not be activated for more than 24 hours continuously,

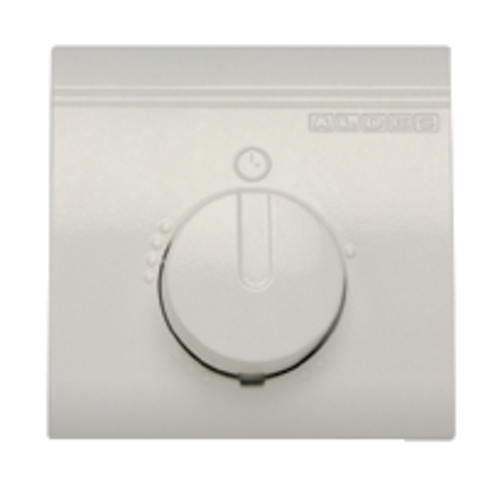

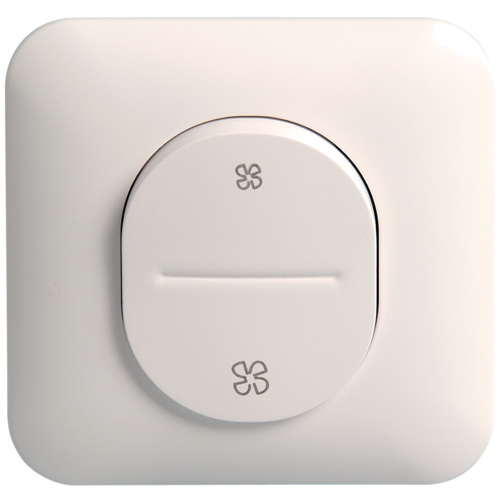

  • for connection with e.g. timer switch ref. 11022008
  • the RMA D200 + RCC enables a D125 or D160 connection (supplied with 2 RCC)
  • Note: the RMA must not be activated for more than 24 hours continuously
References Airflow accuracy Insulation material
11016068 - RMA D200 2-PISTON + RCC 230V
11016060 - RMA Ø 200 - 230 V

+/- 10 m³/h (? 100m³/h)+/-10% > 100 m³/h

11016064 - RMA Ø 200 + RCC air supply - 230 V

+/- 10 m³/h (? 100m³/h)+/-10% > 100 m³/h

11016057 - RMA Ø 125 - 15 m3/h 230 V

+/- 5 m³/h

11016467 - RMA Ø 125 - 90 m3/h 230 V

+/-10%

11016468 - RMA Ø 125 - 75 m3/h 230 V

+/-10%

11016469 - RMA Ø 125 - 60 m3/h 230 V

+/-10%

11016470 - RMA Ø 125 - 50 m3/h 230 V

+/- 5 m³/h

11016471 - RMA Ø 125 - 30 m3/h 230 V

+/- 5 m³/h

11016472 - RMA Ø 125 - 25 m3/h 230 V

+/- 5 m³/h

11016474 - RMA Ø 125 - 20 m3/h 230 V

+/- 5 m³/h

11016475 - RMA Ø 125 - 45 m3/h 230 V

+/- 5 m³/h

RMA RMA
References A (mm) E (mm) H (mm) L (mm) Ø B (mm) Rated Ø duct (mm) Weight (kg)
11016068 - RMA D200 2-PISTON + RCC 230V
11016060 - RMA Ø 200 - 230 V

170

65

254

210

216

200

0,8

11016064 - RMA Ø 200 + RCC air supply - 230 V

170

65

254

210

216

200

1,5

11016057 - RMA Ø 125 - 15 m3/h 230 V

170

65

180

145

133

125

0,69

11016467 - RMA Ø 125 - 90 m3/h 230 V

170

65

180

145

133

125

0,69

11016468 - RMA Ø 125 - 75 m3/h 230 V

170

65

180

145

133

125

0,69

11016469 - RMA Ø 125 - 60 m3/h 230 V

170

65

180

145

133

125

0,69

11016470 - RMA Ø 125 - 50 m3/h 230 V

170

65

180

145

133

125

0,69

11016471 - RMA Ø 125 - 30 m3/h 230 V

170

65

180

145

133

125

0,69

11016472 - RMA Ø 125 - 25 m3/h 230 V

170

65

180

145

133

125

0,69

11016474 - RMA Ø 125 - 20 m3/h 230 V

170

65

180

145

133

125

0,69

11016475 - RMA Ø 125 - 45 m3/h 230 V

170

65

180

145

133

125

0,69

References Airflow (m³/h) Airflow range (m³/h) Pressure range (Pa)
11016068 - RMA D200 2-PISTON + RCC 230V
11016060 - RMA Ø 200 - 230 V

15-240

50-250

11016064 - RMA Ø 200 + RCC air supply - 230 V

15-240

50-250

11016057 - RMA Ø 125 - 15 m3/h 230 V

15



50-250

11016467 - RMA Ø 125 - 90 m3/h 230 V

90



50-250

11016468 - RMA Ø 125 - 75 m3/h 230 V

75



50-250

11016469 - RMA Ø 125 - 60 m3/h 230 V

60



50-250

11016470 - RMA Ø 125 - 50 m3/h 230 V

50



50-250

11016471 - RMA Ø 125 - 30 m3/h 230 V

30



50-250

11016472 - RMA Ø 125 - 25 m3/h 230 V

25



50-250

11016474 - RMA Ø 125 - 20 m3/h 230 V

20



50-250

11016475 - RMA Ø 125 - 45 m3/h 230 V

45



50-250

References Fire protection rating
11016068 - RMA D200 2-PISTON + RCC 230V
11016060 - RMA Ø 200 - 230 V

M1

11016064 - RMA Ø 200 + RCC air supply - 230 V

M1

11016057 - RMA Ø 125 - 15 m3/h 230 V

M1

11016467 - RMA Ø 125 - 90 m3/h 230 V

M1

11016468 - RMA Ø 125 - 75 m3/h 230 V

M1

11016469 - RMA Ø 125 - 60 m3/h 230 V

M1

11016470 - RMA Ø 125 - 50 m3/h 230 V

M1

11016471 - RMA Ø 125 - 30 m3/h 230 V

M1

11016472 - RMA Ø 125 - 25 m3/h 230 V

M1

11016474 - RMA Ø 125 - 20 m3/h 230 V

M1

11016475 - RMA Ø 125 - 45 m3/h 230 V

M1

Products and accessories references

  •  RMA D200 2-PISTON + RCC 230V
    RMA D200 2-PISTON + RCC 230V
    11016068
    from 234,00 (without VAT)
  • RMA Ø 200 - 230 V
    RMA Ø 200 - 230 V
    11016060
    from 194,00 (without VAT)
  • RMA Ø 200 + RCC air supply - 230 V
    RMA Ø 200 + RCC air supply - 230 V
    11016064
    from 230,00 (without VAT)
  • RMA Ø 125 - 15 m3/h 230 V
    RMA Ø 125 - 15 m3/h 230 V
    11016057
    152,00 (without VAT)
  • RMA Ø 125 - 90 m3/h 230 V
    RMA Ø 125 - 90 m3/h 230 V
    11016467
    152,00 (without VAT)
  • RMA Ø 125 - 75 m3/h 230 V
    RMA Ø 125 - 75 m3/h 230 V
    11016468
    152,00 (without VAT)
  • RMA Ø 125 - 60 m3/h 230 V
    RMA Ø 125 - 60 m3/h 230 V
    11016469
    152,00 (without VAT)
  • RMA Ø 125 - 50 m3/h 230 V
    RMA Ø 125 - 50 m3/h 230 V
    11016470
    152,00 (without VAT)
  • RMA Ø 125 - 30 m3/h 230 V
    RMA Ø 125 - 30 m3/h 230 V
    11016471
    152,00 (without VAT)
  • RMA Ø 125 - 25 m3/h 230 V
    RMA Ø 125 - 25 m3/h 230 V
    11016472
    152,00 (without VAT)
  • RMA Ø 125 - 20 m3/h 230 V
    RMA Ø 125 - 20 m3/h 230 V
    11016474
    152,00 (without VAT)
  • RMA Ø 125 - 45 m3/h 230 V
    RMA Ø 125 - 45 m3/h 230 V
    11016475
    152,00 (without VAT)
