The MR Mono is an airflow regulator which ensures a stable high-pressure airflow to control IAQ, comfort and energy savings in a room.
MR Mono High Pressure
MR Mono High Pressure

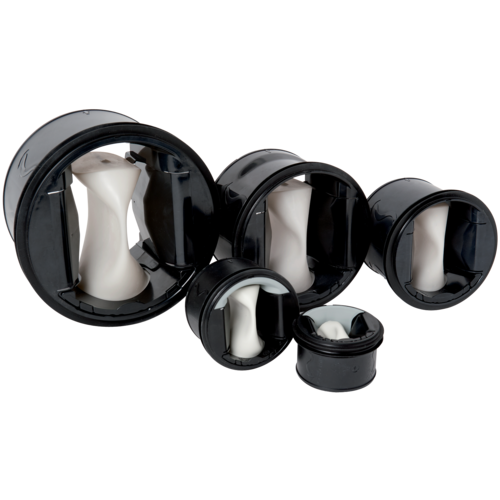

The MR Mono High Pressure is an airflow regulator which guarantees a stable airflow over a range of high pressures, to prevent over-consumption due to excess airflow, ensure good IAQ and a high level of comfort. its membrane technology ensures low noise levels.
MR Mono High Pressure

The + products

  • ideal for high pressure ducting: controls up to 650 Pa.
  • low noise level,
  • easy and fast to install: multiple positions (horizontal, vertical, any angle).
  • installed in branch connections,
  • contains no PVC,
  • maintenance-free,
  • made in France.

Using its membrane, the MR Mono High Pressure maintains a constant airflow in the air supply circuit or return circuit, over a range of high pressures, whatever the pressure variation within this range.

  • plastic body (M1 fire protection rating),
  • silicone control membrane,
  • support and airtight properties using double-lip elastomer seal,
  • operating pressure: 150-650 Pa,
  • tolerance in airflow over operating range: +/- 10 %,
  • operating temperatures: -10°C to +60°C
  • installed directly in the duct,
  • installation direction indicated on component,
  • horizontal or vertical installation at any angle,
  • reserve distance with a grille, T-piece or bend: 1D on extract and 3D on air supply.
Airflow accuracy

+/- 10%

MR Mono High Pressure
References A (mm) E (mm) F (mm) Ø B (mm) Ø N (mm) Rated Ø duct (mm) Weight (kg)
11016071 - MR Mono HP Ø 125 - 110 m3/h

97

14

4

132

116

125

0,2

11016072 - MR Mono HP Ø 125 - 150 m3/h

97

14

4

132

116

125

0,2

11016073 - MR Mono HP Ø 125 - 200 m3/h

97

14

4

132

116

125

0,2

11016074 - MR Mono HP Ø 125 - 240 m3/h

97

14

4

132

116

125

0,2

11016075 - MR Mono HP Ø 125 - 290 m3/h

97

14

4

132

116

125

0,2

11016076 - MR Mono HP Ø 150 - 210 m3/h

103

14

4

153

147

150

0,3

11016077 - MR Mono HP Ø 150 - 260 m3/h

103

14

4

153

147

150

0,3

11016078 - MR Mono HP Ø 150 - 310 m3/h

103

14

4

153

147

150

0,3

11016079 - MR Mono HP Ø 150 - 380 m3/h

103

14

4

153

147

150

0,3

11016080 - MR Mono HP Ø 150 - 425 m3/h

103

14

4

153

147

150

0,3

11016081 - MR Mono HP Ø 160 - 210 m3/h

103

14

4

167

153

160

0,3

11016082 - MR Mono HP Ø 160 - 260 m3/h

103

14

4

167

153

160

0,3

11016083 - MR Mono HP Ø 160 - 310 m3/h

103

14

4

167

153

160

0,3

11016084 - MR Mono HP Ø 160 - 380 m3/h

103

14

4

167

153

160

0,3

11016085 - MR Mono HP Ø 160 - 425 m3/h

103

14

4

167

153

160

0,3

11016086 - MR Mono HP Ø 200 - 350 m3/h

128

20

7

210

190

200

0,6

11016087 - MR Mono HP Ø 200 - 440 m3/h

128

20

7

210

190

200

0,6

11016088 - MR Mono HP Ø 200 - 530 m3/h

128

20

7

210

190

200

0,6

11016089 - MR Mono HP Ø 200 - 620 m3/h

128

20

7

210

190

200

0,6

11016090 - MR Mono HP Ø 200 - 700 m3/h

128

20

7

210

190

200

0,6

11016091 - MR Mono HP Ø 250 - 550 m3/h

159

20

5

262

238

250

1,06

11016092 - MR Mono HP Ø 250 - 600 m3/h

159

20

5

262

238

250

1,06

11016093 - MR Mono HP Ø 250 - 800 m3/h

159

20

5

262

238

250

1,06

11016094 - MR Mono HP Ø 250 - 950 m3/h

159

20

5

262

238

250

1,06

11016095 - MR Mono HP Ø 250 - 1000 m3/h

159

20

5

262

238

250

1,06

References Airflow (m³/h) Pressure range (Pa)
11016071 - MR Mono HP Ø 125 - 110 m3/h

110

150-650

11016072 - MR Mono HP Ø 125 - 150 m3/h

150

150-650

11016073 - MR Mono HP Ø 125 - 200 m3/h

200

150-650

11016074 - MR Mono HP Ø 125 - 240 m3/h

240

150-650

11016075 - MR Mono HP Ø 125 - 290 m3/h

290

150-650

11016076 - MR Mono HP Ø 150 - 210 m3/h

210

150-650

11016077 - MR Mono HP Ø 150 - 260 m3/h

260

150-650

11016078 - MR Mono HP Ø 150 - 310 m3/h

310

150-650

11016079 - MR Mono HP Ø 150 - 380 m3/h

390

150-650

11016080 - MR Mono HP Ø 150 - 425 m3/h

425

150-650

11016081 - MR Mono HP Ø 160 - 210 m3/h

210

150-650

11016082 - MR Mono HP Ø 160 - 260 m3/h

260

150-650

11016083 - MR Mono HP Ø 160 - 310 m3/h

310

150-650

11016084 - MR Mono HP Ø 160 - 380 m3/h

380

150-650

11016085 - MR Mono HP Ø 160 - 425 m3/h

425

150-650

11016086 - MR Mono HP Ø 200 - 350 m3/h

350

150-650

11016087 - MR Mono HP Ø 200 - 440 m3/h

440

150-650

11016088 - MR Mono HP Ø 200 - 530 m3/h

530

150-650

11016089 - MR Mono HP Ø 200 - 620 m3/h

620

150-650

11016090 - MR Mono HP Ø 200 - 700 m3/h

700

150-650

11016091 - MR Mono HP Ø 250 - 550 m3/h

550

150-650

11016092 - MR Mono HP Ø 250 - 600 m3/h

600

150-650

11016093 - MR Mono HP Ø 250 - 800 m3/h

800

150-650

11016094 - MR Mono HP Ø 250 - 950 m3/h

950

150-650

11016095 - MR Mono HP Ø 250 - 1000 m3/h

1000

150-650

Fire protection rating

M1

Products and accessories references

  • MR Mono HP Ø 125 - 110 m3/h
    MR Mono HP Ø 125 - 110 m3/h
    11016071
    49,10 (without VAT)
  • MR Mono HP Ø 125 - 150 m3/h
    MR Mono HP Ø 125 - 150 m3/h
    11016072
    49,10 (without VAT)
  • MR Mono HP Ø 125 - 200 m3/h
    MR Mono HP Ø 125 - 200 m3/h
    11016073
    49,10 (without VAT)
  • MR Mono HP Ø 125 - 240 m3/h
    MR Mono HP Ø 125 - 240 m3/h
    11016074
    49,10 (without VAT)
  • MR Mono HP Ø 125 - 290 m3/h
    MR Mono HP Ø 125 - 290 m3/h
    11016075
    49,10 (without VAT)
  • MR Mono HP Ø 150 - 210 m3/h
    MR Mono HP Ø 150 - 210 m3/h
    11016076
    68,80 (without VAT)
  • MR Mono HP Ø 150 - 260 m3/h
    MR Mono HP Ø 150 - 260 m3/h
    11016077
    68,80 (without VAT)
  • MR Mono HP Ø 150 - 310 m3/h
    MR Mono HP Ø 150 - 310 m3/h
    11016078
    68,80 (without VAT)
  • MR Mono HP Ø 150 - 380 m3/h
    MR Mono HP Ø 150 - 380 m3/h
    11016079
    68,80 (without VAT)
  • MR Mono HP Ø 150 - 425 m3/h
    MR Mono HP Ø 150 - 425 m3/h
    11016080
    68,80 (without VAT)
  • MR Mono HP Ø 160 - 210 m3/h
    MR Mono HP Ø 160 - 210 m3/h
    11016081
    68,80 (without VAT)
  • MR Mono HP Ø 160 - 260 m3/h
    MR Mono HP Ø 160 - 260 m3/h
    11016082
    68,80 (without VAT)
  • MR Mono HP Ø 160 - 310 m3/h
    MR Mono HP Ø 160 - 310 m3/h
    11016083
    68,80 (without VAT)
  • MR Mono HP Ø 160 - 380 m3/h
    MR Mono HP Ø 160 - 380 m3/h
    11016084
    68,80 (without VAT)
  • MR Mono HP Ø 160 - 425 m3/h
    MR Mono HP Ø 160 - 425 m3/h
    11016085
    68,80 (without VAT)
  • MR Mono HP Ø 200 - 350 m3/h
    MR Mono HP Ø 200 - 350 m3/h
    11016086
    99,90 (without VAT)
  • MR Mono HP Ø 200 - 440 m3/h
    MR Mono HP Ø 200 - 440 m3/h
    11016087
    99,90 (without VAT)
  • MR Mono HP Ø 200 - 530 m3/h
    MR Mono HP Ø 200 - 530 m3/h
    11016088
    99,90 (without VAT)
  • MR Mono HP Ø 200 - 620 m3/h
    MR Mono HP Ø 200 - 620 m3/h
    11016089
    99,90 (without VAT)
  • MR Mono HP Ø 200 - 700 m3/h
    MR Mono HP Ø 200 - 700 m3/h
    11016090
    99,90 (without VAT)
  • MR Mono HP Ø 250 - 550 m3/h
    MR Mono HP Ø 250 - 550 m3/h
    11016091
    137,00 (without VAT)
  • MR Mono HP Ø 250 - 600 m3/h
    MR Mono HP Ø 250 - 600 m3/h
    11016092
    137,00 (without VAT)
  • MR Mono HP Ø 250 - 800 m3/h
    MR Mono HP Ø 250 - 800 m3/h
    11016093
    137,00 (without VAT)
  • MR Mono HP Ø 250 - 950 m3/h
    MR Mono HP Ø 250 - 950 m3/h
    11016094
    137,00 (without VAT)
  • MR Mono HP Ø 250 - 1000 m3/h
    MR Mono HP Ø 250 - 1000 m3/h
    11016095
    137,00 (without VAT)
