RGP circular balancing damper with seals Airflow balancing

RGP circular balancing damper with seals

Airflow balancing

The RGP sealed damper precisely balances a circular ducting system. The sealed models also ensure a very low leak rate.
RGP circular balancing damper with seals
RGP circular balancing damper with seals
The RGP and sealed RGP damper finely balance airflow in a circular ducting system. They are fitted with a jumper enabling overlaid insulation without covering the handle.
RGP circular balancing damper with seals

The + products

  • fine airflow adjustment.

The flap of the sealed RGP damper is opened and closed by rotating a handle located on a jumper. It contains a slotted or reduced internal disc for finer adjustment of airflow.

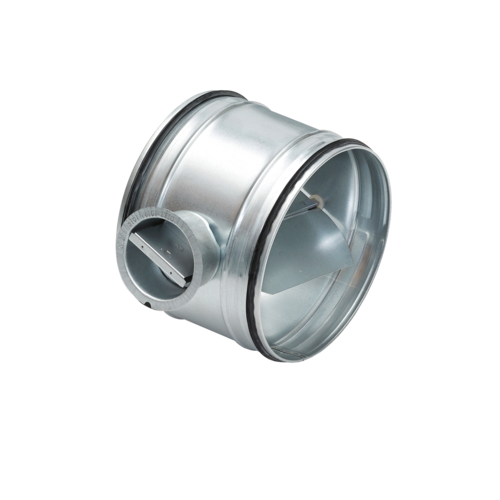

  • up to and including diameter 315 mm:
    • metal handle,
    • reduced inner disc,
    • supplied with seals (class D airtight performance as per EN 1751),

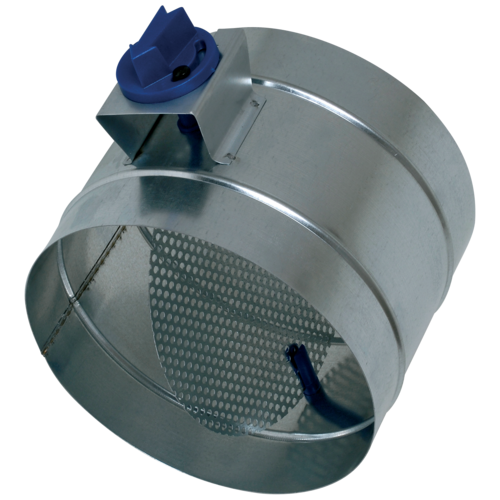

  • starting at diameter 355 mm:
    • plastic handle
    • slotted disc with 46% free air passage,
    • supplied without seals,
  • galvanised steel,
  • can be motorised upwards of diameter 355 mm using motor plate kit (11055122).
  • installed in circular ducts.
Insulation material
RGP circular balancing damper with seals RGP circular balancing damper with seals
References H (mm) L (mm) Ø (mm) Weight (kg)
11094581 - RGP GALVA - D125

45

158

125

0,527

11094582 - RGP GALVA - D160

45

158

160

0,656

11094583 - RGP GALVA - D200

45

158

200

0,8

11094584 - RGP GALVA - D250

45

178

250

1,003

11094585 - RGP GALVA - D315

45

178

315

1,302

11094586 - RGP GALVA - D355

85

200

355

3

11094587 - RGP GALVA - D400

85

200

400

4

11094588 - RGP GALVA - D450

85

200

450

5

11094589 - RGP GALVA - D500

85

200

500

5,5

11094590 - RGP GALVA - D560

85

200

560

6,5

11094591 - RGP GALVA - D630

85

200

630

8

References Airtightness class
11094581 - RGP GALVA - D125

D

11094582 - RGP GALVA - D160

D

11094583 - RGP GALVA - D200

D

11094584 - RGP GALVA - D250

D

11094585 - RGP GALVA - D315

D

11094586 - RGP GALVA - D355

C

11094587 - RGP GALVA - D400

C

11094588 - RGP GALVA - D450

C

11094589 - RGP GALVA - D500

C

11094590 - RGP GALVA - D560

C

11094591 - RGP GALVA - D630

C

Products and accessories references

  • RGP GALVA - D125
    RGP GALVA - D125
    11094581
    40,90 (without VAT)
  • RGP GALVA - D160
    RGP GALVA - D160
    11094582
    47,70 (without VAT)
  • RGP GALVA - D200
    RGP GALVA - D200
    11094583
    51,90 (without VAT)
  • RGP GALVA - D250
    RGP GALVA - D250
    11094584
    70,60 (without VAT)
  • RGP GALVA - D315
    RGP GALVA - D315
    11094585
    97,40 (without VAT)
  • RGP GALVA - D355
    RGP GALVA - D355
    11094586
    178,00 (without VAT)
  • RGP GALVA - D400
    RGP GALVA - D400
    11094587
    192,00 (without VAT)
  • RGP GALVA - D450
    RGP GALVA - D450
    11094588
    211,00 (without VAT)
  • RGP GALVA - D500
    RGP GALVA - D500
    11094589
    253,00 (without VAT)
  • RGP GALVA - D560
    RGP GALVA - D560
    11094590
    269,00 (without VAT)
  • RGP GALVA - D630
    RGP GALVA - D630
    11094591
    278,00 (without VAT)

Documents

Showing 1 - y of document
  • Installation instructions Kit Platine de Motorisation Registre d'Equilibrage et d'Isolement RG/RGP/RGE
    Manuals
    365 KB
