RG circular balancing damper Airflow balancing

RG circular balancing damper

Airflow balancing

The RG damper balances airflow in a circular ducting system.
RG circular balancing damper
Download CAD Library file
RG circular balancing damper

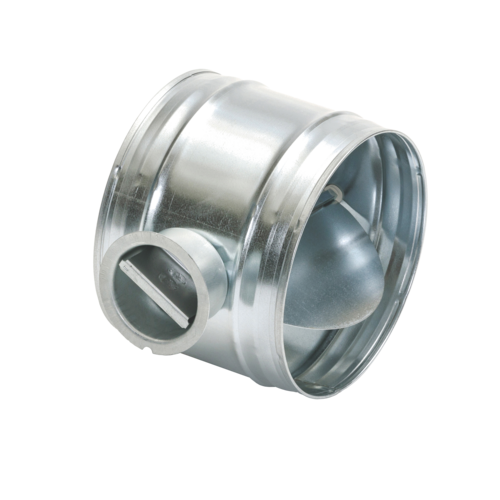

The RG damper balances airflow in a circular ducting system. It is fitted with a top jumper enabling remote insulation without covering the handle.
RG circular balancing damper

The + products

  • can be motorised upwards of diameter 355 mm.

The flap of the RG is opened and closed by rotating a handle located on a jumper.

  • galvanised steel,
  • metal handle,
  • can be motorised upwards of diameter 355 mm using motor plate kit ordered separately.
  • installed in circular ducts.
Insulation material
RG circular balancing damper
References H (mm) L (mm) Ø (mm) Weight (kg)
11094446 - RG GALVA - D355

80

216

355

2,05

11094447 - RG GALVA - D400

80

216

400

2,82

11094448 - RG GALVA - D450

80

216

450

3,28

11094449 - RG GALVA - D500

80

216

500

3,77

11094450 - RG GALVA - D560

80

216

560

4,40

11094451 - RG GALVA - D630

80

216

630

5,19

11094439 - RG GALVA - D80

75

200

80

0,40

11094440 - RG GALVA - D100

75

200

100

0,45

11094441 - RG GALVA - D125

70

200

125

0,65

11094442 - RG GALVA - D160

70

200

160

0,80

11094443 - RG GALVA - D200

70

200

200

1,00

11094444 - RG GALVA - D250

70

200

250

1,25

11094445 - RG GALVA - D315

70

216

315

1,60

Products and accessories references

  • RG GALVA - D355
    RG GALVA - D355
    11094446
    132,00 (without VAT)
  • RG GALVA - D400
    RG GALVA - D400
    11094447
    149,00 (without VAT)
  • RG GALVA - D450
    RG GALVA - D450
    11094448
    187,00 (without VAT)
  • RG GALVA - D500
    RG GALVA - D500
    11094449
    208,00 (without VAT)
  • RG GALVA - D560
    RG GALVA - D560
    11094450
    224,00 (without VAT)
  • RG GALVA - D630
    RG GALVA - D630
    11094451
    244,00 (without VAT)
  • RG GALVA - D80
    RG GALVA - D80
    11094439
    33,40 (without VAT)
  • RG GALVA - D100
    RG GALVA - D100
    11094440
    28,60 (without VAT)
  • RG GALVA - D125
    RG GALVA - D125
    11094441
    30,50 (without VAT)
  • RG GALVA - D160
    RG GALVA - D160
    11094442
    35,90 (without VAT)
  • RG GALVA - D200
    RG GALVA - D200
    11094443
    36,90 (without VAT)
  • RG GALVA - D250
    RG GALVA - D250
    11094444
    44,90 (without VAT)
  • RG GALVA - D315
    RG GALVA - D315
    11094445
    60,40 (without VAT)

Documents

Showing 1 - y of document
  • Installation instructions Kit Platine de Motorisation Registre d'Equilibrage et d'Isolement RG/RGP/RGE
    Manuals
    365 KB

1 software
