InspirAIR� Top Premium
Heat recovery ventilation unit
InspirAIR� Top Premium
Heat recovery ventilation unit
The connected heat recovery ventilation solution that efficiently filters out the smallest pollutants and adapts to your needs.
InspirAIR� Top Premium
Connected heat recovery ventilation solution for efficient elimination of the smallest pollutants, adapts to user requirements.
The + products
- for air quality: high performance filtration and customised filter recommendations,
- for performance: a complete system offering with thermal and electrical performance benchmarks in the market,
- for connectivity: a complete user experience with AldesConnect®.

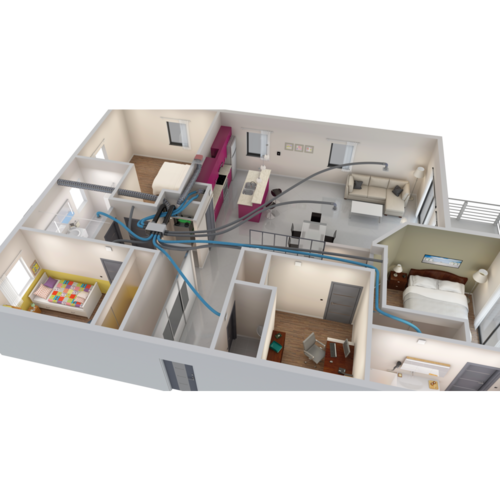

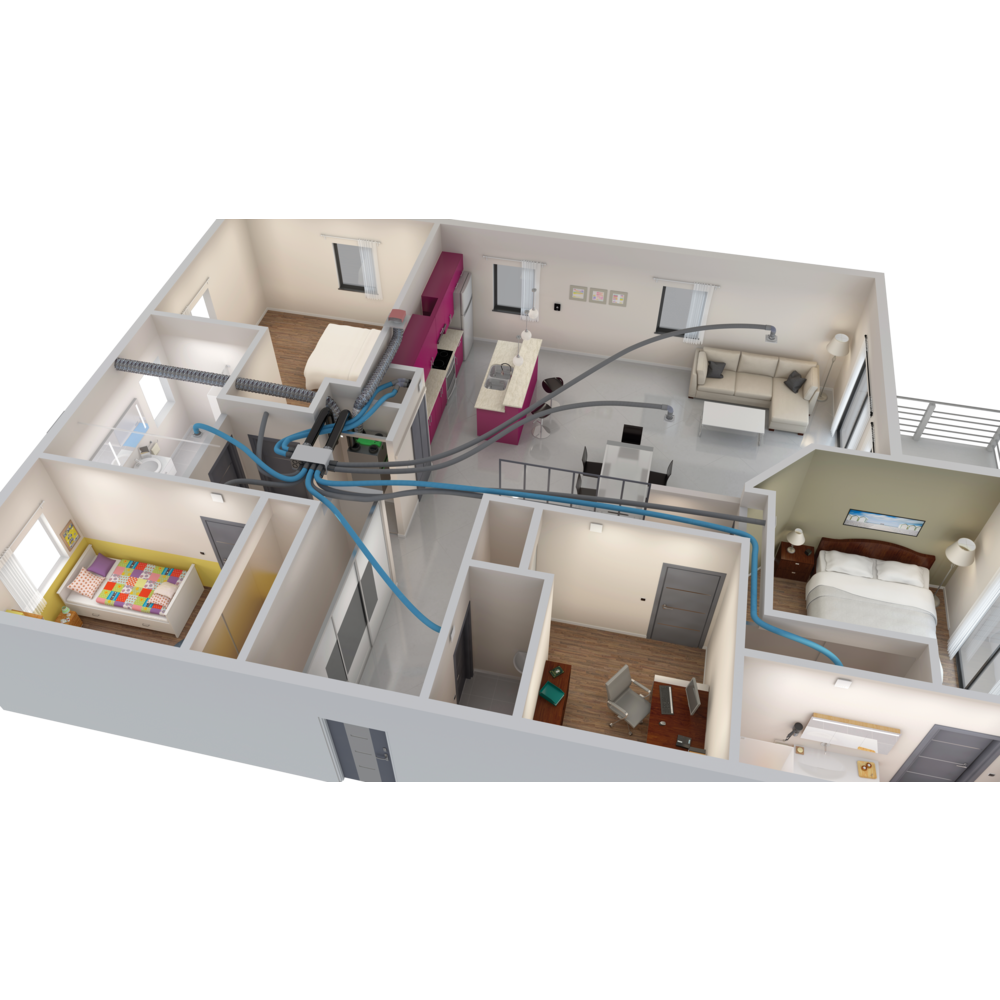

General and permanent ventilation of dwelling with heat recovery on exhaust air to pre-heat incoming air.
This air is purified by custom filters that ensure healthy air in the dwelling.
-

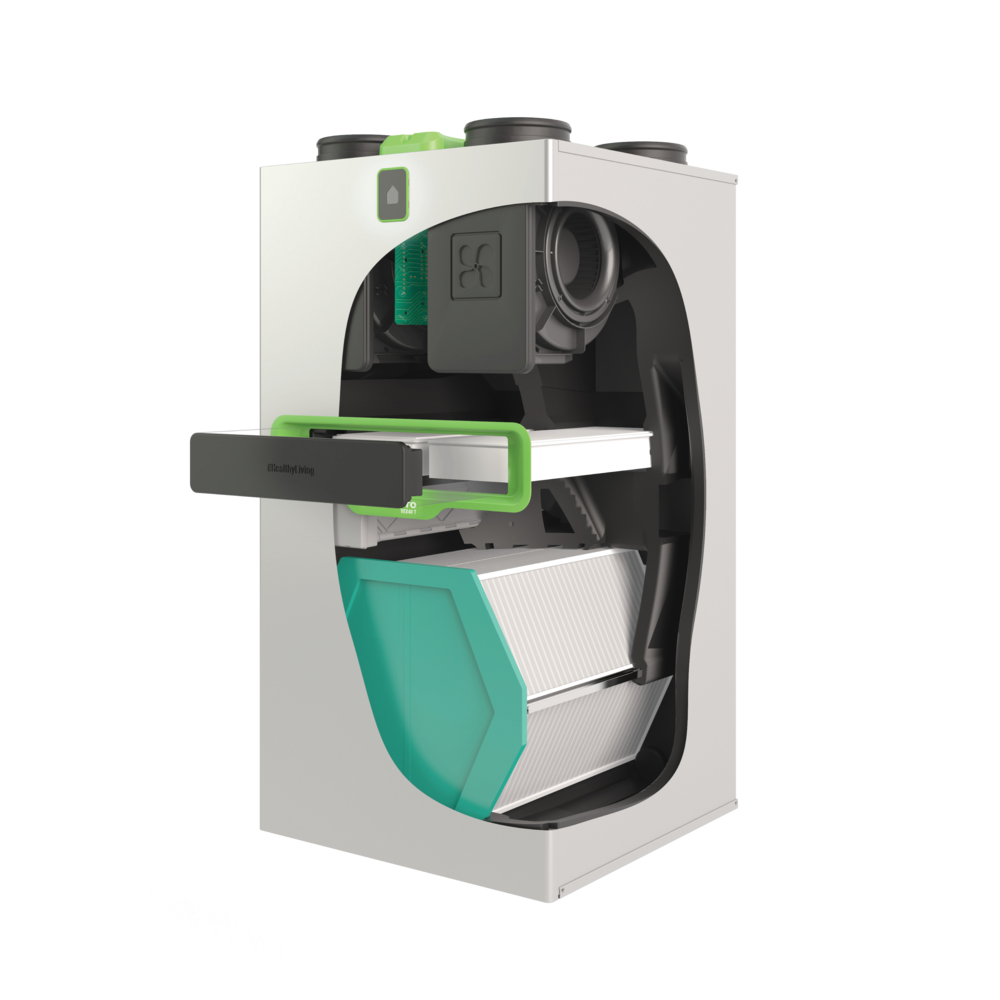

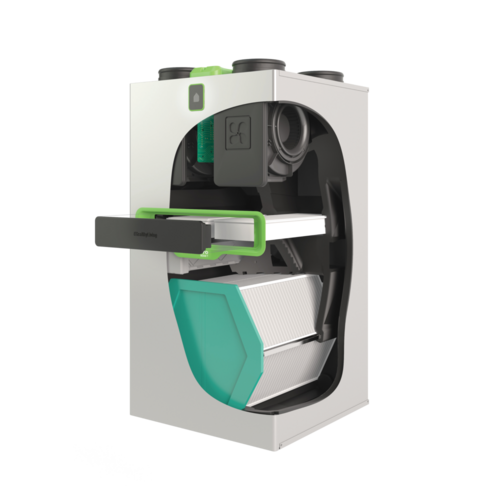

material:
- PPE body and metal panels,
-
configuration:
- 4 x Ø 160 mm connections on top of machine,
-
two airflow settings:
- 300 m3/h,
- 450 m3/h.
-
compact dimensions:
- 560 x 560 x 1088 mm,
- condition indicator light,

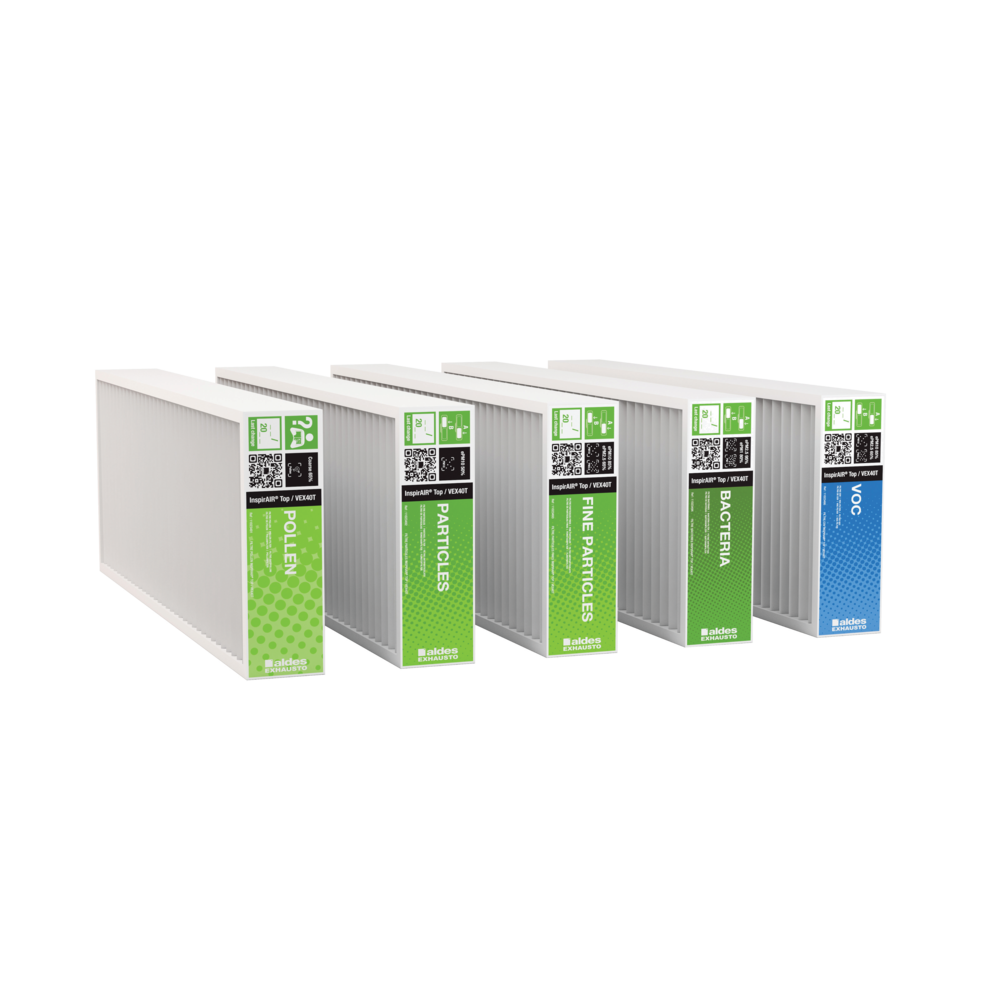

- personalised filter recommendations,
- exclusive radon mode,
- model available with enthalpy heat exchanger.
- cradle attachment or with attachment feet (sold as accessories),
- easy to reverse airflows,
- mandatory condensate connections using the drain kit sold as an accessory (except for kit references)

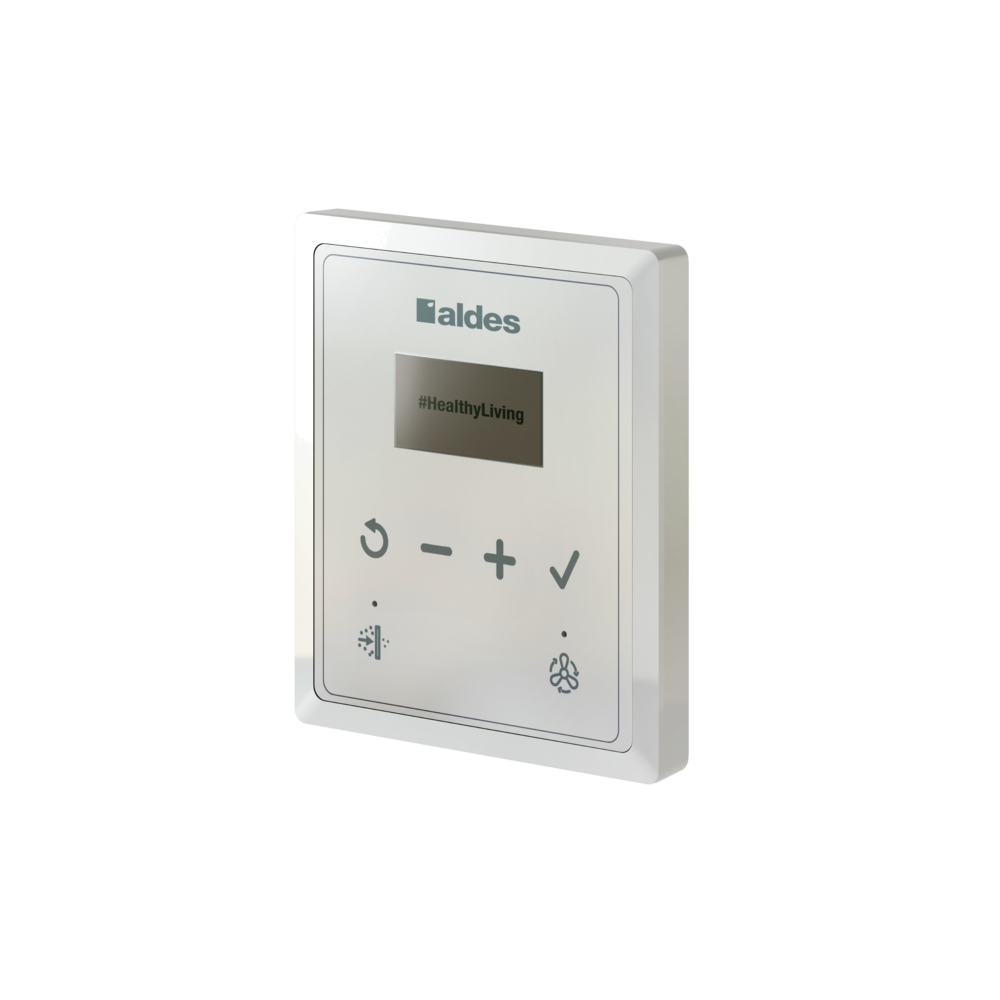

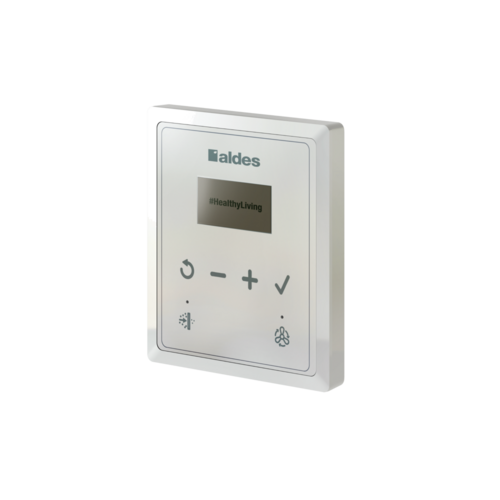

- start-up and adjustment using the InspirAIR wired remote control supplied (except for kit references)
- compact dimensions for easy integration in a standard cupboard.
| References | Available filters | Insulation material | Type of exchanger | Type of motor |
|---|---|---|---|---|
| 11027108 - InspirAIR® Top 300 Premium kit |
|
EC |
||
| 11027109 - InspirAIR® Top 450 Premium kit |
|
EC |
||
| 11023474 - InspirAIR® Top 300 Premium |
|
Sensitive |
EC |
|
| 11023476 - InspirAIR® Top 450 Premium |
|
Sensitive |
EC |
|
| 11023477 - InspirAIR® Top 300 ERV Premium |
|
Enthalpy |
EC |
|
| 11023478 - InspirAIR® Top 450 ERV Premium |
|
Enthalpy |
EC |
| References | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | L (mm) | P (mm) | Rated Ø duct (mm) | Weight (kg) | Empty weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11027108 - InspirAIR® Top 300 Premium kit | 560 |
560 |
1045 |
1088 |
160 |
320 |
294 |
323 |
560 |
560 |
560 |
160 |
41 |
41 |
| 11027109 - InspirAIR® Top 450 Premium kit | 560 |
560 |
1045 |
1088 |
160 |
320 |
294 |
323 |
560 |
560 |
560 |
160 |
41 |
41 |
| 11023474 - InspirAIR® Top 300 Premium | 560 |
560 |
1045 |
1088 |
160 |
320 |
294 |
323 |
560 |
41 |
||||
| 11023476 - InspirAIR® Top 450 Premium | 560 |
560 |
1045 |
1088 |
160 |
320 |
294 |
323 |
560 |
41 |
||||
| 11023477 - InspirAIR® Top 300 ERV Premium | 560 |
560 |
1045 |
1088 |
160 |
320 |
294 |
323 |
560 |
41 |
||||
| 11023478 - InspirAIR® Top 450 ERV Premium | 560 |
560 |
1045 |
1088 |
160 |
320 |
294 |
323 |
560 |
41 |
| References | Airflow at max. speed (m³/h) |
|---|---|
| 11027108 - InspirAIR® Top 300 Premium kit | 300 |
| 11027109 - InspirAIR® Top 450 Premium kit | 450 |
| 11023474 - InspirAIR® Top 300 Premium | 300 |
| 11023476 - InspirAIR® Top 450 Premium | 450 |
| 11023477 - InspirAIR® Top 300 ERV Premium | 300 |
| 11023478 - InspirAIR® Top 450 ERV Premium | 450 |
| References | Exchanger performance (%) |
|---|---|
| 11027108 - InspirAIR® Top 300 Premium kit | 96 |
| 11027109 - InspirAIR® Top 450 Premium kit | 94 |
| 11023474 - InspirAIR® Top 300 Premium | |
| 11023476 - InspirAIR® Top 450 Premium | |
| 11023477 - InspirAIR® Top 300 ERV Premium | |
| 11023478 - InspirAIR® Top 450 ERV Premium |
| References | Frequency (Hz) | Protection rating | Max. current (A) | Weighted electrical power (W-Th-C) | Voltage (V) | Max. power |
|---|---|---|---|---|---|---|
| 11027108 - InspirAIR® Top 300 Premium kit | 50/60 |
IP65 |
1,8 |
69.1 |
230 |
240 |
| 11027109 - InspirAIR® Top 450 Premium kit | 50/60 |
IP65 |
2,5 |
83.5 |
230 |
350 |
| 11023474 - InspirAIR® Top 300 Premium | 50/60 |
IP65 |
1,8 |
230 |
240 |
|
| 11023476 - InspirAIR® Top 450 Premium | 50/60 |
IP65 |
2,5 |
230 |
350 |
|
| 11023477 - InspirAIR® Top 300 ERV Premium | 50/60 |
IP65 |
1,8 |
230 |
240 |
|
| 11023478 - InspirAIR® Top 450 ERV Premium | 50/60 |
IP65 |
2,5 |
230 |
350 |
- Energy class ErP- Ventilation : A
- Text ErP - Ventilation : Complies with eco-design regulation 1253/2014 and energy labelling regulation 1254/2014 for ventilation. Energy classes:
- Eligibility for EEC : Yes
| Ventilation energy class - Average climate |
|---|
| A |
