InspirAIR� Top Classic
Heat recovery ventilation unit
InspirAIR� Top Classic
Heat recovery ventilation unit
The heat recovery ventilation solution that efficiently filters out the smallest pollutants and adapts to your needs.
InspirAIR� Top Classic
Heat recovery ventilation solution for efficient elimination of the smallest pollutants, adapts to user requirements. Connectivity available using AldesConnect® Box modem sold as an accessory.
The + products
- for air quality: high performance filtration and customised filter recommendations,
- for performance: a complete system offering with thermal and electrical performance benchmarks in the market,
General and permanent ventilation of dwelling with heat recovery on exhaust air to pre-heat incoming air.
This air is purified by custom filters that ensure healthy air in the dwelling.
-
Materials:
- PPE body and metal panels,
-
Connection:
- 4 x Ø 160 mm connections on top of machine.
-
Airflow range:
- 60 to 300 m³/h,
- 90 to 450 m³/h.
-
Compact dimensions:
- 560 x 560 x 1088 mm
- Recommendations for custom filters (with modem as accessory)
- Exclusive radon mode
-
Connectivity:
- AldesConnect® Box modem available as an accessory to control the unit from the AldesConnect® smartphone app
- Commissioning and maintenance with Aldes Configurator
-
Control:
- 4 speeds available (Holidays, Auto, Push-button, Boost)
- Automatic 100% bypass
- Attached using 2 wall bars provided or using feet sold as accessories,
- easy to invert airflows when installing the unit,
- mandatory condensate connections using the drain kit sold as an accessory (except for kit references)
- start-up and adjustment using the InspirAIR wired remote control supplied (except for kit references)

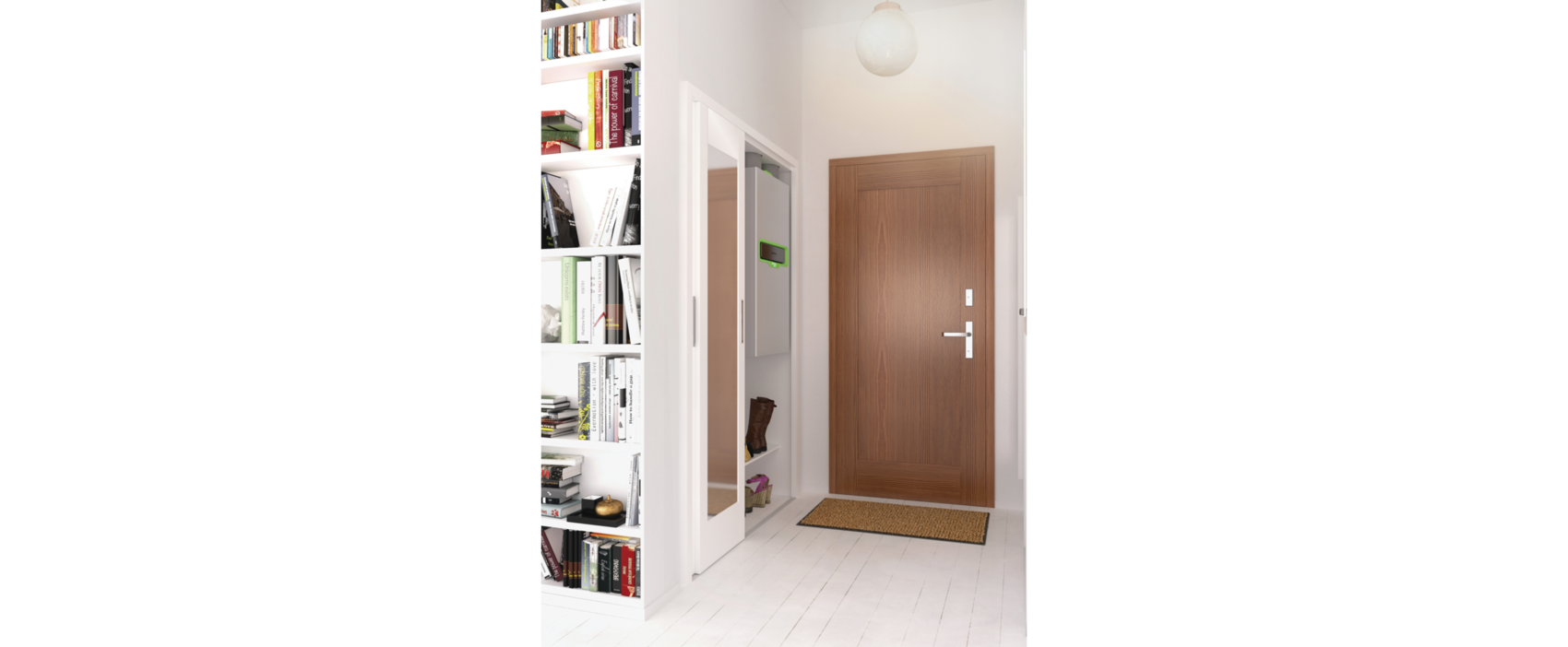

- compact dimensions for easy integration in a standard cupboard.
| References | Available filters | Insulation material | Type of exchanger | Type of motor |
|---|---|---|---|---|
| 11023496 - InspirAIR® Top 300 Classic kit |
|
EC |
||
| 11023497 - InspirAIR® Top 450 Classic kit |
|
Sensitive |
EC |
|
| 11023473 - InspirAIR® Top 300 Classic |
|
Sensitive |
EC |
|
| 11023475 - InspirAIR® Top 450 Classic |
|
Sensitive |
EC |
| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 560 |
560 |
1045 |
1088 |
160 |
320 |
294 |
323 |
560 |
28 |
| References | Airflow at max. speed (m³/h) |
|---|---|
| 11023496 - InspirAIR® Top 300 Classic kit | 300 |
| 11023497 - InspirAIR® Top 450 Classic kit | 450 |
| 11023473 - InspirAIR® Top 300 Classic | 300 |
| 11023475 - InspirAIR® Top 450 Classic | 450 |
| References | Exchanger performance (%) |
|---|---|
| 11023496 - InspirAIR® Top 300 Classic kit | 94 |
| 11023497 - InspirAIR® Top 450 Classic kit | |
| 11023473 - InspirAIR® Top 300 Classic | |
| 11023475 - InspirAIR® Top 450 Classic |
| References | Frequency (Hz) | Protection rating | Max. current (A) | Voltage (V) | Max. power |
|---|---|---|---|---|---|
| 11023496 - InspirAIR® Top 300 Classic kit | 50/60 |
IP65 |
1,8 |
230 |
240 |
| 11023497 - InspirAIR® Top 450 Classic kit | 50/60 |
IP65 |
2,5 |
230 |
350 |
| 11023473 - InspirAIR® Top 300 Classic | 50/60 |
IP65 |
1,8 |
230 |
240 |
| 11023475 - InspirAIR® Top 450 Classic | 50/60 |
IP65 |
2,5 |
230 |
350 |
- Energy class ErP- Ventilation : A+
- Text ErP - Ventilation : Complies with eco-design regulation 1253/2014 and energy labelling regulation 1254/2014 for ventilation. Energy classes:
- Eligibility for EEC : Yes
| Ventilation energy class - Average climate |
|---|
| A |
