IN LINE XSilent
Duct fan
IN LINE XSilent
Duct fan

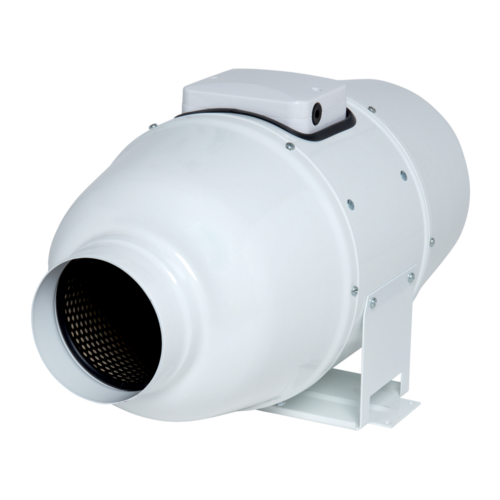

IN LINE XSilent is a very quiet, high-performance duct fan with a steel casing and 50 mm internal acoustic insulation.
IN LINE XSilent
The IN LINE XSilent duct fan ventilates spacious rooms or environments, while operating at a low noise level: villa, hotel, library, meeting room, cinema, lecture hall, etc.
XSilent can operate in either supply or exhaust directions on circular ducting and can be installed at any point in the system.
It offers up to 2 ventilation speeds if connected to an inverter and can operate with a voltage controller.
XSilent can operate in either supply or exhaust directions on circular ducting and can be installed at any point in the system.
It offers up to 2 ventilation speeds if connected to an inverter and can operate with a voltage controller.
The + products
- very quiet due to 50 mm internal insulation: as low as 23 dB(A),
- optimised aeraulic performance,
- steel casing.
The IN LINE Xsilent duct fan can ventilate spacious rooms in residential or commercial settings.
It can supply or extract air with 1 or 2 ventilation speeds controlled by an inverter or voltage controller.
-
material:
- painted steel outer casing,
- ABS inner casing and impeller.
- thermal and acoustic insulation featuring 50 mm of rock wool,
- 7 models: from Ø 100 mm to Ø 315 mm for maximum airflow from 240 to 1950 m³/h,
- single-phase high-performance 2-speed motor mounted on ball bearings,
- built-in thermal protection.
- connected to upstream and downstream ducts,
- can be installed in any position,
- attachment plate for installation on wall,
- can be mounted in series for higher pressure or in parallel for higher airflow,
- fresh air brought into room via air inlet grille or door undercut.
- supports ambient temperature between 1°C and 45°C,
- maximum exhaust air temperature: 60°C.
| Service life (h) | Number of speeds | Insulation material | Type of motor |
|---|---|---|---|
| 40000 |
2 |
AC |

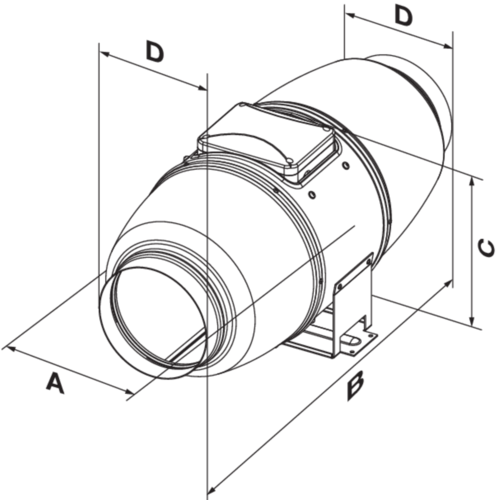

| References | A (mm) | B (mm) | C (mm) | D (mm) | H (mm) | L (mm) | Ø (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 11022350 - IN LINE XSilent 100 | 215 |
505 |
237 |
100 |
237 |
505 |
100 |
4,6 |
| 11022351 - IN LINE XSilent 125 | 215 |
474 |
237 |
125 |
237 |
474 |
125 |
4,6 |
| 11022352 - IN LINE XSilent 150 | 247 |
580 |
260 |
150 |
260 |
580 |
150 |
6,1 |
| 11022353 - IN LINE XSilent 160 | 247 |
580 |
260 |
160 |
260 |
580 |
160 |
6,1 |
| 11022354 - IN LINE XSilent 200 | 293 |
550 |
295 |
200 |
295 |
550 |
200 |
8 |
| 11022355 - IN LINE XSilent 250 | 358 |
658 |
360 |
250 |
360 |
658 |
250 |
15 |
| 11022356 - IN LINE XSilent 315 | 432 |
780 |
434 |
315 |
434 |
780 |
315 |
25 |
| References | Airflow at max. speed (m³/h) | Airflow at min. speed (m³/h) |
|---|---|---|
| 11022350 - IN LINE XSilent 100 | 240 |
170 |
| 11022351 - IN LINE XSilent 125 | 340 |
230 |
| 11022352 - IN LINE XSilent 150 | 555 |
405 |
| 11022353 - IN LINE XSilent 160 | 555 |
405 |
| 11022354 - IN LINE XSilent 200 | 1020 |
810 |
| 11022355 - IN LINE XSilent 250 | 1330 |
1050 |
| 11022356 - IN LINE XSilent 315 | 1950 |
1530 |
| References | Sound pressure at 3 m at max. speed (dB(A)) | Sound pressure at 3 m at min. speed (dB(A)) |
|---|---|---|
| 11022350 - IN LINE XSilent 100 | 29 |
24 |
| 11022351 - IN LINE XSilent 125 | 28 |
23 |
| 11022352 - IN LINE XSilent 150 | 33 |
26 |
| 11022353 - IN LINE XSilent 160 | 33 |
26 |
| 11022354 - IN LINE XSilent 200 | 36 |
31 |
| 11022355 - IN LINE XSilent 250 | 38 |
34 |
| 11022356 - IN LINE XSilent 315 | 40 |
36 |
| References | Frequency (Hz) | Protection rating | Protection current (A) | Max. current (A) | Voltage (V) | Max. power | Min. power |
|---|---|---|---|---|---|---|---|
| 11022350 - IN LINE XSilent 100 | 50/60 |
2 |
0,2 |
220/240 |
26 |
24 |
|
| 11022351 - IN LINE XSilent 125 | 50/60 |
2 |
0,2 |
220/240 |
30 |
25 |
|
| 11022352 - IN LINE XSilent 150 | 50/60 |
2 |
0,3 |
220/240 |
52 |
45 |
|
| 11022353 - IN LINE XSilent 160 | 50/60 |
2 |
0,3 |
220/240 |
52 |
45 |
|
| 11022354 - IN LINE XSilent 200 | 50/60 |
2 |
0,6 |
220/240 |
110 |
78 |
|
| 11022355 - IN LINE XSilent 250 | 50/60 |
2 |
1 |
220/240 |
178 |
127 |
|
| 11022356 - IN LINE XSilent 315 | 50/60 |
2 |
2 |
220/240 |
313 |
213 |
- Text ErP - Ventilation : Excluded from eco-design regulation 327/2011 (because P < 125 W) and excluded from eco-design regulation 1253/2014 because of the shell.
| Electrical insulation class |
|---|
| Class 2 |
