TAVA�
The + products
- airflow from 500 to 3500 m3/h,
- refined design,
- wide range of installation accessories,
- ErP-compliant with speed controller.

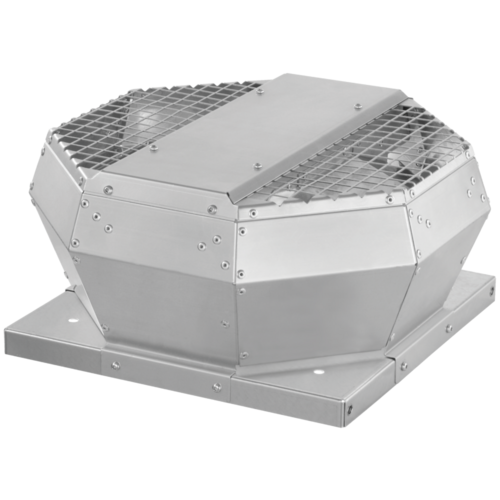

Roof exhaust fan with vertical discharge for CMEV in multi-occupancy housing and non-residential buildings.
- 7 sizes available from 500 to 3,500 m3/h (for sub-3500 m3h flow rates, see TAVA® Micro-Watt),
- made of weatherproof AlMg3 aluminium with a very low height. The motor unit tilts for easy installation (optional accessories) and maintenance,
- the air outlet features a protective screen against intrusion, birds, and other foreign objects,
- backward curve centrifuge impeller balanced on the motor according to quality class G 6.3 of DIN / ISO 1940,
- the drive motor is designed for maintenance-free operation, thanks to its ball bearings with lifetime lubrication,
- the motor is protected by a thermal switch integrated in the winding,
- single-phase power supply.
- horizontal outlet,
- flat or sloping roof with masonry base or accessory.
| Insulation material | Type of motor |
|---|---|
| AC |
| References | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 11024121 - TAVA® 450 T4 | 418 |
860 |
670 |
222,5 |
535 |
4 x Ø11 |
Ø438 M6x15 (6x) |
26 |
| 11024122 - TAVA® 500 T4 | 418 |
860 |
670 |
222,5 |
535 |
4 x Ø11 |
Ø438 M6x15 (6x) |
34 |
| 11024123 - TAVA® 560 T4 | 521 |
1165 |
931 |
300 |
750 |
4 x Ø11 |
Ø605 M8x15 |
53,5 |
| 11024112 - TAVA® 190 M2 | 190 |
388 |
337 |
95 |
245 |
4 x Ø9 |
Ø213 6xM6 |
4,5 |
| 11024114 - TAVA® 220 M2 | 190 |
388 |
337 |
95 |
245 |
4 x Ø9 |
Ø213 6xM6 |
5 |
| 11024116 - TAVA® 250 M4 | 190 |
541 |
337 |
95 |
245 |
4 x Ø9 |
Ø286 M6x15 (6x) |
5,6 |
| 11024117 - TAVA® 280 M4 | 249 |
541 |
437 |
135 |
330 |
4 x Ø9 |
Ø286 M6x15 (6x) |
8,2 |
| 11024118 - TAVA® 315 M4 | 249 |
541 |
437 |
135 |
330 |
4 x Ø9 |
Ø286 M6x15 (6x) |
8,3 |
| 11024119 - TAVA® 355 M4 | 333 |
745 |
598 |
192,5 |
450 |
4 x Ø11 |
Ø438 M6x15 (6x) |
16,5 |
| 11024120 - TAVA® 400 M4 | 333 |
745 |
598 |
192,5 |
450 |
4 x Ø11 |
Ø438 M6x15 (6x) |
19,5 |
| References | Airflow (m³/h) |
|---|---|
| 11024121 - TAVA® 450 T4 | 4200 |
| 11024122 - TAVA® 500 T4 | 7000 |
| 11024123 - TAVA® 560 T4 | 9800 |
| 11024112 - TAVA® 190 M2 | 300 |
| 11024114 - TAVA® 220 M2 | 580 |
| 11024116 - TAVA® 250 M4 | 350 |
| 11024117 - TAVA® 280 M4 | 400 |
| 11024118 - TAVA® 315 M4 | 500 |
| 11024119 - TAVA® 355 M4 | 1800 |
| 11024120 - TAVA® 400 M4 | 2700 |
| References | Protection rating | Max. current consumption SINGLE-PHASE 230 V (A) | Max. current consumption THREE-PHASE 400 V (A) | Maximum current (A) | Power supply | Number of poles | Max. power |
|---|---|---|---|---|---|---|---|
| 11024121 - TAVA® 450 T4 | IP54 |
1,5 |
1,5 |
4 |
0,641 |
||
| 11024122 - TAVA® 500 T4 | IP54 |
3,4 |
3,4 |
4 |
1,467 |
||
| 11024123 - TAVA® 560 T4 | IP54 |
4,8 |
4,8 |
4 |
1,911 |
||
| 11024112 - TAVA® 190 M2 | IP33 |
0,4 |
0,4 |
Single-phase |
2 |
0,067 |
|
| 11024114 - TAVA® 220 M2 | IP33 |
0,6 |
0,6 |
Single-phase |
2 |
0,110 |
|
| 11024116 - TAVA® 250 M4 | IP54 |
0,3 |
0,3 |
Single-phase |
4 |
0,052 |
|
| 11024117 - TAVA® 280 M4 | IP54 |
0,4 |
0,4 |
Single-phase |
4 |
0,082 |
|
| 11024118 - TAVA® 315 M4 | IP33 |
0,6 |
0,6 |
Single-phase |
4 |
0,114 |
|
| 11024119 - TAVA® 355 M4 | IP44 |
1,3 |
1,3 |
Single-phase |
4 |
0,249 |
|
| 11024120 - TAVA® 400 M4 | IP54 |
2,6 |
2,6 |
Single-phase |
4 |
0,452 |
- Technical Opinion no. : 14.5/16-2185_V2
- Text ErP - Ventilation : Complies with eco-design regulation 1253/2014 and energy labelling regulation 1254/2014 for ventilation. Energy classes: see ErP regulation page.
