AC 639 series - aluminium

AC 639 series - aluminium

The AP 639 penthouse delivers fresh air intake or contaminated air outlet on ventilation and smoke / heat exhaust systems.
AC 639 series - aluminium
AC 639 series - aluminium

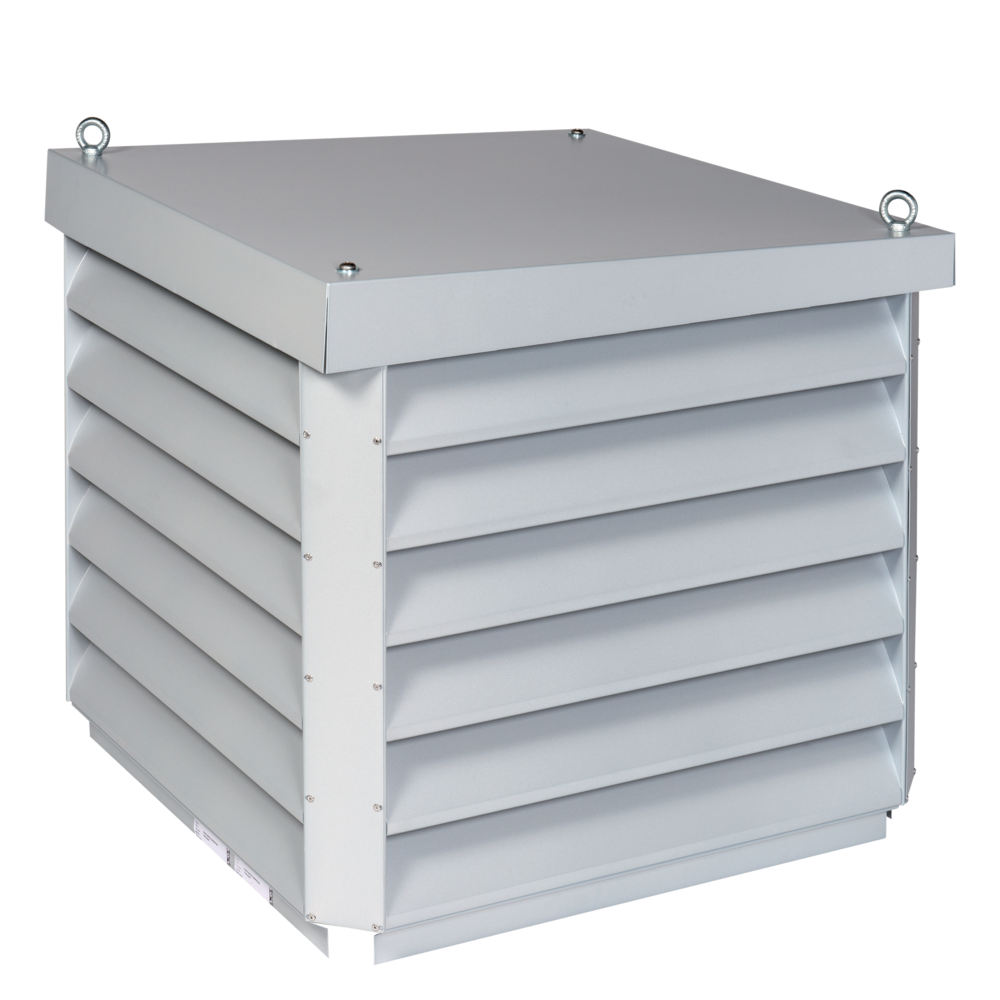

The AP 639 is an aluminium penthouse suited to ventilation systems and natural or mechanical smoke and heat exhaust systems. It enables air intake or exhaust for the building.
AC 639 series - aluminium

The + products

  • roof outlet suited to natural smoke and heat exhaust airflows,
  • rain guard,
  • robust grille specially designed to prevent intrusion.

The AP 639 penthouse is installed on the roof at the end of an air intake or outlet duct, to exchange air between the building and outside, while preventing the ingress of rain or intrusion.

  • aluminium frame and horizontal rain guard vanes,
  • last vane at bottom set in “water run-off” position,
  • aluminium cap,
  • vane pitch 100 mm,
  • available heights:
    • 300 mm,
    • 400 mm,
    • 500 mm,
    • 600 mm,
    • 800 mm,
  • inner section containing galvanised steel 12 x 12 Ø 1.2 mm square mesh as a bird screen,
  • rough aluminium finish..
  • lifting lugs included for installation on roof,
  • visible screw attachment to the chassis,
  • installed on concrete stack base. The base of the penthouse features an l-shape frame to cover the stack base,

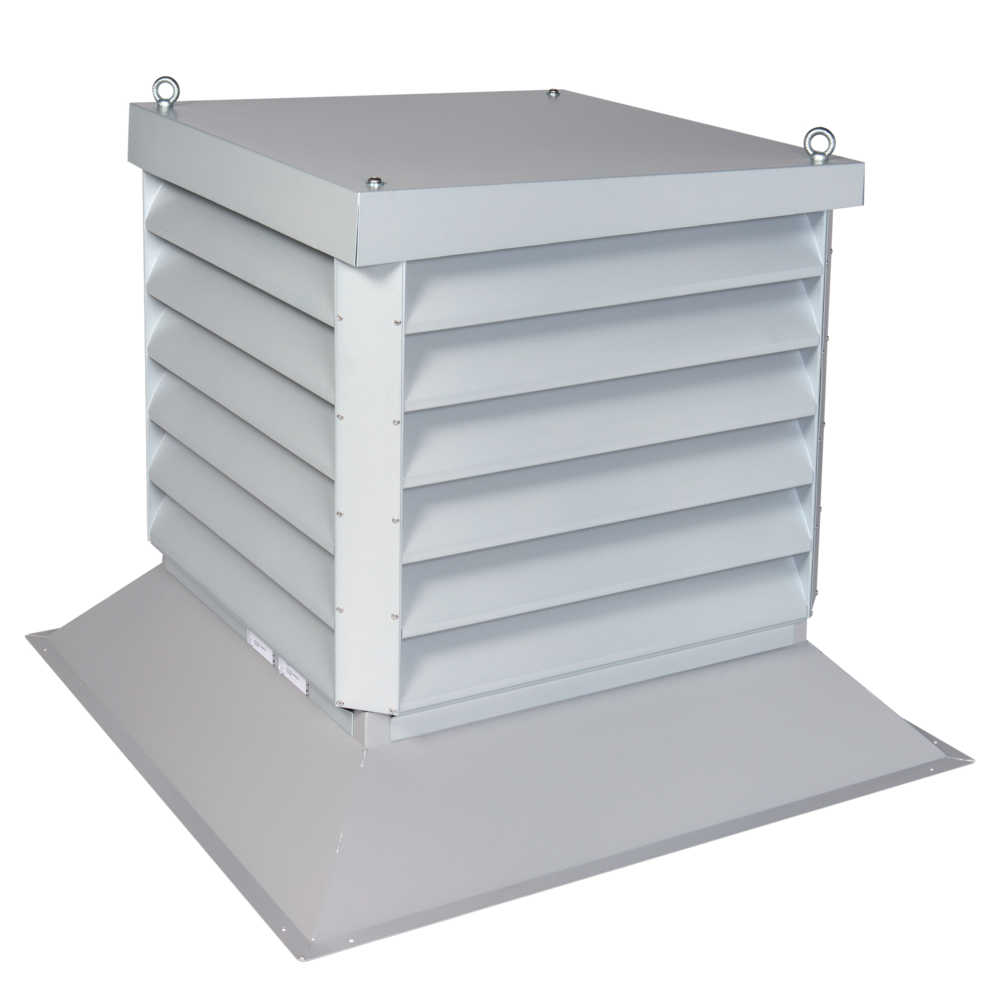

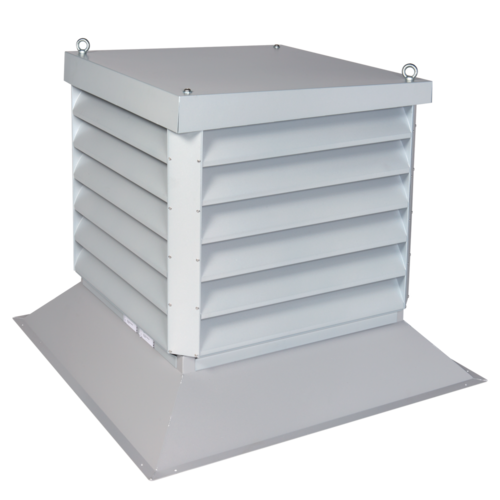

  • metal base plate available for flat roof as accessory.
Insulation material
AC 639 series - aluminium AC 639 series - aluminium
References H (mm)
11003240 - AP 639 H 300

300

11003241 - AP 639 H 400

400

11003242 - AP 639 H 500

500

11003243 - AP 639 H 600

600

11003244 - AP 639 H 800

800

11003249 - RF 639 stack base

252

Products and accessories references

  • AP 639 H 300
    AP 639 H 300
    11003240
    from 1,00 (without VAT)
  • AP 639 H 400
    AP 639 H 400
    11003241
    from 1,00 (without VAT)
  • AP 639 H 500
    AP 639 H 500
    11003242
    from 1,00 (without VAT)
  • AP 639 H 600
    AP 639 H 600
    11003243
    from 1,00 (without VAT)
  • AP 639 H 800
    AP 639 H 800
    11003244
    from 1,00 (without VAT)
  • RF 639 stack base
    RF 639 stack base
    11003249
    1,00 (without VAT)
