SD 102 D series - steel
Duct grille
SD 102 D series - steel
Duct grille
The SD 102 D indoor duct grille is used for air supply in commercial buildings.
SD 102 D series - steel

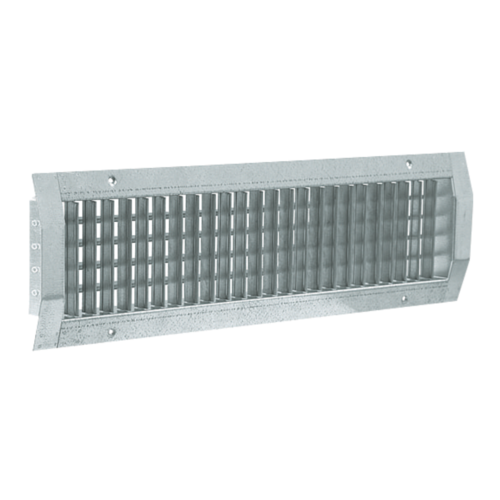

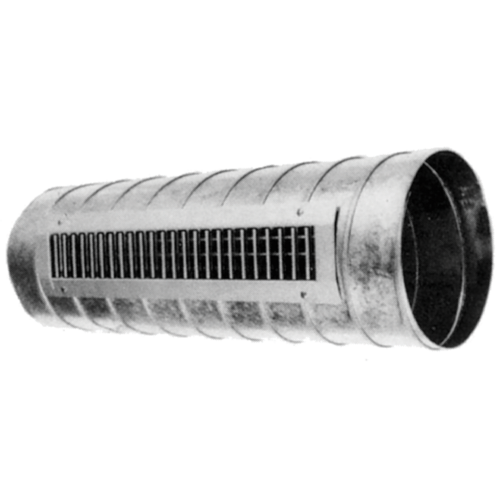

The SD 102 D indoor duct grille is used for air supply in all ventilation and air conditioning systems in commercial buildings. Installed on cylindrical or oblong duct. Dual-deflection steel grille with individually adjusted movable horizontal rear and vertical front vanes, 20 mm pitch, RAL 9010 white epoxy coating 30% matt.
The + products
- suitable for circular and oblong ducts in all standard diameters.
The SD 102 D indoor duct grille operates on the supply circuit for all ventilation and air conditioning systems in commercial buildings. Installed on cylindrical or oblong duct.

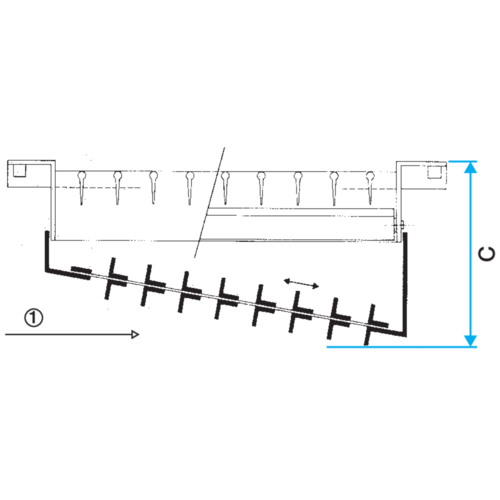

- dual-deflection grille with individually adjusted movable horizontal rear and vertical front vanes, 20 mm pitch,
- steel with RAL 9010 white epoxy coating 30% matt,

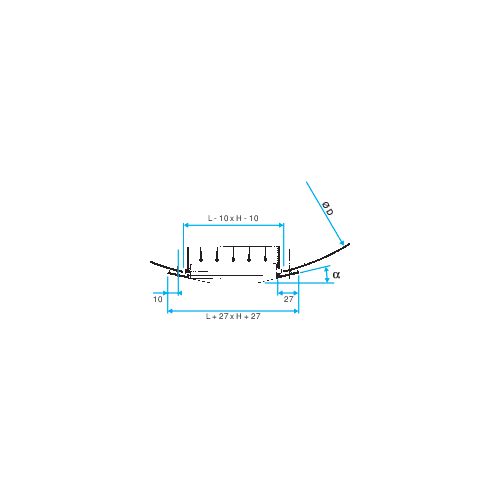

- visible screw attachment in frame for cylindrical or oblong duct.
- attached to circular or oblong ducts,
- visible screw attachment in frame.
| Insulation material |
|---|
