GD 102 D series - steel
Duct grille
GD 102 D series - steel
Duct grille
The GD 102 D indoor duct grille is used for air supply in commercial buildings.
GD 102 D series - steel
The GD 102 D indoor duct grille is used for air supply in all ventilation and air conditioning systems in commercial buildings. Installed on cylindrical or oblong duct. Dual-deflection grille with individually adjusted movable horizontal rear vanes and vertical front vanes, 20 mm pitch, galvanised steel with natural hue.
The + products
- suitable for circular and oblong ducts in all standard diameters.
The GD 102 D indoor duct grille operates on the supply circuit for all ventilation and air conditioning systems in commercial buildings. Installed on cylindrical or oblong duct.
- dual deflection terminal with horizontal vanes at rear and vertical, individually adjustable vanes on front, pitch 20 mm,
- galvanised steel with natural finish,
- visible screw attachment in the frame on cylindrical or oblong duct.
- dimensions range from 325 x 75 to 1225 x 225 mm.
- attached to circular or oblong ducts,
- visible screw attachment in frame.
| Insulation material | Type of finish | Colour |
|---|---|---|
| Galvanised steel |
Galvanised steel |

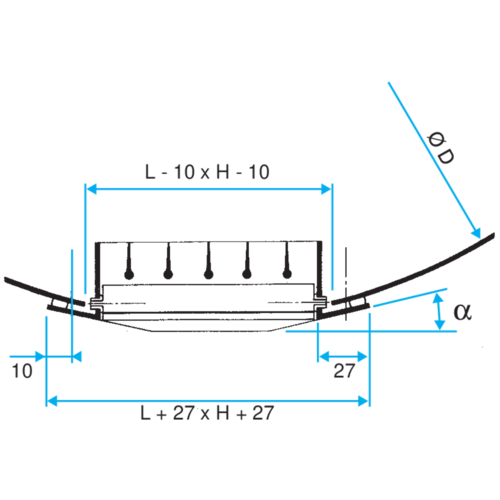

| References | A (mm) | B (mm) | C (mm) | H (mm) | L (mm) | Max. Ø D duct (mm) | Min. Ø D duct (mm) |
|---|---|---|---|---|---|---|---|
| 11050148 - GD102D F1 325X75 | 42 |
86 |
124 |
75 |
325 |
400 |
160 |
| 11050140 - GD102D F1 425X75 | 42 |
86 |
137 |
75 |
425 |
400 |
160 |
| 11050141 - GD102D F1 525X75 | 42 |
86 |
150 |
75 |
525 |
400 |
160 |
| 11050142 - GD102D F1 625X75 | 42 |
86 |
163 |
75 |
625 |
400 |
160 |
| 11050143 - GD102D F1 425X125 | 46 |
90 |
141 |
125 |
425 |
900 |
315 |
| 11050144 - GD102D F1 525X125 | 46 |
90 |
154 |
125 |
525 |
900 |
315 |
| 11050145 - GD102D F1 625X125 | 46 |
90 |
167 |
125 |
625 |
900 |
315 |
| 11050154 - GD102D F1 825X225 | 56 |
100 |
204 |
225 |
825 |
1600 |
630 |
| References | Comfort airflow (air supply with damper N 100% open) for Lw < NR 25 (m³/h) |
|---|---|
| 11050148 - GD102D F1 325X75 | 190 |
| 11050140 - GD102D F1 425X75 | 230 |
| 11050141 - GD102D F1 525X75 | 300 |
| 11050142 - GD102D F1 625X75 | 360 |
| 11050143 - GD102D F1 425X125 | 460 |
| 11050144 - GD102D F1 525X125 | 560 |
| 11050145 - GD102D F1 625X125 | 680 |
| 11050154 - GD102D F1 825X225 | 1500 |
