AC 174 series - aluminium
Ceiling grille
AC 174 series - aluminium
Ceiling grille
The AC 174 aluminium filtered hinged ceiling grille enables air extraction on all ventilation and air-conditioning systems.
AC 174 series - aluminium

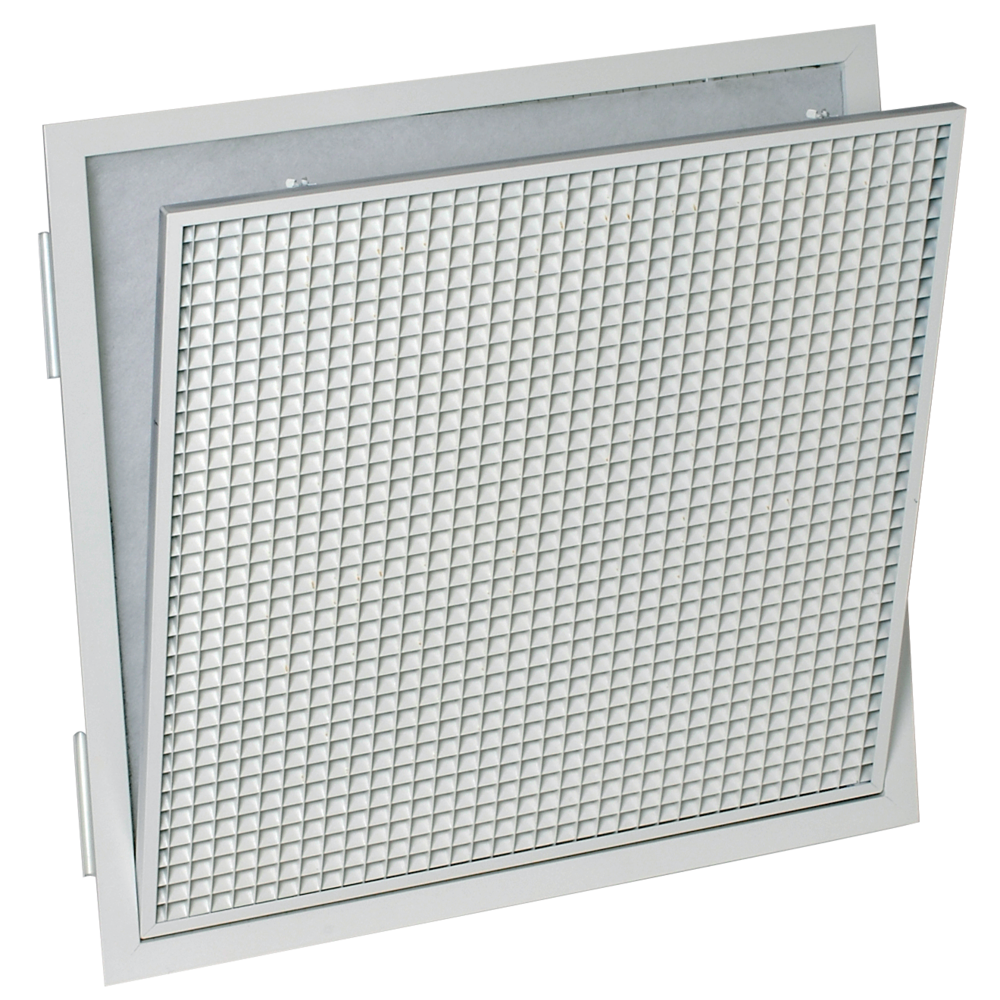

The AC 174 ceiling grille is made of anodised aluminium with a square 15x15 mm mesh. It offers a hinged front face and a built-in filter.
The + products
- built-in filter,
- easy hinged opening.
- suited to standard suspended ceiling tiles,
- efficient and robust closure system,
- possible to install in removable ceiling.
The AC 174 grille with a square 15x15 mm mesh offers good air extraction. Furthermore, it contains an easily-accessible filter as the grille opens on hinges.
- square mesh 15 x 15 mm with 45° incline,
- finished with white epoxy paint RAL 9003 30%,
- easy opening with stainless steel hinges,
- includes 15 mm G3 filter with M1 fire rating.
- dimensions from 200 x 200 to 600 x 600 in increments of 25 mm.
- for installation in ceiling,
- replaces suspended ceiling tile depending on models.
| References | Main material | Insulation material | Type of finish | Colour |
|---|---|---|---|---|
| 11002037 - AC 174 | Aluminium |
|||
| 11050740 - AC 174 WZ F1 400x200 | Aluminium |
Epoxy paint |
Lagoon blue |
|
| 11050741 - AC 174 WZ F1 500x500 | Aluminium |
Epoxy paint |
Lagoon blue |
|
| 11050742 - AC 174 WZ F0 563x263 AxB=600x300 | Aluminium |
Epoxy paint |
Lagoon blue |
|
| 11050743 - AC 174 WZ F0 563x563 AxB=600x600 | Aluminium |
Epoxy paint |
Lagoon blue |
| References | A (mm) | A x B* (mm) | B (mm) | D (mm) | H (mm) | H1 (mm) | L (mm) | Standard filter (mm) |
|---|---|---|---|---|---|---|---|---|
| 11002037 - AC 174 | ||||||||
| 11050740 - AC 174 WZ F1 400x200 | 250 |
200 |
360 |
400 |
385X185 |
|||
| 11050741 - AC 174 WZ F1 500x500 | 250 |
500 |
410 |
500 |
485X485 |
|||
| 11050742 - AC 174 WZ F0 563x263 AxB=600x300 | 600 |
600X300 |
300 |
250 |
263 |
360 |
563 |
550X250 |
| 11050743 - AC 174 WZ F0 563x563 AxB=600x600 | 600 |
600X600 |
600 |
250 |
563 |
360 |
563 |
550X500 |
