ALD 610 - ALD 620 series - aluminium Slot diffuser

ALD 610 - ALD 620 series - aluminium

Slot diffuser

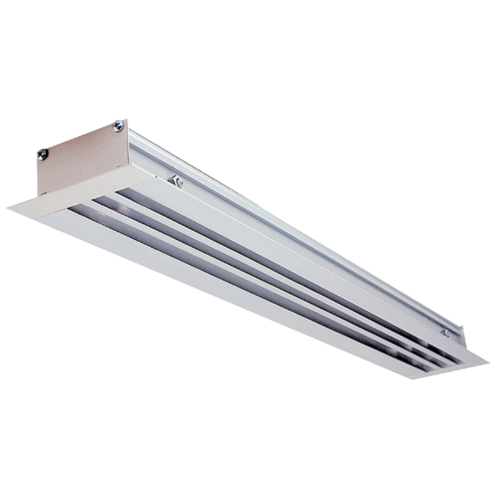

The ALD 610 - 620 is an aluminium linear fixed slot diffuser for use on air supply or return systems in non-residential buildings.
ALD 610 - ALD 620 series - aluminium
See references
ALD 610 - ALD 620 series - aluminium
The ALD 610 - 620 is an aluminium linear fixed slot diffuser for use on air supply or extraction circuits in ventilation and air conditioning systems in commercial buildings. It delivers air supply to the left or right depending on the model. It is available with up to 4 slots in lengths of 550, 900, 1150 and 1500 mm with a 25 mm frame. Its body is made of extruded aluminium. The diffuser is equipped with extruded aluminium deflectors and a slide damper built into the diffuser. The standard finish is anodised aluminium with a natural satin hue or epoxy coating RAL 9010 white. All other RAL colours are available for another type of finish. It is installed in the ceiling using a concealed screw and bridge attachment, accessible under the diffuser. This attachment method is compatible with all types of ceiling.
ALD 610 - ALD 620 series - aluminium

The + products

  • slim diffuser,
  • built-in damper.

The ALD 610- 610 diffuser is installed in the ceiling using concealed attachments. It offers air supply to the left or right depending on the model. An extraction model is also available.

  • aluminium linear slot diffuser,
  • air supply or extraction,
  • air supply to the left or right depending on the model,
  • up to 4 slots in lengths 550, 900, 1150 and 1500 mm,
  • anodised aluminium body and deflectors, natural satin hue,
  • finish:
    • standard epoxy coating RAL 9010 white,
    • epoxy coating all other RAL colours.
  • slide damper built into diffuser,
  • concealed screw attachment in the connection plenum, accessible under the diffuser,
  • plenum fitted with tabs for attachment to concrete slab.
  • accessories:
    • galvanised steel plate connection plenum with standard or insulated side branch connection.

The ALD 610 - 620 is installed in any type of ceiling using a concealed screw and bridge attachment, accessible under the diffuser.

References Number of slots Insulation material Type of finish
11051750 - ALD611 550 ALU + damper

1

Aluminium
11051751 - ALD611 900 ALU + damper

1

Aluminium
11051752 - ALD611 1150 ALU + damper

1

Aluminium
11051753 - ALD611 1500 ALU + damper

1

Aluminium
11051754 - ALD612 550 ALU + damper

2

Aluminium
11051755 - ALD612 900 ALU + damper

2

Aluminium
11051756 - ALD612 1150 ALU + damper

2

Aluminium
11051759 - ALD622 900 ALU + damper

2

Aluminium
11051762 - ALD613 550 ALU + damper

3

Aluminium
11051763 - ALD613 900 ALU + damper

3

Aluminium
11051764 - ALD613 1150 ALU + damper

3

Aluminium
11051765 - ALD613 1500 ALU + damper

3

Aluminium
11051767 - ALD623 900 ALU + damper

3

Aluminium
11051771 - ALD614 900 ALU + damper

4

Aluminium
11051772 - ALD614 1150 ALU + damper

4

Aluminium
11051773 - ALD614 1500 ALU + damper

4

Aluminium
11051775 - ALD624 900 ALU + damper

4

Aluminium
11051850 - ALD611 550 RAL9010 + damper

1

White
11051851 - ALD611 900 RAL9010 + damper

1

White
11051852 - ALD611 1150 RAL9010 + damper

1

White
11051854 - ALD612 550 RAL9010 + damper

2

White
11051855 - ALD612 900 RAL9010 + damper

2

White
11051856 - ALD612 1150 RAL9010 + damper

2

White
11051857 - ALD612 1500 RAL9010 + damper

2

White
11051858 - ALD622 550 RAL9010 + damper

2

White
11051859 - ALD622 900 RAL9010 + damper

2

White
11051860 - ALD622 1150 RAL9010 + damper

2

White
11051862 - ALD613 550 RAL9010 + damper

3

White
11051864 - ALD613 1150 RAL9010 + damper

3

White
11051865 - ALD613 1500 RAL9010 + damper

3

White
11051866 - ALD623 550 RAL9010 + damper

3

White
11051867 - ALD623 900 RAL9010 + damper

3

White
11051868 - ALD623 1150 RAL9010 + damper

3

White
11051870 - ALD614 550 RAL9010 + damper

4

White
11051871 - ALD614 900 RAL9010 + damper

4

White
11051872 - ALD614 1150 RAL9010 + damper

4

White
11051873 - ALD614 1500 RAL9010 + damper

4

White
11051874 - ALD624 550 RAL9010 + damper

4

White
11051875 - ALD624 900 RAL9010 + damper

4

White
11051876 - ALD624 1150 RAL9010 + damper

4

White
11051877 - ALD624 1500 RAL9010 + damper

4

White
11053100 - ALP111 550 PLENUM ALD
11053101 - ALP111 900 PLENUM ALD
11053102 - ALP111 1150 PLENUM ALD
11053103 - ALP111 1500 PLENUM ALD
11053104 - ALP112 550 PLENUM ALD
11053105 - ALP112 900 PLENUM ALD
11053106 - ALP112 1150 PLENUM ALD
11053107 - ALP112 1500 PLENUM ALD
11053110 - ALP122 1150 PLENUM ALD
11053112 - ALP113 550 PLENUM ALD
11053114 - ALP113 1150 PLENUM ALD
11053115 - ALP113 1500 PLENUM ALD
11053116 - ALP123 550 PLENUM ALD
11053117 - ALP123 900 PLENUM ALD
11053120 - ALP114 550 PLENUM ALD
11053121 - ALP114 900 PLENUM ALD
11053122 - ALP114 1150 PLENUM ALD
11053123 - ALP114 1500 PLENUM ALD
11051863 - ALD613 900 RAL9010 + damper

3

White
11053113 - ALP113 900 PLENUM ALD

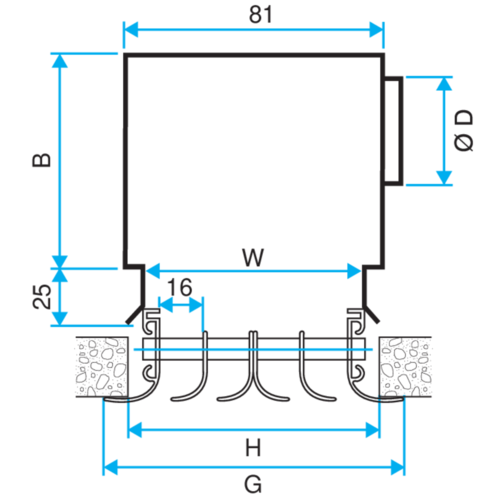

ALD 610 - ALD 620 series - aluminium ALD 610 - ALD 620 series - aluminium
References B (mm) G (mm) H (mm) L (mm) Ø D (mm)
11051750 - ALD611 550 ALU + damper

155

50

35

550

125
11051751 - ALD611 900 ALU + damper

155

50

35

900

125
11051752 - ALD611 1150 ALU + damper

155

50

35

1150

125
11051753 - ALD611 1500 ALU + damper

155

50

35

1500

125
11051754 - ALD612 550 ALU + damper

155

67

50

550

125
11051755 - ALD612 900 ALU + damper

155

67

50

900

125
11051756 - ALD612 1150 ALU + damper

155

67

50

1150

125
11051759 - ALD622 900 ALU + damper

155

74

55

900

125
11051762 - ALD613 550 ALU + damper

190

84

70

550

160
11051763 - ALD613 900 ALU + damper

190

84

70

900

160
11051764 - ALD613 1150 ALU + damper

190

84

70

1150

160
11051765 - ALD613 1500 ALU + damper

190

84

70

1500

160
11051767 - ALD623 900 ALU + damper

190

91

70

900

160
11051771 - ALD614 900 ALU + damper

190

101

85

900

160
11051772 - ALD614 1150 ALU + damper

190

101

85

1150

160
11051773 - ALD614 1500 ALU + damper

190

101

85

1500

160
11051775 - ALD624 900 ALU + damper

190

108

85

900

160
11051850 - ALD611 550 RAL9010 + damper

155

50

35

550

125
11051851 - ALD611 900 RAL9010 + damper

155

50

35

900

125
11051852 - ALD611 1150 RAL9010 + damper

155

50

35

1150

125
11051854 - ALD612 550 RAL9010 + damper

155

67

50

550

125
11051855 - ALD612 900 RAL9010 + damper

155

67

50

900

125
11051856 - ALD612 1150 RAL9010 + damper

155

67

50

1150

125
11051857 - ALD612 1500 RAL9010 + damper

155

67

50

1500

125
11051858 - ALD622 550 RAL9010 + damper

155

74

55

550

125
11051859 - ALD622 900 RAL9010 + damper

155

74

55

900

125
11051860 - ALD622 1150 RAL9010 + damper

155

74

55

1150

125
11051862 - ALD613 550 RAL9010 + damper

190

84

70

550

160
11051864 - ALD613 1150 RAL9010 + damper

190

84

70

1150

160
11051865 - ALD613 1500 RAL9010 + damper

190

84

70

1500

160
11051866 - ALD623 550 RAL9010 + damper

190

91

70

550

160
11051867 - ALD623 900 RAL9010 + damper

190

91

70

900

160
11051868 - ALD623 1150 RAL9010 + damper

190

91

70

1150

160
11051870 - ALD614 550 RAL9010 + damper

190

101

85

550

160
11051871 - ALD614 900 RAL9010 + damper

190

101

85

900

160
11051872 - ALD614 1150 RAL9010 + damper

190

101

85

1150

160
11051873 - ALD614 1500 RAL9010 + damper

190

101

85

1500

160
11051874 - ALD624 550 RAL9010 + damper

190

108

85

550

160
11051875 - ALD624 900 RAL9010 + damper

190

108

85

900

160
11051876 - ALD624 1150 RAL9010 + damper

190

108

85

1150

160
11051877 - ALD624 1500 RAL9010 + damper

190

108

85

1500

160
11053100 - ALP111 550 PLENUM ALD
11053101 - ALP111 900 PLENUM ALD
11053102 - ALP111 1150 PLENUM ALD
11053103 - ALP111 1500 PLENUM ALD
11053104 - ALP112 550 PLENUM ALD
11053105 - ALP112 900 PLENUM ALD
11053106 - ALP112 1150 PLENUM ALD
11053107 - ALP112 1500 PLENUM ALD
11053110 - ALP122 1150 PLENUM ALD
11053112 - ALP113 550 PLENUM ALD
11053114 - ALP113 1150 PLENUM ALD
11053115 - ALP113 1500 PLENUM ALD
11053116 - ALP123 550 PLENUM ALD
11053117 - ALP123 900 PLENUM ALD
11053120 - ALP114 550 PLENUM ALD
11053121 - ALP114 900 PLENUM ALD
11053122 - ALP114 1150 PLENUM ALD
11053123 - ALP114 1500 PLENUM ALD
11051863 - ALD613 900 RAL9010 + damper

190

84

70

900

160
11053113 - ALP113 900 PLENUM ALD
References Comfort airflow < 35 dB(A) (m³/h)
11051750 - ALD611 550 ALU + damper

100
11051751 - ALD611 900 ALU + damper

100
11051752 - ALD611 1150 ALU + damper

100
11051753 - ALD611 1500 ALU + damper

100
11051754 - ALD612 550 ALU + damper

175
11051755 - ALD612 900 ALU + damper

175
11051756 - ALD612 1150 ALU + damper

175
11051759 - ALD622 900 ALU + damper

175
11051762 - ALD613 550 ALU + damper

250
11051763 - ALD613 900 ALU + damper

250
11051764 - ALD613 1150 ALU + damper

250
11051765 - ALD613 1500 ALU + damper

250
11051767 - ALD623 900 ALU + damper

250
11051771 - ALD614 900 ALU + damper

325
11051772 - ALD614 1150 ALU + damper

325
11051773 - ALD614 1500 ALU + damper

325
11051775 - ALD624 900 ALU + damper

325
11051850 - ALD611 550 RAL9010 + damper

100
11051851 - ALD611 900 RAL9010 + damper

100
11051852 - ALD611 1150 RAL9010 + damper

100
11051854 - ALD612 550 RAL9010 + damper

175
11051855 - ALD612 900 RAL9010 + damper

175
11051856 - ALD612 1150 RAL9010 + damper

175
11051857 - ALD612 1500 RAL9010 + damper

175
11051858 - ALD622 550 RAL9010 + damper

175
11051859 - ALD622 900 RAL9010 + damper

175
11051860 - ALD622 1150 RAL9010 + damper

175
11051862 - ALD613 550 RAL9010 + damper

250
11051864 - ALD613 1150 RAL9010 + damper

250
11051865 - ALD613 1500 RAL9010 + damper

250
11051866 - ALD623 550 RAL9010 + damper

250
11051867 - ALD623 900 RAL9010 + damper

250
11051868 - ALD623 1150 RAL9010 + damper

250
11051870 - ALD614 550 RAL9010 + damper

325
11051871 - ALD614 900 RAL9010 + damper

325
11051872 - ALD614 1150 RAL9010 + damper

325
11051873 - ALD614 1500 RAL9010 + damper

325
11051874 - ALD624 550 RAL9010 + damper

325
11051875 - ALD624 900 RAL9010 + damper

325
11051876 - ALD624 1150 RAL9010 + damper

325
11051877 - ALD624 1500 RAL9010 + damper

325
11053100 - ALP111 550 PLENUM ALD
11053101 - ALP111 900 PLENUM ALD
11053102 - ALP111 1150 PLENUM ALD
11053103 - ALP111 1500 PLENUM ALD
11053104 - ALP112 550 PLENUM ALD
11053105 - ALP112 900 PLENUM ALD
11053106 - ALP112 1150 PLENUM ALD
11053107 - ALP112 1500 PLENUM ALD
11053110 - ALP122 1150 PLENUM ALD
11053112 - ALP113 550 PLENUM ALD
11053114 - ALP113 1150 PLENUM ALD
11053115 - ALP113 1500 PLENUM ALD
11053116 - ALP123 550 PLENUM ALD
11053117 - ALP123 900 PLENUM ALD
11053120 - ALP114 550 PLENUM ALD
11053121 - ALP114 900 PLENUM ALD
11053122 - ALP114 1150 PLENUM ALD
11053123 - ALP114 1500 PLENUM ALD
11051863 - ALD613 900 RAL9010 + damper

250
11053113 - ALP113 900 PLENUM ALD

Products and accessories references

  • ALD611 550 ALU + damper
    ALD611 550 ALU + damper
    11051750
    76,70 € (without VAT)
  • ALD611 900 ALU + damper
    ALD611 900 ALU + damper
    11051751
    99,35 € (without VAT)
  • ALD611 1150 ALU + damper
    ALD611 1150 ALU + damper
    11051752
    124,44 € (without VAT)
  • ALD611 1500 ALU + damper
    ALD611 1500 ALU + damper
    11051753
    153,00 € (without VAT)
  • ALD612 550 ALU + damper
    ALD612 550 ALU + damper
    11051754
    96,39 € (without VAT)
  • ALD612 900 ALU + damper
    ALD612 900 ALU + damper
    11051755
    124,44 € (without VAT)
  • ALD612 1150 ALU + damper
    ALD612 1150 ALU + damper
    11051756
    156,06 € (without VAT)
  • ALD622 900 ALU + damper
    ALD622 900 ALU + damper
    11051759
    125,46 € (without VAT)
  • ALD613 550 ALU + damper
    ALD613 550 ALU + damper
    11051762
    113,22 € (without VAT)
  • ALD613 900 ALU + damper
    ALD613 900 ALU + damper
    11051763
    146,88 € (without VAT)
  • ALD613 1150 ALU + damper
    ALD613 1150 ALU + damper
    11051764
    187,68 € (without VAT)
  • ALD613 1500 ALU + damper
    ALD613 1500 ALU + damper
    11051765
    230,52 € (without VAT)
  • ALD623 900 ALU + damper
    ALD623 900 ALU + damper
    11051767
    146,88 € (without VAT)
  • ALD614 900 ALU + damper
    ALD614 900 ALU + damper
    11051771
    170,34 € (without VAT)
  • ALD614 1150 ALU + damper
    ALD614 1150 ALU + damper
    11051772
    213,18 € (without VAT)
  • ALD614 1500 ALU + damper
    ALD614 1500 ALU + damper
    11051773
    268,26 € (without VAT)
  • ALD624 900 ALU + damper
    ALD624 900 ALU + damper
    11051775
    170,34 € (without VAT)
  • ALD611 550 RAL9010 + damper
    ALD611 550 RAL9010 + damper
    11051850
    84,35 € (without VAT)
  • ALD611 900 RAL9010 + damper
    ALD611 900 RAL9010 + damper
    11051851
    109,14 € (without VAT)
  • ALD611 1150 RAL9010 + damper
    ALD611 1150 RAL9010 + damper
    11051852
    136,68 € (without VAT)
  • ALD612 550 RAL9010 + damper
    ALD612 550 RAL9010 + damper
    11051854
    105,06 € (without VAT)
  • ALD612 900 RAL9010 + damper
    ALD612 900 RAL9010 + damper
    11051855
    136,68 € (without VAT)
  • ALD612 1150 RAL9010 + damper
    ALD612 1150 RAL9010 + damper
    11051856
    174,42 € (without VAT)
  • ALD612 1500 RAL9010 + damper
    ALD612 1500 RAL9010 + damper
    11051857
    214,20 € (without VAT)
  • ALD622 550 RAL9010 + damper
    ALD622 550 RAL9010 + damper
    11051858
    122,40 € (without VAT)
  • ALD622 900 RAL9010 + damper
    ALD622 900 RAL9010 + damper
    11051859
    159,12 € (without VAT)
  • ALD622 1150 RAL9010 + damper
    ALD622 1150 RAL9010 + damper
    11051860
    201,96 € (without VAT)
  • ALD613 550 RAL9010 + damper
    ALD613 550 RAL9010 + damper
    11051862
    144,84 € (without VAT)
  • ALD613 1150 RAL9010 + damper
    ALD613 1150 RAL9010 + damper
    11051864
    239,70 € (without VAT)
  • ALD613 1500 RAL9010 + damper
    ALD613 1500 RAL9010 + damper
    11051865
    291,72 € (without VAT)
  • ALD623 550 RAL9010 + damper
    ALD623 550 RAL9010 + damper
    11051866
    109,14 € (without VAT)
  • ALD623 900 RAL9010 + damper
    ALD623 900 RAL9010 + damper
    11051867
    142,80 € (without VAT)
  • ALD623 1150 RAL9010 + damper
    ALD623 1150 RAL9010 + damper
    11051868
    180,54 € (without VAT)
  • ALD614 550 RAL9010 + damper
    ALD614 550 RAL9010 + damper
    11051870
    126,48 € (without VAT)
  • ALD614 900 RAL9010 + damper
    ALD614 900 RAL9010 + damper
    11051871
    164,22 € (without VAT)
  • ALD614 1150 RAL9010 + damper
    ALD614 1150 RAL9010 + damper
    11051872
    209,10 € (without VAT)
  • ALD614 1500 RAL9010 + damper
    ALD614 1500 RAL9010 + damper
    11051873
    261,12 € (without VAT)
  • ALD624 550 RAL9010 + damper
    ALD624 550 RAL9010 + damper
    11051874
    144,84 € (without VAT)
  • ALD624 900 RAL9010 + damper
    ALD624 900 RAL9010 + damper
    11051875
    189,72 € (without VAT)
  • ALD624 1150 RAL9010 + damper
    ALD624 1150 RAL9010 + damper
    11051876
    239,70 € (without VAT)
  • ALD624 1500 RAL9010 + damper
    ALD624 1500 RAL9010 + damper
    11051877
    298,86 € (without VAT)
  • ALP111 550 PLENUM ALD
    ALP111 550 PLENUM ALD
    11053100
    84,97 € (without VAT)
  • ALP111 900 PLENUM ALD
    ALP111 900 PLENUM ALD
    11053101
    103,02 € (without VAT)
  • ALP111 1150 PLENUM ALD
    ALP111 1150 PLENUM ALD
    11053102
    133,62 € (without VAT)
  • ALP111 1500 PLENUM ALD
    ALP111 1500 PLENUM ALD
    11053103
    156,06 € (without VAT)
  • ALP112 550 PLENUM ALD
    ALP112 550 PLENUM ALD
    11053104
    84,97 € (without VAT)
  • ALP112 900 PLENUM ALD
    ALP112 900 PLENUM ALD
    11053105
    103,02 € (without VAT)
  • ALP112 1150 PLENUM ALD
    ALP112 1150 PLENUM ALD
    11053106
    133,62 € (without VAT)
  • ALP112 1500 PLENUM ALD
    ALP112 1500 PLENUM ALD
    11053107
    156,06 € (without VAT)
  • ALP122 1150 PLENUM ALD
    ALP122 1150 PLENUM ALD
    11053110
    133,62 € (without VAT)
  • ALP113 550 PLENUM ALD
    ALP113 550 PLENUM ALD
    11053112
    97,21 € (without VAT)
  • ALP113 1150 PLENUM ALD
    ALP113 1150 PLENUM ALD
    11053114
    153,00 € (without VAT)
  • ALP113 1500 PLENUM ALD
    ALP113 1500 PLENUM ALD
    11053115
    182,58 € (without VAT)
  • ALP123 550 PLENUM ALD
    ALP123 550 PLENUM ALD
    11053116
    96,80 € (without VAT)
  • ALP123 900 PLENUM ALD
    ALP123 900 PLENUM ALD
    11053117
    118,32 € (without VAT)
  • ALP114 550 PLENUM ALD
    ALP114 550 PLENUM ALD
    11053120
    97,21 € (without VAT)
  • ALP114 900 PLENUM ALD
    ALP114 900 PLENUM ALD
    11053121
    119,34 € (without VAT)
  • ALP114 1150 PLENUM ALD
    ALP114 1150 PLENUM ALD
    11053122
    153,00 € (without VAT)
  • ALP114 1500 PLENUM ALD
    ALP114 1500 PLENUM ALD
    11053123
    182,58 € (without VAT)
  • ALD613 900 RAL9010 + damper
    ALD613 900 RAL9010 + damper
    11051863
    189,72 € (without VAT)
  • ALP113 900 PLENUM ALD
    ALP113 900 PLENUM ALD
    11053113
    119,34 € (without VAT)

1 software
