Piquage Equerre Circulaire : PEC 90°
Raccord
Piquage Equerre Circulaire : PEC 90°
Raccord

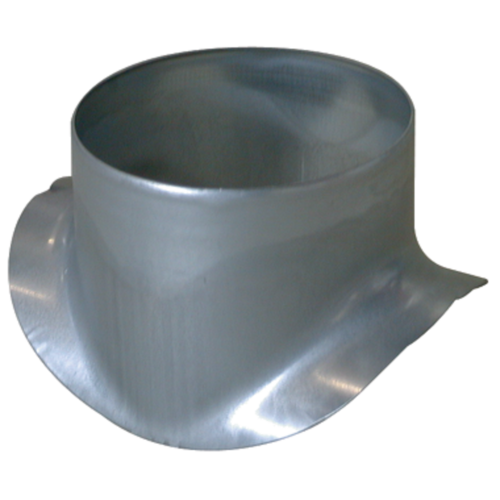

Le piquage équerre circulaire permet de réaliser un piquage à 90° sur un conduit circulaire galvanisé.
Piquage Equerre Circulaire : PEC 90°
Le piquage équerre circulaire permet de réaliser un piquage à 90° sur un conduit circulaire galvanisé. Le piquage équerre circulaire est à utiliser dans le cas de branches horizontales spécifiques aux réseaux tertiaires et il est déconseillé de l'utiliser en colonnes types habitat (utiliser des CRE montés en usine).
- gamme disponible du diamètre 80 au diamètre 900,
- acier galvanisé conforme à la norme EN 10346 garantissant la régularité du revêtement,
- classement au feu M0.
- lors de la mise en oeuvre, porter une attention particulière aux pertes de charge, aux bruits et aux débits de fuite pouvant être générés,
- facilité de montage des accessoires par emboîtage : les conduits sont femelles, les accessoires sont mâles,
- étanchéité à réaliser par l'ajout de mastic et/ou de bandes à trous,
- fixation avec le conduit à réaliser par vis autoforeuses (4 à 6 selon le diamètre).
| Matière de l'isolant |
|---|
| Références | Ø A (mm) | Ø B (mm) |
|---|---|---|
| 11094155 - PEC GALVA - D560/560 | 560 |
560 |
| 11094156 - PEC GALVA - D710/710 | 710 |
710 |
| 11094157 - PEC GALVA - D800/800 | 800 |
800 |
| 11094158 - PEC GALVA - D900/900 | 900 |
900 |
| 11094501 - PEC GALVA - D160/160 | 160 |
160 |
| 11094502 - PEC GALVA - D160/200 | 200 |
160 |
| 11094503 - PEC GALVA - D160/250 | 250 |
160 |
| 11094505 - PEC GALVA - D160/450 | 450 |
160 |
| 11094506 - PEC GALVA - D200/450 | 450 |
200 |
| 11094507 - PEC GALVA - D160/500 | 500 |
160 |
| 11094508 - PEC GALVA - D200/200 | 200 |
200 |
| 11094509 - PEC GALVA - D200/250 | 250 |
200 |
| 11094511 - PEC GALVA - D315/450 | 450 |
315 |
| 11094513 - PEC GALVA - D200/500 | 500 |
200 |
| 11094514 - PEC GALVA - D250/250 | 250 |
250 |
| 11094515 - PEC GALVA - D250/315 | 315 |
250 |
| 11094518 - PEC GALVA - D250/500 | 500 |
250 |
| 11094519 - PEC GALVA - D315/315 | 315 |
315 |
| 11094520 - PEC GALVA - D450/450 | 450 |
450 |
| 11094521 - PEC GALVA - D315/355 | 355 |
315 |
| 11094522 - PEC GALVA - D315/400 | 400 |
315 |
| 11094523 - PEC GALVA - D315/500 | 500 |
315 |
| 11094524 - PEC GALVA - D355/355 | 355 |
355 |
| 11094525 - PEC GALVA - D355/400 | 400 |
355 |
| 11094526 - PEC GALVA - D355/500 | 500 |
355 |
| 11094527 - PEC GALVA - D400/400 | 400 |
400 |
| 11094528 - PEC GALVA - D400/500 | 500 |
400 |
| 11094529 - PEC GALVA - D400/630 | 630 |
400 |
| 11094530 - PEC GALVA - D500/500 | 500 |
500 |
| 11094531 - PEC GALVA - D500/630 | 630 |
500 |
| 11094510 - PEC GALVA - D200/315-355 (fds) | ||
| 11094545 - PEC GALVA - D100/250-315 (fds) | ||
| 11094579 - PEC GALVA - D150/150-160 (fds) | ||
| 11094532 - PEC GALVA - D450/500 | 500 |
450 |
| 11094533 - PEC GALVA - D630/630 | 630 |
630 |
| 11094534 - PEC GALVA - D450/630 | 630 |
450 |
| 11094535 - PEC GALVA - D160/630 | 630 |
160 |
| 11094536 - PEC GALVA - D200/630 | 630 |
200 |
| 11094537 - PEC GALVA - D250/630 | 630 |
250 |
| 11094538 - PEC GALVA - D315/630 | 630 |
315 |
| 11094539 - PEC GALVA - D355/630 | 630 |
355 |
| 11094541 - PEC GALVA - D125/125 | 125 |
125 |
| 11094542 - PEC GALVA - D125/150-160 | 160 |
125 |
| 11094543 - PEC GALVA - D125/200 | 200 |
125 |
| 11094548 - PEC GALVA - D100/630 | 630 |
100 |
| 11094549 - PEC GALVA - D125/630 | 630 |
125 |
| 11094550 - PEC GALVA - D355/450 | 450 |
355 |
| 11094551 - PEC GALVA - D400/450 | 450 |
400 |
| 11094570 - PEC GALVA - D80/80 | 80 |
80 |
| 11094571 - PEC GALVA - D80/100 | 100 |
80 |
| 11094572 - PEC GALVA - D80/125 | 125 |
80 |
| 11094574 - PEC GALVA - D80/250-355 | 250 - 355 |
80 |
| 11094575 - PEC GALVA - D100/100 | 100 |
100 |
| 11094576 - PEC GALVA - D100/125 | 125 |
100 |
| 11094577 - PEC GALVA - D100/150-160 | 160 |
100 |
| 11094578 - PEC GALVA - D100/200 | 200 |
100 |
| 11094592 - PEC GALVA - D80/150-160 | 160 |
80 |
| 11094593 - PEC GALVA - D80/200 | 200 |
80 |
| 11094594 - PEC GALVA - D100/250 | 250 |
100 |
| 11094595 - PEC GALVA - D100/315-355 | 315 - 355 |
100 |
| 11094596 - PEC GALVA - D100/400-630 | 400 - 630 |
100 |
| 11094597 - PEC GALVA - D125/250 | 250 |
125 |
| 11094598 - PEC GALVA - D125/315-355 | 315 - 355 |
125 |
| 11094599 - PEC GALVA - D125/400-630 | 400 - 630 |
125 |
| 11094600 - PEC GALVA - D160/315 | 315 |
160 |
| 11094807 - PEC GALVA - D160/355-450 | 355 - 450 |
160 |
| 11094808 - PEC GALVA - D200/315 | 315 |
200 |
| 11094809 - PEC GALVA - D200/355-400 | 355 - 400 |
200 |
| 11094810 - PEC GALVA - D250/355-400 | 355 - 400 |
250 |
| 11094811 - PEC GALVA - D250/450-560 | 450 - 560 |
250 |
| 11097001 - PEC GALVA - D100/560 | 560 |
100 |
| 11097002 - PEC GALVA - D125/560 | 560 |
125 |
| 11097003 - PEC GALVA - D160/560 | 560 |
160 |
| 11097004 - PEC GALVA - D160/710 | 710 |
160 |
| 11097005 - PEC GALVA - D160/800 | 800 |
160 |
| 11097006 - PEC GALVA - D160/900 | 900 |
160 |
| 11097008 - PEC GALVA - D200/560 | 560 |
200 |
| 11097009 - PEC GALVA - D200/710 | 710 |
200 |
| 11097010 - PEC GALVA - D200/800 | 800 |
200 |
| 11097011 - PEC GALVA - D200/900 | 900 |
200 |
| 11097014 - PEC GALVA - D250/560 | 560 |
250 |
| 11097015 - PEC GALVA - D250/710 | 710 |
250 |
| 11097016 - PEC GALVA - D250/800 | 800 |
250 |
| 11097017 - PEC GALVA - D250/900 | 900 |
250 |
| 11097021 - PEC GALVA - D315/560 | 560 |
315 |
| 11097022 - PEC GALVA - D315/710 | 710 |
315 |
| 11097023 - PEC GALVA - D315/800 | 800 |
315 |
| 11097024 - PEC GALVA - D315/900 | 900 |
315 |
| 11097028 - PEC GALVA - D355/560 | 560 |
355 |
| 11097029 - PEC GALVA - D355/710 | 710 |
355 |
| 11097030 - PEC GALVA - D355/800 | 800 |
355 |
| 11097031 - PEC GALVA - D355/900 | 900 |
355 |
| 11097035 - PEC GALVA - D400/560 | 560 |
400 |
| 11097036 - PEC GALVA - D400/710 | 710 |
400 |
| 11097037 - PEC GALVA - D400/800 | 800 |
400 |
| 11097038 - PEC GALVA - D400/900 | 900 |
400 |
| 11097042 - PEC GALVA - D450/560 | 560 |
450 |
| 11097043 - PEC GALVA - D450/710 | 710 |
450 |
| 11097044 - PEC GALVA - D450/800 | 800 |
450 |
| 11097045 - PEC GALVA - D450/900 | 900 |
450 |
| 11097049 - PEC GALVA - D500/560 | 560 |
500 |
| 11097050 - PEC GALVA - D500/710 | 710 |
500 |
| 11097051 - PEC GALVA - D500/800 | 800 |
500 |
| 11097052 - PEC GALVA - D500/900 | 900 |
500 |
| 11097056 - PEC GALVA - D560/630 | 630 |
560 |
| 11097057 - PEC GALVA - D560/710 | 710 |
560 |
| 11097058 - PEC GALVA - D560/800 | 800 |
560 |
| 11097059 - PEC GALVA - D560/900 | 900 |
560 |
| 11097063 - PEC GALVA - D630/710 | 710 |
630 |
| 11097064 - PEC GALVA - D630/800 | 800 |
630 |
| 11097065 - PEC GALVA - D630/900 | 900 |
630 |
| 11097069 - PEC GALVA - D710/800 | 800 |
710 |
| 11097070 - PEC GALVA - D710/900 | 900 |
710 |
| 11097074 - PEC GALVA - D800/900 | 900 |
800 |
| Références | Classement au feu |
|---|---|
| 11094155 - PEC GALVA - D560/560 | M0 |
| 11094156 - PEC GALVA - D710/710 | M0 |
| 11094157 - PEC GALVA - D800/800 | M0 |
| 11094158 - PEC GALVA - D900/900 | M0 |
| 11094501 - PEC GALVA - D160/160 | M0 |
| 11094502 - PEC GALVA - D160/200 | M0 |
| 11094503 - PEC GALVA - D160/250 | M0 |
| 11094505 - PEC GALVA - D160/450 | M0 |
| 11094506 - PEC GALVA - D200/450 | M0 |
| 11094507 - PEC GALVA - D160/500 | M0 |
| 11094508 - PEC GALVA - D200/200 | M0 |
| 11094509 - PEC GALVA - D200/250 | M0 |
| 11094511 - PEC GALVA - D315/450 | M0 |
| 11094513 - PEC GALVA - D200/500 | M0 |
| 11094514 - PEC GALVA - D250/250 | M0 |
| 11094515 - PEC GALVA - D250/315 | M0 |
| 11094518 - PEC GALVA - D250/500 | M0 |
| 11094519 - PEC GALVA - D315/315 | M0 |
| 11094520 - PEC GALVA - D450/450 | M0 |
| 11094521 - PEC GALVA - D315/355 | M0 |
| 11094522 - PEC GALVA - D315/400 | M0 |
| 11094523 - PEC GALVA - D315/500 | M0 |
| 11094524 - PEC GALVA - D355/355 | M0 |
| 11094525 - PEC GALVA - D355/400 | M0 |
| 11094526 - PEC GALVA - D355/500 | M0 |
| 11094527 - PEC GALVA - D400/400 | M0 |
| 11094528 - PEC GALVA - D400/500 | M0 |
| 11094529 - PEC GALVA - D400/630 | M0 |
| 11094530 - PEC GALVA - D500/500 | M0 |
| 11094531 - PEC GALVA - D500/630 | M0 |
| 11094510 - PEC GALVA - D200/315-355 (fds) | |
| 11094545 - PEC GALVA - D100/250-315 (fds) | |
| 11094579 - PEC GALVA - D150/150-160 (fds) | |
| 11094532 - PEC GALVA - D450/500 | M0 |
| 11094533 - PEC GALVA - D630/630 | M0 |
| 11094534 - PEC GALVA - D450/630 | M0 |
| 11094535 - PEC GALVA - D160/630 | M0 |
| 11094536 - PEC GALVA - D200/630 | M0 |
| 11094537 - PEC GALVA - D250/630 | M0 |
| 11094538 - PEC GALVA - D315/630 | M0 |
| 11094539 - PEC GALVA - D355/630 | M0 |
| 11094541 - PEC GALVA - D125/125 | M0 |
| 11094542 - PEC GALVA - D125/150-160 | M0 |
| 11094543 - PEC GALVA - D125/200 | M0 |
| 11094548 - PEC GALVA - D100/630 | M0 |
| 11094549 - PEC GALVA - D125/630 | M0 |
| 11094550 - PEC GALVA - D355/450 | M0 |
| 11094551 - PEC GALVA - D400/450 | M0 |
| 11094570 - PEC GALVA - D80/80 | M0 |
| 11094571 - PEC GALVA - D80/100 | M0 |
| 11094572 - PEC GALVA - D80/125 | M0 |
| 11094574 - PEC GALVA - D80/250-355 | M0 |
| 11094575 - PEC GALVA - D100/100 | M0 |
| 11094576 - PEC GALVA - D100/125 | M0 |
| 11094577 - PEC GALVA - D100/150-160 | M0 |
| 11094578 - PEC GALVA - D100/200 | M0 |
| 11094592 - PEC GALVA - D80/150-160 | M0 |
| 11094593 - PEC GALVA - D80/200 | M0 |
| 11094594 - PEC GALVA - D100/250 | M0 |
| 11094595 - PEC GALVA - D100/315-355 | M0 |
| 11094596 - PEC GALVA - D100/400-630 | M0 |
| 11094597 - PEC GALVA - D125/250 | M0 |
| 11094598 - PEC GALVA - D125/315-355 | M0 |
| 11094599 - PEC GALVA - D125/400-630 | M0 |
| 11094600 - PEC GALVA - D160/315 | M0 |
| 11094807 - PEC GALVA - D160/355-450 | M0 |
| 11094808 - PEC GALVA - D200/315 | M0 |
| 11094809 - PEC GALVA - D200/355-400 | M0 |
| 11094810 - PEC GALVA - D250/355-400 | M0 |
| 11094811 - PEC GALVA - D250/450-560 | M0 |
| 11097001 - PEC GALVA - D100/560 | M0 |
| 11097002 - PEC GALVA - D125/560 | M0 |
| 11097003 - PEC GALVA - D160/560 | M0 |
| 11097004 - PEC GALVA - D160/710 | M0 |
| 11097005 - PEC GALVA - D160/800 | M0 |
| 11097006 - PEC GALVA - D160/900 | M0 |
| 11097008 - PEC GALVA - D200/560 | M0 |
| 11097009 - PEC GALVA - D200/710 | M0 |
| 11097010 - PEC GALVA - D200/800 | M0 |
| 11097011 - PEC GALVA - D200/900 | M0 |
| 11097014 - PEC GALVA - D250/560 | M0 |
| 11097015 - PEC GALVA - D250/710 | M0 |
| 11097016 - PEC GALVA - D250/800 | M0 |
| 11097017 - PEC GALVA - D250/900 | M0 |
| 11097021 - PEC GALVA - D315/560 | M0 |
| 11097022 - PEC GALVA - D315/710 | M0 |
| 11097023 - PEC GALVA - D315/800 | M0 |
| 11097024 - PEC GALVA - D315/900 | M0 |
| 11097028 - PEC GALVA - D355/560 | M0 |
| 11097029 - PEC GALVA - D355/710 | M0 |
| 11097030 - PEC GALVA - D355/800 | M0 |
| 11097031 - PEC GALVA - D355/900 | M0 |
| 11097035 - PEC GALVA - D400/560 | M0 |
| 11097036 - PEC GALVA - D400/710 | M0 |
| 11097037 - PEC GALVA - D400/800 | M0 |
| 11097038 - PEC GALVA - D400/900 | M0 |
| 11097042 - PEC GALVA - D450/560 | M0 |
| 11097043 - PEC GALVA - D450/710 | M0 |
| 11097044 - PEC GALVA - D450/800 | M0 |
| 11097045 - PEC GALVA - D450/900 | M0 |
| 11097049 - PEC GALVA - D500/560 | M0 |
| 11097050 - PEC GALVA - D500/710 | M0 |
| 11097051 - PEC GALVA - D500/800 | M0 |
| 11097052 - PEC GALVA - D500/900 | M0 |
| 11097056 - PEC GALVA - D560/630 | M0 |
| 11097057 - PEC GALVA - D560/710 | M0 |
| 11097058 - PEC GALVA - D560/800 | M0 |
| 11097059 - PEC GALVA - D560/900 | M0 |
| 11097063 - PEC GALVA - D630/710 | M0 |
| 11097064 - PEC GALVA - D630/800 | M0 |
| 11097065 - PEC GALVA - D630/900 | M0 |
| 11097069 - PEC GALVA - D710/800 | M0 |
| 11097070 - PEC GALVA - D710/900 | M0 |
| 11097074 - PEC GALVA - D800/900 | M0 |
