ISONE® 2.1 rectangulaire
Clapet coupe-feu
ISONE® 2.1 rectangulaire
Clapet coupe-feu
Les clapets ISONE® 2.1 sont faciles à choisir : un seul modèle pour toutes les cloisons et tous les degrés coupe-feu.
ISONE® 2.1 rectangulaire
Clapets coupe-feu destinés aux batiments tertiaires (ERP, IGH)
Ils restituent le degré coupe-feu des cloisons traversées par une gaine de ventilation.
Equipés de fusible thermique de déclenchement 70°C par défaut
Commandables par bobine électromagnétique 24/48VCC à émission, 24VCC ou 48VCC à rupture
Moteur de réarmement 24-48 VCC/VDC
Degré coupe-feu jusqu'à 120 minutes sur toutes les cloisons usuelles

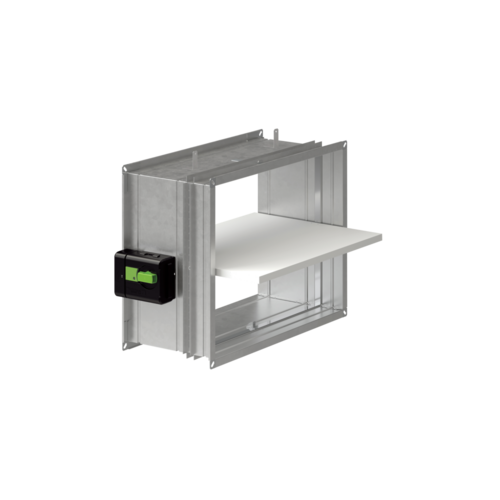

ISONE® 2.1 Rectangulaire PM:
- (LxH) : de 200x100 à 800x600 mm,

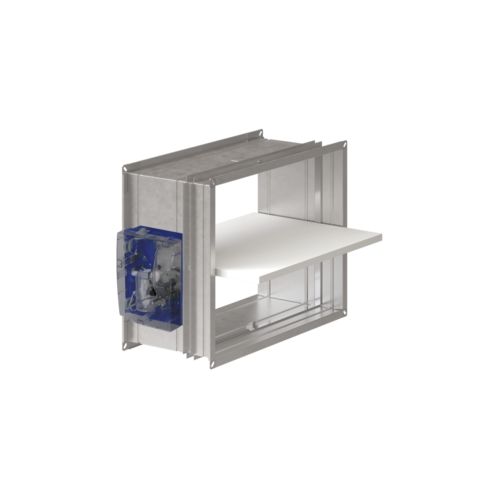

ISONE® 2.1 Rectangulaire GM :
- (LxH) : L>800, H>600, jusqu’à 1500x500 / 1000x1000.
Ils restituent le degré coupe-feu des cloisons traversées par une gaine de ventilation.
Equipés de fusible thermique de déclenchement 70°C par défaut
Commandables par bobine électromagnétique 24/48VCC à émission, 24VCC ou 48VCC à rupture
Moteur de réarmement 24-48 VCC/VDC
Degré coupe-feu jusqu'à 120 minutes sur toutes les cloisons usuelles
ISONE® 2.1 Rectangulaire PM:
- (LxH) : de 200x100 à 800x600 mm,
ISONE® 2.1 Rectangulaire GM :
- (LxH) : L>800, H>600, jusqu’à 1500x500 / 1000x1000.
Les + produits
- Un seul modèle de clapet pour toutes les cloisons : facile à choisir
- Poignée ergonomique de réarmement rapide : 2 secondes suffisent
- Axe inox en option pour environnements difficiles
- Boitier de commande déporté en option, 0.7m ou 3m
- Application ALDES SecurONE pour collecte et partage des données du clapet
- Mécanisme unique, du clapet le plus simple au plus équipé : facile à choisir, installer et maintenir
- Kit Easynstall pour installation facile en cloison légère
- Clapet universel
- Boitier mécanisme ergonomique : poignée de réarmement rapide, large boitier de connection électrique.
- Logiciel Conceptor Ventilation : garantie de résultat grace aux calcules de pertes de charges du réseau complet.
- Le clapet est ouvert en position d'attente.
- Il s'ouvre sur ordre du CMSI ou de la canne thermique et passe ainsi en position de sécurité (fermé).
- Il est réarmable à distance grace à la motorisation.
- Certifié et conforme NF S 61937-5 et NF537
- Marqué CE selon EN 15650 : 1812-CPR-1837
- Etanchéité classe C selon EN 1751 en standard
- EI 120 S -500 Pa sur mur et dalle béton, béton cellulaire, plaque de platre type F, montage déporté PROMAT/ Geostaff
- EXAP EN 15882-2:2015 : règles X.45 et X.46
- Gamme de 200x100 mm à 1500x500 / 1000² mm
- Mécanisme 100% évolutif
- Clapet unique adaptable sur toutes les parois
- Installation sur cloison légère avec chevetre post montage
- Poignée de réarmement indiquant la position du clapet
- Large boitier de raccordement électrique
- Axe inox en option pour environnement hostile
- Kit Easynstall pour installation facile en cloison légère
- Boitier de commande déporté en option
- Faible pertes de charges
- Installation sans scellement sur cloison légère, même avec chevetre post-montage,
-
Montage encastré sur :
- Mur/ dalle béton et béton cellulaire
- Mur carreaux de plâtre
- Plaques de plâtre type A (1h) et type F (2h)
- Montage déporté sur PROMAT / GEOSTAF grace au kit EASYNSTAL,
- Positionnement sur cloisons légères grace aux pattes d'installation,
- Kit Easynstall pour montage facilité des clapets rectangulaires en cloison légère type A (60 minutes),
- Pièce d'adaptation pour raccordement aux réseaux oblongs,
- EXAP EN 15882-2:2015, règles X.45 et X.46 : cotes de réservation étendues,
- Respecter les rapports de classement au feu lors de la mise en oeuvre.
| Références | Section de passage d'air libre (dm²) | Matière de l'isolant |
|---|---|---|
| 11043146 - ISONE®2.1 FTE70 RECT PM | 0,9 (Min) - 43 (Max) |
|
| 11043147 - ISONE®2.1 FTE70 RECT GM | 10,3 (Min) - 90,8 (Max) |
|
| 11040000 - ISONE2.1 200X200 FTE70+FDCU1 | ||
| 11040001 - ISONE2.1 200X250 FTE70+FDCU1 | ||
| 11040002 - ISONE2.1 200X300 FTE70+FDCU1 | ||
| 11040003 - ISONE2.1 250X200 FTE70+FDCU1 | ||
| 11040004 - ISONE2.1 250X250 FTE70+FDCU1 | ||
| 11040005 - ISONE2.1 250X300 FTE70+FDCU1 | ||
| 11040006 - ISONE2.1 300X200 FTE70+FDCU1 | ||
| 11040007 - ISONE2.1 300X250 FTE70+FDCU1 | ||
| 11040008 - ISONE2.1 300X300 FTE70+FDCU1 | ||
| 11040009 - ISONE2.1 350X200 FTE70+FDCU1 | ||
| 11040010 - ISONE2.1 350X250 FTE70+FDCU1 | ||
| 11040011 - ISONE2.1 350X300 FTE70+FDCU1 | ||
| 11040012 - ISONE2.1 400X200 FTE70+FDCU1 | ||
| 11040013 - ISONE2.1 400X250 FTE70+FDCU1 | ||
| 11040014 - ISONE2.1 400X300 FTE70+FDCU1 | ||
| 11040015 - ISONE2.1 450X200 FTE70+FDCU1 | ||
| 11040016 - ISONE2.1 450X250 FTE70+FDCU1 | ||
| 11040017 - ISONE2.1 450X300 FTE70+FDCU1 | ||
| 11040018 - ISONE2.1 500X200 FTE70+FDCU1 | ||
| 11040019 - ISONE2.1 500X250 FTE70+FDCU1 | ||
| 11040020 - ISONE2.1 500X300 FTE70+FDCU1 | ||
| 11040021 - ISONE2.1 550X200 FTE70+FDCU1 | ||
| 11040022 - ISONE2.1 550X250 FTE70+FDCU1 | ||
| 11040023 - ISONE2.1 550X300 FTE70+FDCU1 | ||
| 11040024 - ISONE2.1 600X200 FTE70+FDCU1 | ||
| 11040025 - ISONE2.1 600X250 FTE70+FDCU1 | ||
| 11040026 - ISONE2.1 600X300 FTE70+FDCU1 | ||
| 11040027 - ISONE2.1 300X150 FTE70+FDCU1 | ||
| 11040028 - ISONE2.1 350X350 FTE70+FDCU1 | ||
| 11040029 - ISONE2.1 400X400 FTE70+FDCU1 | ||
| 11040030 - ISONE2.1 500X500 FTE70+FDCU1 | ||
| 11040031 - ISONE2.1 600X600 FTE70+FDCU1 | ||
| 11040032 - ISONE2.1 500X400 FTE70+FDCU1 | ||
| 11040033 - ISONE2.1 600X400 FTE70+FDCU1 | ||
| 11040034 - ISONE2.1 200X200 FTE70 DECLENCHEUR MANU | ||
| 11040035 - ISONE2.1 200X250 FTE70 DECLENCHEUR MANU | ||
| 11040036 - ISONE2.1 200X300 FTE70 DECLENCHEUR MANU | ||
| 11040037 - ISONE2.1 250X200 FTE70 DECLENCHEUR MANU | ||
| 11040038 - ISONE2.1 250X250 FTE70 DECLENCHEUR MANU | ||
| 11040039 - ISONE2.1 250X300 FTE70 DECLENCHEUR MANU | ||
| 11040040 - ISONE2.1 300X200 FTE70 DECLENCHEUR MANU | ||
| 11040041 - ISONE2.1 300X250 FTE70 DECLENCHEUR MANU | ||
| 11040042 - ISONE2.1 300X300 FTE70 DECLENCHEUR MANU | ||
| 11040043 - ISONE2.1 350X200 FTE70 DECLENCHEUR MANU | ||
| 11040044 - ISONE2.1 350X250 FTE70 DECLENCHEUR MANU | ||
| 11040045 - ISONE2.1 350X300 FTE70 DECLENCHEUR MANU | ||
| 11040046 - ISONE2.1 400X200 FTE70 DECLENCHEUR MANU | ||
| 11040047 - ISONE2.1 400X250 FTE70 DECLENCHEUR MANU | ||
| 11040048 - ISONE2.1 400X300 FTE70 DECLENCHEUR MANU | ||
| 11040049 - ISONE2.1 450X200 FTE70 DECLENCHEUR MANU | ||
| 11040050 - ISONE2.1 450X250 FTE70 DECLENCHEUR MANU | ||
| 11040051 - ISONE2.1 450X300 FTE70 DECLENCHEUR MANU | ||
| 11040052 - ISONE2.1 500X200 FTE70 DECLENCHEUR MANU | ||
| 11040053 - ISONE2.1 500X250 FTE70 DECLENCHEUR MANU | ||
| 11040054 - ISONE2.1 500X300 FTE70 DECLENCHEUR MANU | ||
| 11040055 - ISONE2.1 550X200 FTE70 DECLENCHEUR MANU | ||
| 11040056 - ISONE2.1 550X250 FTE70 DECLENCHEUR MANU | ||
| 11040057 - ISONE2.1 550X300 FTE70 DECLENCHEUR MANU | ||
| 11040058 - ISONE2.1 600X200 FTE70 DECLENCHEUR MANU | ||
| 11040059 - ISONE2.1 600X250 FTE70 DECLENCHEUR MANU | ||
| 11040060 - ISONE2.1 600X300 FTE70 DECLENCHEUR MANU | ||
| 11040061 - ISONE2.1 300X150 FTE70 DECLENCHEUR MANU | ||
| 11040062 - ISONE2.1 350X350 FTE70 DECLENCHEUR MANU | ||
| 11040063 - ISONE2.1 400X400 FTE70 DECLENCHEUR MANU | ||
| 11040064 - ISONE2.1 500X500 FTE70 DECLENCHEUR MANU | ||
| 11040065 - ISONE2.1 600X600 FTE70 DECLENCHEUR MANU | ||
| 11040066 - ISONE2.1 500X400 FTE70 DECLENCHEUR MANU | ||
| 11040067 - ISONE2.1 600X400 FTE70 DECLENCHEUR MANU | ||
| 11040068 - ISONE200X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040069 - ISONE200X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040070 - ISONE200X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040071 - ISONE250X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040072 - ISONE250X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040073 - ISONE250X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040074 - ISONE300X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040075 - ISONE300X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040076 - ISONE300X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040077 - ISONE350X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040078 - ISONE350X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040079 - ISONE350X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040080 - ISONE400X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040081 - ISONE400X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040082 - ISONE400X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040083 - ISONE450X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040084 - ISONE450X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040085 - ISONE450X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040086 - ISONE500X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040087 - ISONE500X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040088 - ISONE500X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040089 - ISONE550X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040090 - ISONE550X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040091 - ISONE550X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040092 - ISONE600X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040093 - ISONE600X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040094 - ISONE600X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040095 - ISONE300X150 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040096 - ISONE350X350 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040097 - ISONE400X400 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040098 - ISONE500X500 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040099 - ISONE600X600 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040100 - ISONE500X400 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040101 - ISONE600X400 FTE70+VDS24/48+FDCU1/2+EHOP | ||
| 11040102 - ISONE2.1 200X200 FTE70+FDCU1/2 | ||
| 11040103 - ISONE2.1 200X250 FTE70+FDCU1/2 | ||
| 11040104 - ISONE2.1 200X300 FTE70+FDCU1/2 | ||
| 11040105 - ISONE2.1 250X200 FTE70+FDCU1/2 | ||
| 11040106 - ISONE2.1 250X250 FTE70+FDCU1/2 | ||
| 11040107 - ISONE2.1 250X300 FTE70+FDCU1/2 | ||
| 11040108 - ISONE2.1 300X200 FTE70+FDCU1/2 | ||
| 11040109 - ISONE2.1 300X250 FTE70+FDCU1/2 | ||
| 11040110 - ISONE2.1 300X300 FTE70+FDCU1/2 | ||
| 11040111 - ISONE2.1 350X200 FTE70+FDCU1/2 | ||
| 11040112 - ISONE2.1 350X250 FTE70+FDCU1/2 | ||
| 11040113 - ISONE2.1 350X300 FTE70+FDCU1/2 | ||
| 11040114 - ISONE2.1 400X200 FTE70+FDCU1/2 | ||
| 11040115 - ISONE2.1 400X250 FTE70+FDCU1/2 | ||
| 11040116 - ISONE2.1 400X300 FTE70+FDCU1/2 | ||
| 11040117 - ISONE2.1 450X200 FTE70+FDCU1/2 | ||
| 11040118 - ISONE2.1 450X250 FTE70+FDCU1/2 | ||
| 11040119 - ISONE2.1 450X300 FTE70+FDCU1/2 | ||
| 11040120 - ISONE2.1 500X200 FTE70+FDCU1/2 | ||
| 11040121 - ISONE2.1 500X250 FTE70+FDCU1/2 | ||
| 11040122 - ISONE2.1 500X300 FTE70+FDCU1/2 | ||
| 11040123 - ISONE2.1 550X200 FTE70+FDCU1/2 | ||
| 11040124 - ISONE2.1 550X250 FTE70+FDCU1/2 | ||
| 11040125 - ISONE2.1 550X300 FTE70+FDCU1/2 | ||
| 11040126 - ISONE2.1 600X200 FTE70+FDCU1/2 | ||
| 11040127 - ISONE2.1 600X250 FTE70+FDCU1/2 | ||
| 11040128 - ISONE2.1 600X300 FTE70+FDCU1/2 | ||
| 11040129 - ISONE2.1 300X150 FTE70+FDCU1/2 | ||
| 11040130 - ISONE2.1 350X350 FTE70+FDCU1/2 | ||
| 11040131 - ISONE2.1 400X400 FTE70+FDCU1/2 | ||
| 11040132 - ISONE2.1 500X500 FTE70+FDCU1/2 | ||
| 11040133 - ISONE2.1 600X600 FTE70+FDCU1/2 | ||
| 11040134 - ISONE2.1 500X400 FTE70+FDCU1/2 | ||
| 11040135 - ISONE2.1 600X400 FTE70+FDCU1/2 |
> ISONE®2.1 GM : >800x600 à 1500x500 / 1000² > ISONE®2.1 PM : 200x100 à 800x600
| Références | E (mm) | F (mm) | G (mm) | H (mm) | L (mm) | ZA (mm) | ZB (mm) | Lmin x Hmin (mm) | Lmax x Hmax (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 11043146 - ISONE®2.1 FTE70 RECT PM | 25 |
169 |
71 |
Y/2 -122 |
200 x 100 |
800 x 600 |
|||
| 11043147 - ISONE®2.1 FTE70 RECT GM | 50 |
242 |
99 |
Y/2 -122 |
Y/2 -292 |
1500 x 500 / 1000 x 1000 |
|||
| 11040000 - ISONE2.1 200X200 FTE70+FDCU1 | 25 |
169 |
71 |
200 |
200 |
Y/2 -122 |
|||
| 11040001 - ISONE2.1 200X250 FTE70+FDCU1 | 25 |
169 |
71 |
250 |
200 |
Y/2 -122 |
|||
| 11040002 - ISONE2.1 200X300 FTE70+FDCU1 | 25 |
169 |
71 |
300 |
200 |
Y/2 -122 |
|||
| 11040003 - ISONE2.1 250X200 FTE70+FDCU1 | 25 |
169 |
71 |
200 |
250 |
Y/2 -122 |
|||
| 11040004 - ISONE2.1 250X250 FTE70+FDCU1 | 25 |
169 |
71 |
250 |
250 |
Y/2 -122 |
|||
| 11040005 - ISONE2.1 250X300 FTE70+FDCU1 | 25 |
169 |
71 |
300 |
250 |
Y/2 -122 |
|||
| 11040006 - ISONE2.1 300X200 FTE70+FDCU1 | 25 |
169 |
71 |
200 |
300 |
Y/2 -122 |
|||
| 11040007 - ISONE2.1 300X250 FTE70+FDCU1 | 25 |
169 |
71 |
250 |
300 |
Y/2 -122 |
|||
| 11040008 - ISONE2.1 300X300 FTE70+FDCU1 | 25 |
169 |
71 |
300 |
300 |
Y/2 -122 |
|||
| 11040009 - ISONE2.1 350X200 FTE70+FDCU1 | 25 |
169 |
71 |
200 |
350 |
Y/2 -122 |
|||
| 11040010 - ISONE2.1 350X250 FTE70+FDCU1 | 25 |
169 |
71 |
250 |
350 |
Y/2 -122 |
|||
| 11040011 - ISONE2.1 350X300 FTE70+FDCU1 | 25 |
169 |
71 |
300 |
350 |
Y/2 -122 |
|||
| 11040012 - ISONE2.1 400X200 FTE70+FDCU1 | 25 |
169 |
71 |
200 |
400 |
Y/2 -122 |
|||
| 11040013 - ISONE2.1 400X250 FTE70+FDCU1 | 25 |
169 |
71 |
250 |
400 |
Y/2 -122 |
|||
| 11040014 - ISONE2.1 400X300 FTE70+FDCU1 | 25 |
169 |
71 |
300 |
400 |
Y/2 -122 |
|||
| 11040015 - ISONE2.1 450X200 FTE70+FDCU1 | 25 |
169 |
71 |
200 |
450 |
Y/2 -122 |
|||
| 11040016 - ISONE2.1 450X250 FTE70+FDCU1 | 25 |
169 |
71 |
250 |
450 |
Y/2 -122 |
|||
| 11040017 - ISONE2.1 450X300 FTE70+FDCU1 | 25 |
169 |
71 |
300 |
450 |
Y/2 -122 |
|||
| 11040018 - ISONE2.1 500X200 FTE70+FDCU1 | 25 |
169 |
71 |
200 |
500 |
Y/2 -122 |
|||
| 11040019 - ISONE2.1 500X250 FTE70+FDCU1 | 25 |
169 |
71 |
250 |
500 |
Y/2 -122 |
|||
| 11040020 - ISONE2.1 500X300 FTE70+FDCU1 | 25 |
169 |
71 |
300 |
500 |
Y/2 -122 |
|||
| 11040021 - ISONE2.1 550X200 FTE70+FDCU1 | 25 |
169 |
71 |
200 |
550 |
Y/2 -122 |
|||
| 11040022 - ISONE2.1 550X250 FTE70+FDCU1 | 25 |
169 |
71 |
250 |
550 |
Y/2 -122 |
|||
| 11040023 - ISONE2.1 550X300 FTE70+FDCU1 | 25 |
169 |
71 |
300 |
550 |
Y/2 -122 |
|||
| 11040024 - ISONE2.1 600X200 FTE70+FDCU1 | 25 |
169 |
71 |
200 |
600 |
Y/2 -122 |
|||
| 11040025 - ISONE2.1 600X250 FTE70+FDCU1 | 25 |
169 |
71 |
250 |
600 |
Y/2 -122 |
|||
| 11040026 - ISONE2.1 600X300 FTE70+FDCU1 | 25 |
169 |
71 |
300 |
600 |
Y/2 -122 |
|||
| 11040027 - ISONE2.1 300X150 FTE70+FDCU1 | 25 |
169 |
71 |
150 |
300 |
Y/2 -122 |
|||
| 11040028 - ISONE2.1 350X350 FTE70+FDCU1 | 25 |
169 |
71 |
350 |
350 |
Y/2 -122 |
|||
| 11040029 - ISONE2.1 400X400 FTE70+FDCU1 | 25 |
169 |
71 |
400 |
400 |
Y/2 -122 |
|||
| 11040030 - ISONE2.1 500X500 FTE70+FDCU1 | 25 |
169 |
71 |
500 |
500 |
Y/2 -122 |
|||
| 11040031 - ISONE2.1 600X600 FTE70+FDCU1 | 25 |
169 |
71 |
600 |
600 |
Y/2 -122 |
|||
| 11040032 - ISONE2.1 500X400 FTE70+FDCU1 | 25 |
169 |
71 |
400 |
500 |
Y/2 -122 |
|||
| 11040033 - ISONE2.1 600X400 FTE70+FDCU1 | 25 |
169 |
71 |
400 |
600 |
Y/2 -122 |
|||
| 11040034 - ISONE2.1 200X200 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
200 |
200 |
Y/2 -122 |
|||
| 11040035 - ISONE2.1 200X250 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
250 |
200 |
Y/2 -122 |
|||
| 11040036 - ISONE2.1 200X300 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
300 |
200 |
Y/2 -122 |
|||
| 11040037 - ISONE2.1 250X200 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
200 |
250 |
Y/2 -122 |
|||
| 11040038 - ISONE2.1 250X250 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
250 |
250 |
Y/2 -122 |
|||
| 11040039 - ISONE2.1 250X300 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
300 |
250 |
Y/2 -122 |
|||
| 11040040 - ISONE2.1 300X200 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
200 |
300 |
Y/2 -122 |
|||
| 11040041 - ISONE2.1 300X250 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
250 |
300 |
Y/2 -122 |
|||
| 11040042 - ISONE2.1 300X300 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
300 |
300 |
Y/2 -122 |
|||
| 11040043 - ISONE2.1 350X200 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
200 |
350 |
Y/2 -122 |
|||
| 11040044 - ISONE2.1 350X250 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
250 |
350 |
Y/2 -122 |
|||
| 11040045 - ISONE2.1 350X300 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
300 |
350 |
Y/2 -122 |
|||
| 11040046 - ISONE2.1 400X200 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
200 |
400 |
Y/2 -122 |
|||
| 11040047 - ISONE2.1 400X250 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
250 |
400 |
Y/2 -122 |
|||
| 11040048 - ISONE2.1 400X300 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
300 |
400 |
Y/2 -122 |
|||
| 11040049 - ISONE2.1 450X200 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
200 |
450 |
Y/2 -122 |
|||
| 11040050 - ISONE2.1 450X250 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
250 |
450 |
Y/2 -122 |
|||
| 11040051 - ISONE2.1 450X300 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
300 |
450 |
Y/2 -122 |
|||
| 11040052 - ISONE2.1 500X200 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
200 |
500 |
Y/2 -122 |
|||
| 11040053 - ISONE2.1 500X250 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
250 |
500 |
Y/2 -122 |
|||
| 11040054 - ISONE2.1 500X300 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
300 |
500 |
Y/2 -122 |
|||
| 11040055 - ISONE2.1 550X200 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
200 |
550 |
Y/2 -122 |
|||
| 11040056 - ISONE2.1 550X250 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
250 |
550 |
Y/2 -122 |
|||
| 11040057 - ISONE2.1 550X300 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
300 |
550 |
Y/2 -122 |
|||
| 11040058 - ISONE2.1 600X200 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
200 |
600 |
Y/2 -122 |
|||
| 11040059 - ISONE2.1 600X250 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
250 |
600 |
Y/2 -122 |
|||
| 11040060 - ISONE2.1 600X300 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
300 |
600 |
Y/2 -122 |
|||
| 11040061 - ISONE2.1 300X150 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
150 |
300 |
Y/2 -122 |
|||
| 11040062 - ISONE2.1 350X350 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
350 |
350 |
Y/2 -122 |
|||
| 11040063 - ISONE2.1 400X400 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
400 |
400 |
Y/2 -122 |
|||
| 11040064 - ISONE2.1 500X500 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
500 |
500 |
Y/2 -122 |
|||
| 11040065 - ISONE2.1 600X600 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
600 |
600 |
Y/2 -122 |
|||
| 11040066 - ISONE2.1 500X400 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
400 |
500 |
Y/2 -122 |
|||
| 11040067 - ISONE2.1 600X400 FTE70 DECLENCHEUR MANU | 25 |
169 |
71 |
400 |
600 |
Y/2 -122 |
|||
| 11040068 - ISONE200X200 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
200 |
200 |
Y/2 -122 |
|||
| 11040069 - ISONE200X250 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
250 |
250 |
Y/2 -122 |
|||
| 11040070 - ISONE200X300 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
300 |
300 |
Y/2 -122 |
|||
| 11040071 - ISONE250X200 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
200 |
200 |
Y/2 -122 |
|||
| 11040072 - ISONE250X250 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
250 |
250 |
Y/2 -122 |
|||
| 11040073 - ISONE250X300 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
300 |
300 |
Y/2 -122 |
|||
| 11040074 - ISONE300X200 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
200 |
200 |
Y/2 -122 |
|||
| 11040075 - ISONE300X250 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
250 |
250 |
Y/2 -122 |
|||
| 11040076 - ISONE300X300 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
300 |
300 |
Y/2 -122 |
|||
| 11040077 - ISONE350X200 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
200 |
200 |
Y/2 -122 |
|||
| 11040078 - ISONE350X250 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
250 |
250 |
Y/2 -122 |
|||
| 11040079 - ISONE350X300 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
300 |
300 |
Y/2 -122 |
|||
| 11040080 - ISONE400X200 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
200 |
200 |
Y/2 -122 |
|||
| 11040081 - ISONE400X250 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
250 |
250 |
Y/2 -122 |
|||
| 11040082 - ISONE400X300 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
300 |
300 |
Y/2 -122 |
|||
| 11040083 - ISONE450X200 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
200 |
200 |
Y/2 -122 |
|||
| 11040084 - ISONE450X250 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
250 |
250 |
Y/2 -122 |
|||
| 11040085 - ISONE450X300 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
300 |
300 |
Y/2 -122 |
|||
| 11040086 - ISONE500X200 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
200 |
200 |
Y/2 -122 |
|||
| 11040087 - ISONE500X250 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
250 |
250 |
Y/2 -122 |
|||
| 11040088 - ISONE500X300 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
300 |
300 |
Y/2 -122 |
|||
| 11040089 - ISONE550X200 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
200 |
200 |
Y/2 -122 |
|||
| 11040090 - ISONE550X250 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
250 |
250 |
Y/2 -122 |
|||
| 11040091 - ISONE550X300 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
300 |
300 |
Y/2 -122 |
|||
| 11040092 - ISONE600X200 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
200 |
200 |
Y/2 -122 |
|||
| 11040093 - ISONE600X250 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
250 |
250 |
Y/2 -122 |
|||
| 11040094 - ISONE600X300 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
300 |
300 |
Y/2 -122 |
|||
| 11040095 - ISONE300X150 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
150 |
150 |
Y/2 -122 |
|||
| 11040096 - ISONE350X350 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
350 |
350 |
Y/2 -122 |
|||
| 11040097 - ISONE400X400 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
400 |
400 |
Y/2 -122 |
|||
| 11040098 - ISONE500X500 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
500 |
500 |
Y/2 -122 |
|||
| 11040099 - ISONE600X600 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
600 |
600 |
Y/2 -122 |
|||
| 11040100 - ISONE500X400 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
400 |
400 |
Y/2 -122 |
|||
| 11040101 - ISONE600X400 FTE70+VDS24/48+FDCU1/2+EHOP | 25 |
169 |
71 |
400 |
400 |
Y/2 -122 |
|||
| 11040102 - ISONE2.1 200X200 FTE70+FDCU1/2 | 25 |
169 |
71 |
200 |
200 |
Y/2 -122 |
|||
| 11040103 - ISONE2.1 200X250 FTE70+FDCU1/2 | 25 |
169 |
71 |
250 |
200 |
Y/2 -122 |
|||
| 11040104 - ISONE2.1 200X300 FTE70+FDCU1/2 | 25 |
169 |
71 |
300 |
200 |
Y/2 -122 |
|||
| 11040105 - ISONE2.1 250X200 FTE70+FDCU1/2 | 25 |
169 |
71 |
200 |
250 |
Y/2 -122 |
|||
| 11040106 - ISONE2.1 250X250 FTE70+FDCU1/2 | 25 |
169 |
71 |
250 |
250 |
Y/2 -122 |
|||
| 11040107 - ISONE2.1 250X300 FTE70+FDCU1/2 | 25 |
169 |
71 |
300 |
250 |
Y/2 -122 |
|||
| 11040108 - ISONE2.1 300X200 FTE70+FDCU1/2 | 25 |
169 |
71 |
200 |
300 |
Y/2 -122 |
|||
| 11040109 - ISONE2.1 300X250 FTE70+FDCU1/2 | 25 |
169 |
71 |
250 |
300 |
Y/2 -122 |
|||
| 11040110 - ISONE2.1 300X300 FTE70+FDCU1/2 | 25 |
169 |
71 |
300 |
300 |
Y/2 -122 |
|||
| 11040111 - ISONE2.1 350X200 FTE70+FDCU1/2 | 25 |
169 |
71 |
200 |
350 |
Y/2 -122 |
|||
| 11040112 - ISONE2.1 350X250 FTE70+FDCU1/2 | 25 |
169 |
71 |
250 |
350 |
Y/2 -122 |
|||
| 11040113 - ISONE2.1 350X300 FTE70+FDCU1/2 | 25 |
169 |
71 |
300 |
350 |
Y/2 -122 |
|||
| 11040114 - ISONE2.1 400X200 FTE70+FDCU1/2 | 25 |
169 |
71 |
200 |
400 |
Y/2 -122 |
|||
| 11040115 - ISONE2.1 400X250 FTE70+FDCU1/2 | 25 |
169 |
71 |
250 |
400 |
Y/2 -122 |
|||
| 11040116 - ISONE2.1 400X300 FTE70+FDCU1/2 | 25 |
169 |
71 |
300 |
400 |
Y/2 -122 |
|||
| 11040117 - ISONE2.1 450X200 FTE70+FDCU1/2 | 25 |
169 |
71 |
200 |
450 |
Y/2 -122 |
|||
| 11040118 - ISONE2.1 450X250 FTE70+FDCU1/2 | 25 |
169 |
71 |
250 |
450 |
Y/2 -122 |
|||
| 11040119 - ISONE2.1 450X300 FTE70+FDCU1/2 | 25 |
169 |
71 |
300 |
450 |
Y/2 -122 |
|||
| 11040120 - ISONE2.1 500X200 FTE70+FDCU1/2 | 25 |
169 |
71 |
200 |
500 |
Y/2 -122 |
|||
| 11040121 - ISONE2.1 500X250 FTE70+FDCU1/2 | 25 |
169 |
71 |
250 |
500 |
Y/2 -122 |
|||
| 11040122 - ISONE2.1 500X300 FTE70+FDCU1/2 | 25 |
169 |
71 |
300 |
500 |
Y/2 -122 |
|||
| 11040123 - ISONE2.1 550X200 FTE70+FDCU1/2 | 25 |
169 |
71 |
200 |
550 |
Y/2 -122 |
|||
| 11040124 - ISONE2.1 550X250 FTE70+FDCU1/2 | 25 |
169 |
71 |
250 |
550 |
Y/2 -122 |
|||
| 11040125 - ISONE2.1 550X300 FTE70+FDCU1/2 | 25 |
169 |
71 |
300 |
550 |
Y/2 -122 |
|||
| 11040126 - ISONE2.1 600X200 FTE70+FDCU1/2 | 25 |
169 |
71 |
200 |
600 |
Y/2 -122 |
|||
| 11040127 - ISONE2.1 600X250 FTE70+FDCU1/2 | 25 |
169 |
71 |
250 |
600 |
Y/2 -122 |
|||
| 11040128 - ISONE2.1 600X300 FTE70+FDCU1/2 | 25 |
169 |
71 |
300 |
600 |
Y/2 -122 |
|||
| 11040129 - ISONE2.1 300X150 FTE70+FDCU1/2 | 25 |
169 |
71 |
150 |
300 |
Y/2 -122 |
|||
| 11040130 - ISONE2.1 350X350 FTE70+FDCU1/2 | 25 |
169 |
71 |
350 |
350 |
Y/2 -122 |
|||
| 11040131 - ISONE2.1 400X400 FTE70+FDCU1/2 | 25 |
169 |
71 |
400 |
400 |
Y/2 -122 |
|||
| 11040132 - ISONE2.1 500X500 FTE70+FDCU1/2 | 25 |
169 |
71 |
500 |
500 |
Y/2 -122 |
|||
| 11040133 - ISONE2.1 600X600 FTE70+FDCU1/2 | 25 |
169 |
71 |
600 |
600 |
Y/2 -122 |
|||
| 11040134 - ISONE2.1 500X400 FTE70+FDCU1/2 | 25 |
169 |
71 |
400 |
500 |
Y/2 -122 |
|||
| 11040135 - ISONE2.1 600X400 FTE70+FDCU1/2 | 25 |
169 |
71 |
400 |
600 |
Y/2 -122 |
| Références | Perte de charge à 2 m/s (Pa) | Perte de charge à 4 m/s (Pa) | Perte de charge à 6 m/s (Pa) | Perte de charge à 8 m/s (Pa) | Perte de charge à 10 m/s (Pa) | Perte de charge à 12 m/s (Pa) |
|---|---|---|---|---|---|---|
| 11043146 - ISONE®2.1 FTE70 RECT PM | ||||||
| 11043147 - ISONE®2.1 FTE70 RECT GM | ||||||
| 11040000 - ISONE2.1 200X200 FTE70+FDCU1 | ||||||
| 11040001 - ISONE2.1 200X250 FTE70+FDCU1 | ||||||
| 11040002 - ISONE2.1 200X300 FTE70+FDCU1 | ||||||
| 11040003 - ISONE2.1 250X200 FTE70+FDCU1 | ||||||
| 11040004 - ISONE2.1 250X250 FTE70+FDCU1 | ||||||
| 11040005 - ISONE2.1 250X300 FTE70+FDCU1 | ||||||
| 11040006 - ISONE2.1 300X200 FTE70+FDCU1 | ||||||
| 11040007 - ISONE2.1 300X250 FTE70+FDCU1 | ||||||
| 11040008 - ISONE2.1 300X300 FTE70+FDCU1 | ||||||
| 11040009 - ISONE2.1 350X200 FTE70+FDCU1 | ||||||
| 11040010 - ISONE2.1 350X250 FTE70+FDCU1 | ||||||
| 11040011 - ISONE2.1 350X300 FTE70+FDCU1 | ||||||
| 11040012 - ISONE2.1 400X200 FTE70+FDCU1 | ||||||
| 11040013 - ISONE2.1 400X250 FTE70+FDCU1 | ||||||
| 11040014 - ISONE2.1 400X300 FTE70+FDCU1 | ||||||
| 11040015 - ISONE2.1 450X200 FTE70+FDCU1 | ||||||
| 11040016 - ISONE2.1 450X250 FTE70+FDCU1 | ||||||
| 11040017 - ISONE2.1 450X300 FTE70+FDCU1 | ||||||
| 11040018 - ISONE2.1 500X200 FTE70+FDCU1 | ||||||
| 11040019 - ISONE2.1 500X250 FTE70+FDCU1 | ||||||
| 11040020 - ISONE2.1 500X300 FTE70+FDCU1 | ||||||
| 11040021 - ISONE2.1 550X200 FTE70+FDCU1 | ||||||
| 11040022 - ISONE2.1 550X250 FTE70+FDCU1 | ||||||
| 11040023 - ISONE2.1 550X300 FTE70+FDCU1 | ||||||
| 11040024 - ISONE2.1 600X200 FTE70+FDCU1 | ||||||
| 11040025 - ISONE2.1 600X250 FTE70+FDCU1 | ||||||
| 11040026 - ISONE2.1 600X300 FTE70+FDCU1 | ||||||
| 11040027 - ISONE2.1 300X150 FTE70+FDCU1 | ||||||
| 11040028 - ISONE2.1 350X350 FTE70+FDCU1 | ||||||
| 11040029 - ISONE2.1 400X400 FTE70+FDCU1 | ||||||
| 11040030 - ISONE2.1 500X500 FTE70+FDCU1 | ||||||
| 11040031 - ISONE2.1 600X600 FTE70+FDCU1 | ||||||
| 11040032 - ISONE2.1 500X400 FTE70+FDCU1 | ||||||
| 11040033 - ISONE2.1 600X400 FTE70+FDCU1 | ||||||
| 11040034 - ISONE2.1 200X200 FTE70 DECLENCHEUR MANU | ||||||
| 11040035 - ISONE2.1 200X250 FTE70 DECLENCHEUR MANU | ||||||
| 11040036 - ISONE2.1 200X300 FTE70 DECLENCHEUR MANU | ||||||
| 11040037 - ISONE2.1 250X200 FTE70 DECLENCHEUR MANU | ||||||
| 11040038 - ISONE2.1 250X250 FTE70 DECLENCHEUR MANU | ||||||
| 11040039 - ISONE2.1 250X300 FTE70 DECLENCHEUR MANU | ||||||
| 11040040 - ISONE2.1 300X200 FTE70 DECLENCHEUR MANU | ||||||
| 11040041 - ISONE2.1 300X250 FTE70 DECLENCHEUR MANU | ||||||
| 11040042 - ISONE2.1 300X300 FTE70 DECLENCHEUR MANU | ||||||
| 11040043 - ISONE2.1 350X200 FTE70 DECLENCHEUR MANU | ||||||
| 11040044 - ISONE2.1 350X250 FTE70 DECLENCHEUR MANU | ||||||
| 11040045 - ISONE2.1 350X300 FTE70 DECLENCHEUR MANU | ||||||
| 11040046 - ISONE2.1 400X200 FTE70 DECLENCHEUR MANU | ||||||
| 11040047 - ISONE2.1 400X250 FTE70 DECLENCHEUR MANU | ||||||
| 11040048 - ISONE2.1 400X300 FTE70 DECLENCHEUR MANU | ||||||
| 11040049 - ISONE2.1 450X200 FTE70 DECLENCHEUR MANU | ||||||
| 11040050 - ISONE2.1 450X250 FTE70 DECLENCHEUR MANU | ||||||
| 11040051 - ISONE2.1 450X300 FTE70 DECLENCHEUR MANU | ||||||
| 11040052 - ISONE2.1 500X200 FTE70 DECLENCHEUR MANU | ||||||
| 11040053 - ISONE2.1 500X250 FTE70 DECLENCHEUR MANU | ||||||
| 11040054 - ISONE2.1 500X300 FTE70 DECLENCHEUR MANU | ||||||
| 11040055 - ISONE2.1 550X200 FTE70 DECLENCHEUR MANU | ||||||
| 11040056 - ISONE2.1 550X250 FTE70 DECLENCHEUR MANU | ||||||
| 11040057 - ISONE2.1 550X300 FTE70 DECLENCHEUR MANU | ||||||
| 11040058 - ISONE2.1 600X200 FTE70 DECLENCHEUR MANU | ||||||
| 11040059 - ISONE2.1 600X250 FTE70 DECLENCHEUR MANU | ||||||
| 11040060 - ISONE2.1 600X300 FTE70 DECLENCHEUR MANU | ||||||
| 11040061 - ISONE2.1 300X150 FTE70 DECLENCHEUR MANU | ||||||
| 11040062 - ISONE2.1 350X350 FTE70 DECLENCHEUR MANU | ||||||
| 11040063 - ISONE2.1 400X400 FTE70 DECLENCHEUR MANU | ||||||
| 11040064 - ISONE2.1 500X500 FTE70 DECLENCHEUR MANU | ||||||
| 11040065 - ISONE2.1 600X600 FTE70 DECLENCHEUR MANU | ||||||
| 11040066 - ISONE2.1 500X400 FTE70 DECLENCHEUR MANU | ||||||
| 11040067 - ISONE2.1 600X400 FTE70 DECLENCHEUR MANU | ||||||
| 11040068 - ISONE200X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040069 - ISONE200X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040070 - ISONE200X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040071 - ISONE250X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040072 - ISONE250X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040073 - ISONE250X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040074 - ISONE300X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040075 - ISONE300X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040076 - ISONE300X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040077 - ISONE350X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040078 - ISONE350X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040079 - ISONE350X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040080 - ISONE400X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040081 - ISONE400X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040082 - ISONE400X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040083 - ISONE450X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040084 - ISONE450X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040085 - ISONE450X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040086 - ISONE500X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040087 - ISONE500X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040088 - ISONE500X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040089 - ISONE550X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040090 - ISONE550X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040091 - ISONE550X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040092 - ISONE600X200 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040093 - ISONE600X250 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040094 - ISONE600X300 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040095 - ISONE300X150 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040096 - ISONE350X350 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040097 - ISONE400X400 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040098 - ISONE500X500 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040099 - ISONE600X600 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040100 - ISONE500X400 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040101 - ISONE600X400 FTE70+VDS24/48+FDCU1/2+EHOP | ||||||
| 11040102 - ISONE2.1 200X200 FTE70+FDCU1/2 | ||||||
| 11040103 - ISONE2.1 200X250 FTE70+FDCU1/2 | ||||||
| 11040104 - ISONE2.1 200X300 FTE70+FDCU1/2 | ||||||
| 11040105 - ISONE2.1 250X200 FTE70+FDCU1/2 | ||||||
| 11040106 - ISONE2.1 250X250 FTE70+FDCU1/2 | ||||||
| 11040107 - ISONE2.1 250X300 FTE70+FDCU1/2 | ||||||
| 11040108 - ISONE2.1 300X200 FTE70+FDCU1/2 | ||||||
| 11040109 - ISONE2.1 300X250 FTE70+FDCU1/2 | ||||||
| 11040110 - ISONE2.1 300X300 FTE70+FDCU1/2 | ||||||
| 11040111 - ISONE2.1 350X200 FTE70+FDCU1/2 | ||||||
| 11040112 - ISONE2.1 350X250 FTE70+FDCU1/2 | ||||||
| 11040113 - ISONE2.1 350X300 FTE70+FDCU1/2 | ||||||
| 11040114 - ISONE2.1 400X200 FTE70+FDCU1/2 | ||||||
| 11040115 - ISONE2.1 400X250 FTE70+FDCU1/2 | ||||||
| 11040116 - ISONE2.1 400X300 FTE70+FDCU1/2 | ||||||
| 11040117 - ISONE2.1 450X200 FTE70+FDCU1/2 | ||||||
| 11040118 - ISONE2.1 450X250 FTE70+FDCU1/2 | ||||||
| 11040119 - ISONE2.1 450X300 FTE70+FDCU1/2 | ||||||
| 11040120 - ISONE2.1 500X200 FTE70+FDCU1/2 | ||||||
| 11040121 - ISONE2.1 500X250 FTE70+FDCU1/2 | ||||||
| 11040122 - ISONE2.1 500X300 FTE70+FDCU1/2 | ||||||
| 11040123 - ISONE2.1 550X200 FTE70+FDCU1/2 | ||||||
| 11040124 - ISONE2.1 550X250 FTE70+FDCU1/2 | ||||||
| 11040125 - ISONE2.1 550X300 FTE70+FDCU1/2 | ||||||
| 11040126 - ISONE2.1 600X200 FTE70+FDCU1/2 | ||||||
| 11040127 - ISONE2.1 600X250 FTE70+FDCU1/2 | ||||||
| 11040128 - ISONE2.1 600X300 FTE70+FDCU1/2 | ||||||
| 11040129 - ISONE2.1 300X150 FTE70+FDCU1/2 | ||||||
| 11040130 - ISONE2.1 350X350 FTE70+FDCU1/2 | ||||||
| 11040131 - ISONE2.1 400X400 FTE70+FDCU1/2 | ||||||
| 11040132 - ISONE2.1 500X500 FTE70+FDCU1/2 | ||||||
| 11040133 - ISONE2.1 600X600 FTE70+FDCU1/2 | ||||||
| 11040134 - ISONE2.1 500X400 FTE70+FDCU1/2 | ||||||
| 11040135 - ISONE2.1 600X400 FTE70+FDCU1/2 |
- Numéro PV CE : 1812-CPR-1837
- 1: montage sur mur béton EI120
- 2: montage sur dalle béton EI120
- 3: montage sur cloison légère EI120 avec talons additionnels
- 4 : montage sur carreaux de plätre EI120 avec talons additionnels
- 5: montage sur cloison légère EI60 avec kit easyntall
Références produits et accessoires
Documents
Showing 1 - y of
document
-
ISONE®2.1 Documentation Technico-CommercialeDocumentations Technique & Commerciale15 Mo
-
ISONE®2.1 Textes de prescription détaillésTextes de Prescription439 Ko
-
ISONE®2.1 Rectangulaire - Certificat NF537Conformités224 Ko
-
ISONE® 2.1 Rectangulaire - Déclaration de Performance (DOP)Conformités112 Ko
-
ISONE®2.1 Rectangulaire - Rapport de Classement au FeuConformités2 Mo
-
ISONE®2 Rectangulaire - Profil Environnemental ProduitConformités1 Mo
-
ISONE® 2.1 Rectangulaire - NoticeNotices5 Mo
-
ISONE®2.1 Kits accessoires PM - Notice d'installationNotices1 Mo
-
ISONE®2.1 Kits accessoires GM - NoticeNotices191 Ko
2 logiciels
-
Plateforme logiciel métier de conception de projets de ventilation
