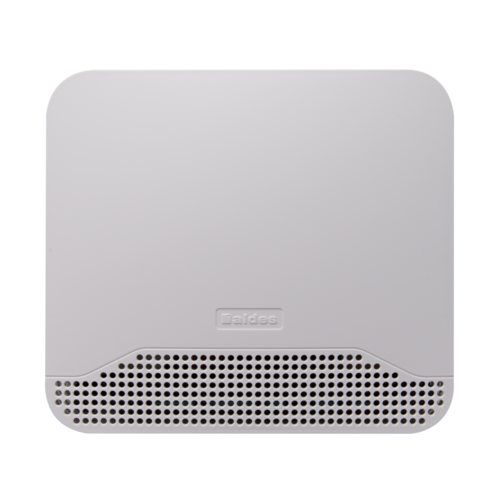

EHT is a humidity-controlled air inlet for wall penetrations in single-family dwellings and multi-occupancy buildings.
EHT
EHT delivers fresh air and distributes incoming airflow around the dwelling according to the humidity level.
The + products
- simple to install,
- high acoustic performance levels
- no visible fastening screws.
EHT is a sound-proofed humidity-controlled air inlet for wall penetrations in single-family dwellings and multi-occupancy buildings.
- sound-proofed humidity-controlled or fixed air inlet.
- installed in wall penetration
- EHT accessories available to improve acoustic performance
This product is also available as a fixed air inlet under the name EFT.
- The EHT must be installed in a wall penetration,
- EHT is installed on a circular sleeve,
- 100 mm or 125 mm diameter connection to Bath/shower PVC pipe
| References | Insulation material | Colour |
|---|---|---|
| 11014116 - EHT 6-44 | Lagoon blue |
|
| 11014118 - EFT 22 | ||
| 11014119 - EFT 30 | ||
| 11014120 - EFT 45 | ||
| 11014114 - EHTO 0-45 (fds) |
| References | H (mm) | w (mm) | L (mm) | Ø connection (mm) | DC_R_SECTION_(DATE) (cm²) |
|---|---|---|---|---|---|
| 11014116 - EHT 6-44 | 145 |
240 |
56 |
100 ; 125 |
04-31 |
| 11014118 - EFT 22 | |||||
| 11014119 - EFT 30 | |||||
| 11014120 - EFT 45 | |||||
| 11014114 - EHTO 0-45 (fds) |
| References | Airflow (m³/h) | Airflow range (m³/h) |
|---|---|---|
| 11014116 - EHT 6-44 | 6-44 |
|
| 11014118 - EFT 22 | 22 |
|
| 11014119 - EFT 30 | 30 |
|
| 11014120 - EFT 45 | 45 |
|
| 11014114 - EHTO 0-45 (fds) | 45 |
- Identification no. QB37 : 05/02-CHY1-2267; 05/02-CHY1-2266; 05/02-CHY2-2185
- Technical Opinion no. : 14.5/17-2266; 14.5/17-2267
- Eligibility for EEC : Yes
- ESC data sheet no. 1 : BAR-TH-127
