BAP'SI® TWIN
BAP'SI® TWIN
The BAP'SI TWIN terminal is ideal for the non-residential market - - it ensures a constant airflow whatever the conditions inside the dwelling. BAP’SI TWIN offers the benefit of covering a wide range of airflow options.
BAP'SI® TWIN

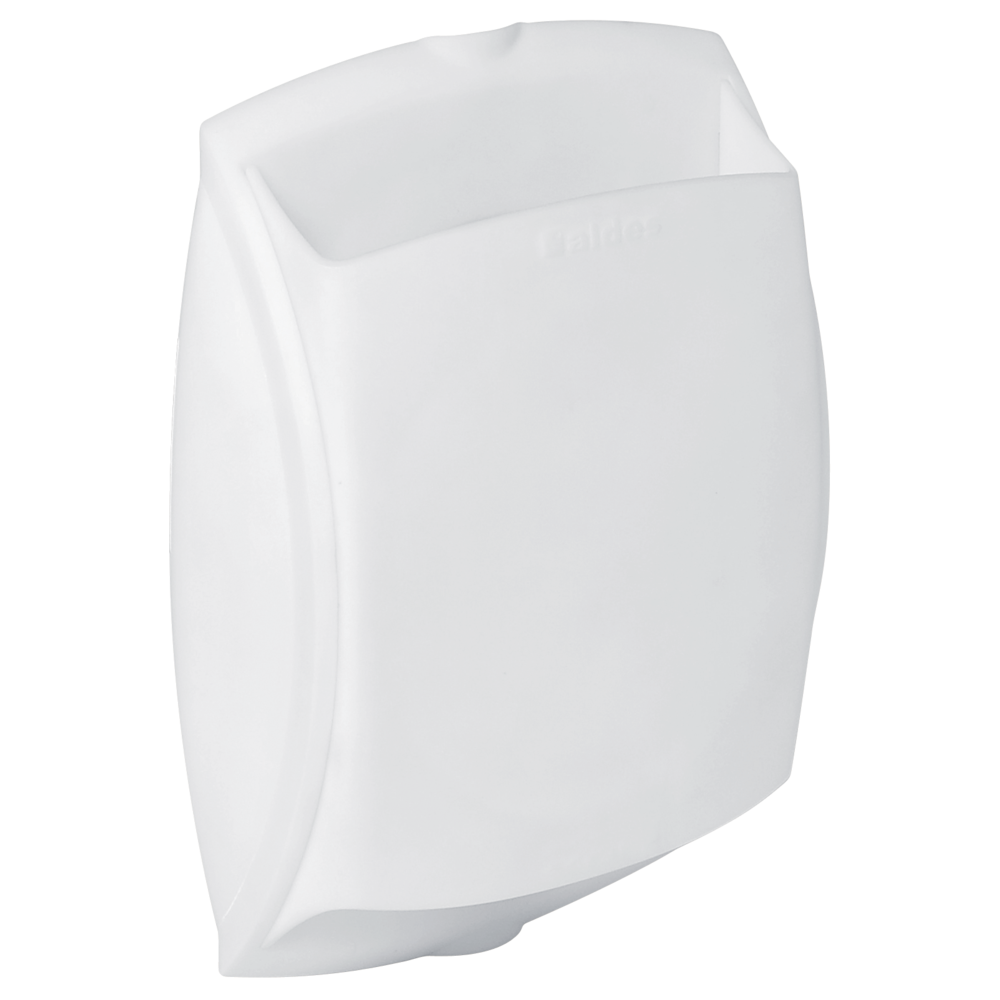

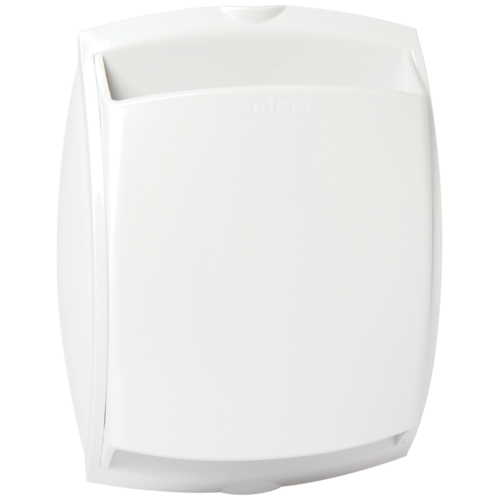

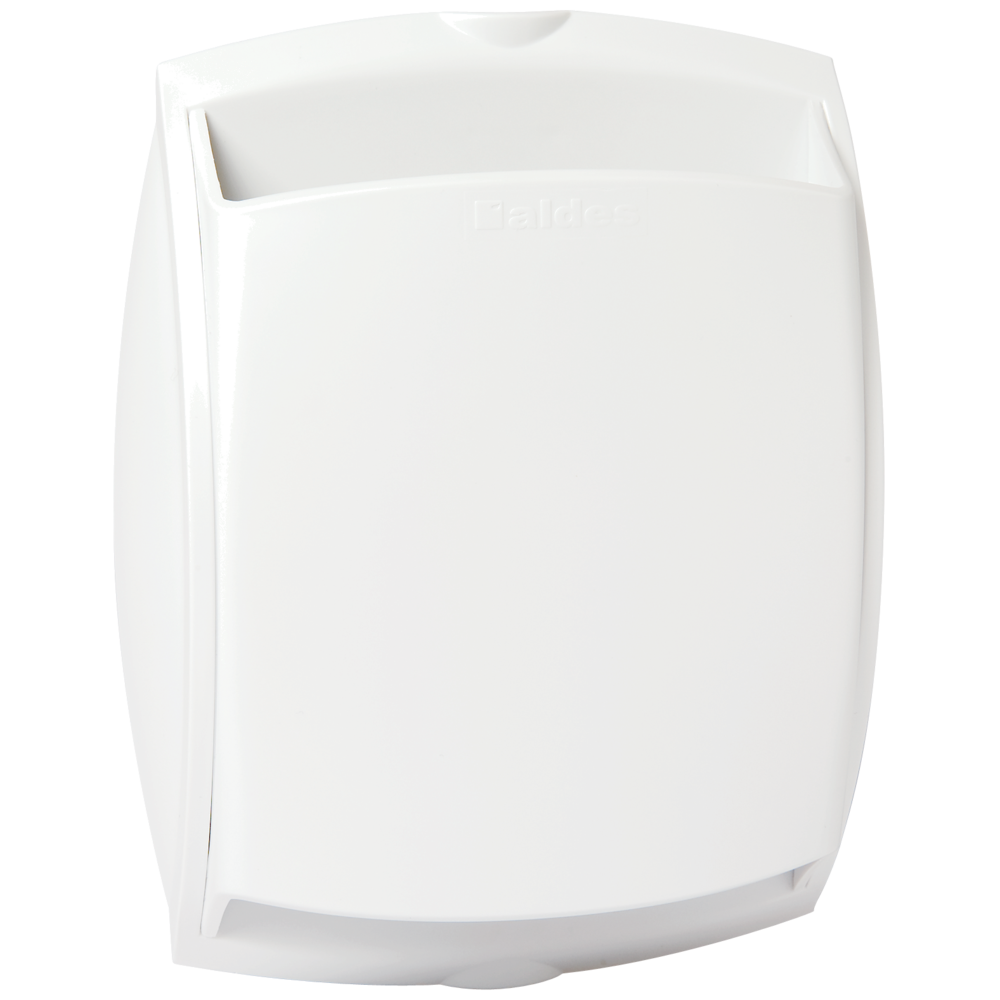

BAP’SI TWIN is a self-balanced fixed airflow extract terminal for the non-residential market, as well as new and refurbished multi-occupancy residential buildings. BAP’SI TWIN covers a full range of airflow settings from 15 to 150 m3/h.
The + products
- easy to install
- Roll-in seal
- air supply version: must be associated with an Aldes MR
- covers full range between 15 and 150 m3/h
- innovative design
- simple to clean
- modulo versions: limits product stocks.
In a self-balanced CMEV system, the airflow is constant whatever the ambient conditions or presence in rooms.
- Bap'SI TWIN air supply: terminal without controller, for use with an MR.
- innovative design, no grille,
- versions and accessories to meet all installation needs,
- modulo range: same terminal for several adjustable airflow settings,
- easy to clean: control sub-assembly quick to clip on and unclip,
- pressure range: 50 - 160 Pa.
- BAP'SI TWIN must be installed in humid rooms,
- the terminal must be installed at the top of a vertical wall or on the ceiling,
- the terminal must be accessible and removable,
- versions with shaft D 125 mm slots into sleeves, RT Flex, semi-rigid or rigid ducts. The Roll-in seal ensures air tightness and flush fitting against the wall.
- shaftless versions are clipped onto shafts D 125 mm, D 116 mm or D 100 mm. The terminal is screwed directly onto the wall or clipped onto a retrofit plate.
