The BAHIA CURVE L humidity-controlled terminal for kitchens ensures sufficient and constant extraction of indoor pollution according to the humidity level in the room.
BAHIA CURVE L Kitchen

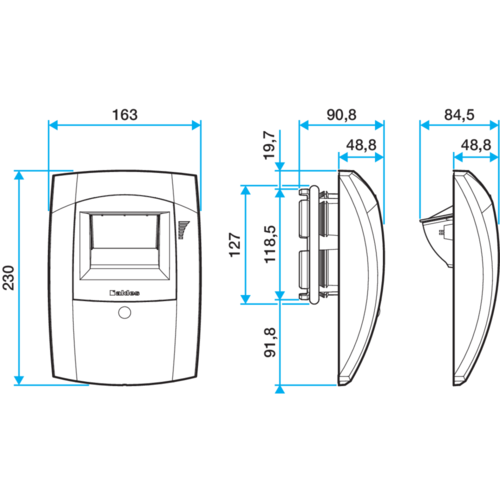

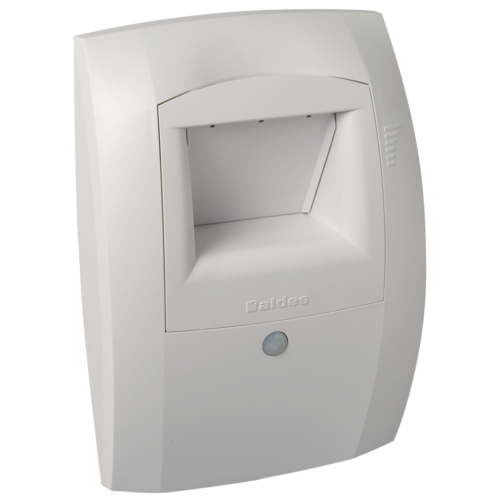

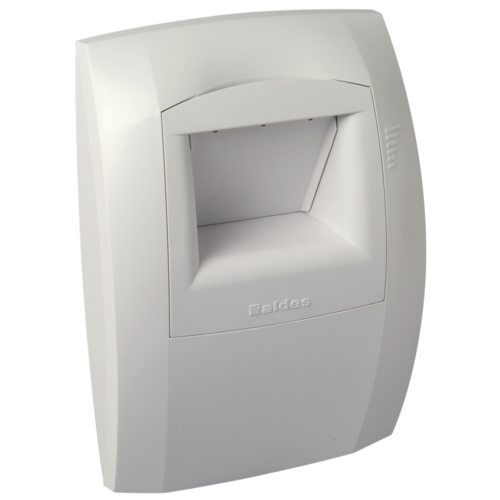

BAHIA CURVE L is a humidity-controlled extract terminal designed for kitchens in individual houses, new and refurbished multi-occupancy residential housing. This terminal is the large model for airflow needs > 50 m3/h.
The + products
- Unique no-grille design conserves the aesthetic character of the terminal even if it is clogged,
- easy to install,
- simple to clean.
- Roll-in seal
- single reference for battery-powered or 230 V mains power.
In a humidity-controlled CMEV system, the airflow is automatically controlled according to the humidity level in rooms and therefore based on the actual ventilation needs of the building. The BAHIA CURVE L terminal is installed in kitchens.
- Humidity-controlled terminal, large size (airflow > 50 m3/h),
- versions and accessories to meet all installation needs,
- easy maintenance: control sub-assembly quick to clip on and unclip, easy to clean without being removed from the wall thanks to its removable Bahia Curve casing.
- pressure range: 80 - 160 Pa.
- BAHIA CURVE L must be installed in a kitchen,
- the terminal must be located at the top of a vertical wall or on the ceiling at least 1.80 m from the floor,
- the terminal must be accessible and removable with a distance of at least 20 cm between the centre of the terminal and the adjacent walls and not glued to the duct,
- the air tightness of the terminal - duct connection must be optimal. This is achieved with O-ring seals and reinforced with a sleeve. A sheet metal sleeve is used for multi-occupancy housing (stainless steel sleeve required for a gas CMEV system). A plastic sleeve may be used for an individual house. The sleeves are slotted directly into: - a semi-rigid or rigid duct Ø 125 mm correctly shaped, a sheet metal sleeve Ø 125 mm (code 11012220),
- the terminal is slotted directly into: a sleeve, RT Flex, rigid or semi-rigid ducts. The airtight seal is created with O-ring seals and reinforced with a sleeve,
- versions with shaft D 80 mm, slots into sleeves, rigid and semi-rigid ducts,
- shaftless versions: clipped on Ø D 125 mm shaft (Roll-In seal), Ø 116 mm shaft (Roll-In seal) or Ø 100 mm shaft (foam seal),
- It is advisable to fix kitchen humidity-controlled terminals in place using two Ø 3.5 x 35 mm screws with Ø 6 x 35 mm plugs to prevent them from turning when boost setting is used.

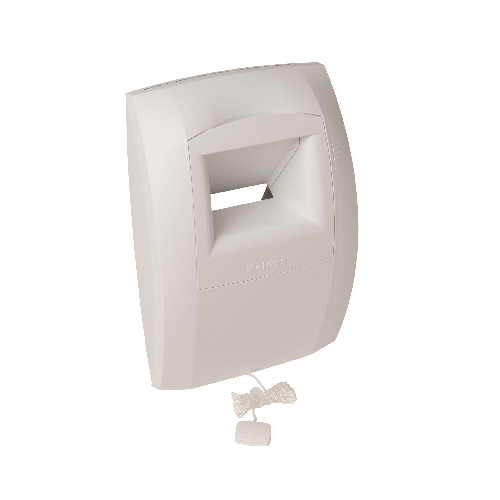

- If cord-operated grilles are installed in the ceiling or above a piece of furniture, use a cord return system (code 11015001).
- Note: For humidity-controlled terminals with electrical controls, a 9V alkaline battery type 6LR61 is required as well as a conventional push button (code 11026011),
- Humidity-controlled terminals operate within the 80-160 Pa pressure range,
- Extract terminals must be maintained and checked at least once a year. Never connect a mechanical extractor hood to the CMEV network (article 14 of Decision of 24 March 1982),
- Before replacing an old terminal with a new one, measure the pressure and identify the type of dwelling,
Insulation material | Colour |
---|---|
White |
References | Basic airflow (m³/h) | Boost airflow (m³/h) | Pressure range (Pa) |
---|---|---|---|
11015435 - C11 BAHIA® CURVE L 5-45/75 - Ø 125 mm | 5-45 |
75 |
80-160 |
11015436 - C12 BAHIA® CURVE 10-45/90 - Ø 125 mm | 10-45 |
90 |
80-160 |
11015437 - C13 BAHIA® CURVE 20-60/135 - Ø 125 mm | 20-60 |
135 |
80-160 |
11015438 - C14 BAHIA® CURVE 10-50/105 - Ø 125 mm | 10-50 |
105 |
80-160 |
11015439 - C15 BAHIA® CURVE 10-50/120 - Ø125 mm | 10-50 |
120 |
80-160 |
11017394 - C6 BAHIA CURVE L 15-56 D125 (fds ES) | 15-56 |
80-160 |
- QB-certified : Humidity-controlled exhaust terminals
- Identification no. QB37 : 05/02-CHY3-2266;05/02-CHY3-2267
- Technical Opinion no. : 14.5/17-2267;14.5/17-2266
- ESC data sheet no. 1 : BAR-TH-127
