AirFILTER®

AirFILTER®

AirFILTER® is a filtered air inlet containing a pollen filter to capture exterior pollutants.
AirFILTER®

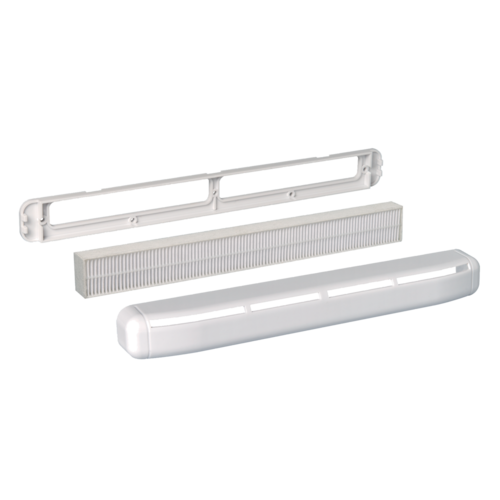

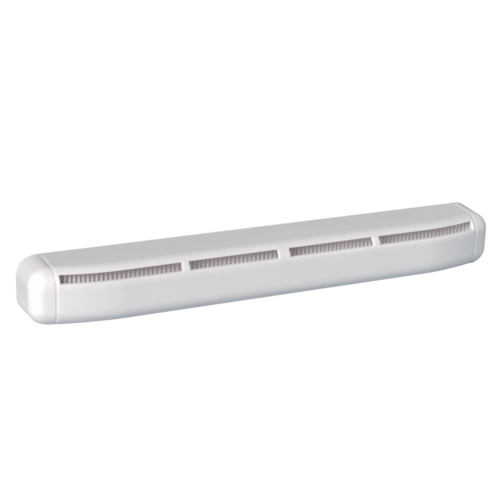

AirFILTER® is a filtered air inlet with a fixed airflow of 30 m³/h, for installation in joinery on a refurbishment project. AirFILTER® is fitted with a pollen filter which captures pollutants in incoming air for improved air quality.
Using a universal mounting base, it can be installed on any type of mortise with great ease, with the air jet oriented towards the ceiling.
AirFILTER®

The + products

  • optimal air quality due to pollen filter,
  • installed on all types of mortise,
  • easy to install,
  • airflow oriented to ceiling.

AirFILTER® is a fixed filtered air inlet for installation in woodwork. AirFILTER® has a pollen filter which captures exterior pollutants to ensure optimal air quality.

  • filtered air inlet for joinery,
  • works with EasyHOME® PureAIR Connect,
  • replace filters at least once a year (filter clogging indicated by the EasyHOME® PureAIR Connect app).
  • Regular inspection and maintenance of filters is recommended to ensure they do not impair ventilation system operation,
  • AirFILTER® is not recommended for installation on external walls requiring acoustic classification or installation in accordance with DTU 68.1 and 68.3 regulations,
  • Do not install AirFILTER® if there is a leaking combustion appliance in the house (log burner, fireplace, boiler, etc.).

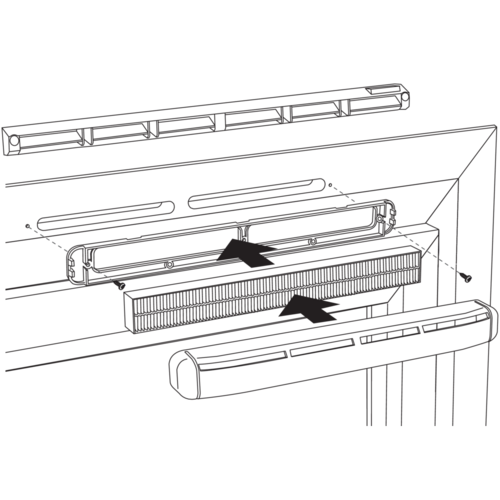

  • air inlets must only be mounted in the main rooms of the dwelling: bedrooms, living room, lounge, etc.
  • they must be installed inside dwellings, in the upper part of windows or on the vertical panel of a roller shutter box,
  • the incoming airflow must be oriented towards the ceiling,
  • can be installed on any type of mortise,
    • double slot 2 x (172 x 12) mm or
    • single slot (250 x 15) mm or (250 x 12) mm
Insulation material Type of filtration Colour

Pollen filter

Lagoon blue

AirFILTER®

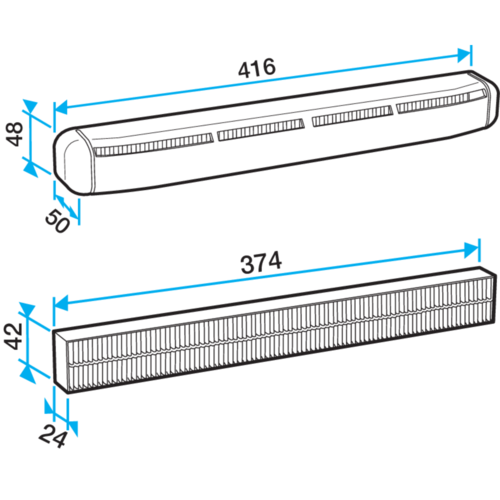

H (mm) w (mm) L (mm) Slot (mm)

48

50

416

2 x (172 x 12);(250 x 15);(250 x 12)

Airflow (m³/h)

30

Dnew (dB) Dnew (Ctr) with standard cover (dB)

34

34

Products and accessories references

  • AirFILTER® 30 m3/h - 34 dB - White
    AirFILTER® 30 m3/h - 34 dB - White
    11011581
    60,80 (without VAT)
  • AirFILTER® kit (AirFILTER®  air inlet + hood) 30 m3/h - 34 dB - White
    AirFILTER® kit (AirFILTER® air inlet + hood) 30 m3/h - 34 dB - White
    11011585
    67,00 (without VAT)

Documents

Showing 1 - y of document
  • AirFILTER® Installation & maintenance instructions
    Manuals
    155 KB
