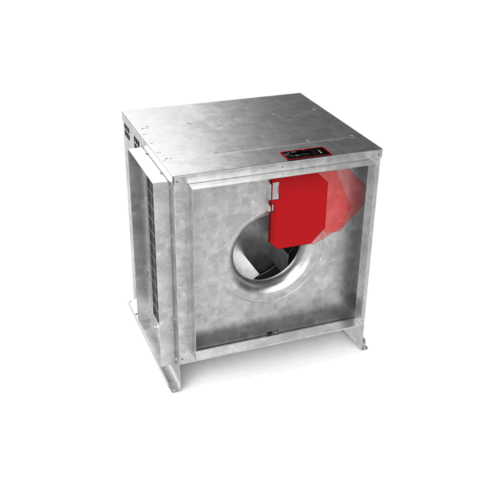

ProtectONE® R F400 120 : 1 speed

When commanded by the FACP, the safety box will activate ProtectONE® R in smoke exhaust mode to extract smoke. The box will then switch to “default” mode, then “standby”.

• complies with CE marking 1812-CPR-1181,
• certified EFECTIS F400-120 as per EN12101-3,
• free-wheel fan compliant with ErP 2018,
• airflow from 500 to 21,000 m³/h,
• class F electric motor IP55,
• 3-phase single-speed motor,

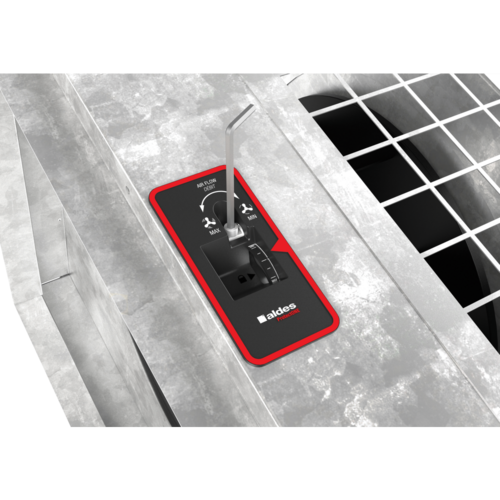

• built-in airflow adjustment device: ProtectONE® Adapt (patented), exclusive to ALDES (patented),
• centrifugal backward curve impeller coupled directly to motor,
• thermal insulation for installation in equipment room,
• 2 models: in-line output and 90° output.

• 10 unit sizes offering airflow rates from 500 to 21,000 m³/h:
  • ProtectONE® R2.0 to ProtectONE® R5.0: Size 1,
  • ProtectONE® R6.5 to ProtectONE® R9.0: Size 2,
  • ProtectONE® R10.0 to ProtectONE® R21.0: Size 3,
  • ProtectONE® R2.0 to ProtectONE® R5.0: Size 1 EL,
  • ProtectONE® R6.5 to ProtectONE® R9.0: Size 2 EL,
  • ProtectONE® R10.0 to ProtectONE® R21.0: Size 3 EL.
• available options:
  • “All-in-One” solution: includes safety box, switch and pressure switch,
  • variable pressure switch 100 - 1000 Pa (1 pressure switch for each smoke and heat exhaust speed),
  • choice of outlet position: LH/RH access on EL model,
  • thermal insulation for installation in equipment room.
• accessories:
  • square/circular adjustment plate for intake,
  • rain hood with anti-bird screen on outlet,
  • rectangular and circular flexible sleeve,
  • anti-vibration mountings,
  • non-return damper

• indoors or outdoors,
• indoor installation: use thermal-acoustic insulation option (EN 12101-3),
• outdoor installation: use rain hood + bird screen,
• proximity switch supplied fitted and wired, with position contacts.
